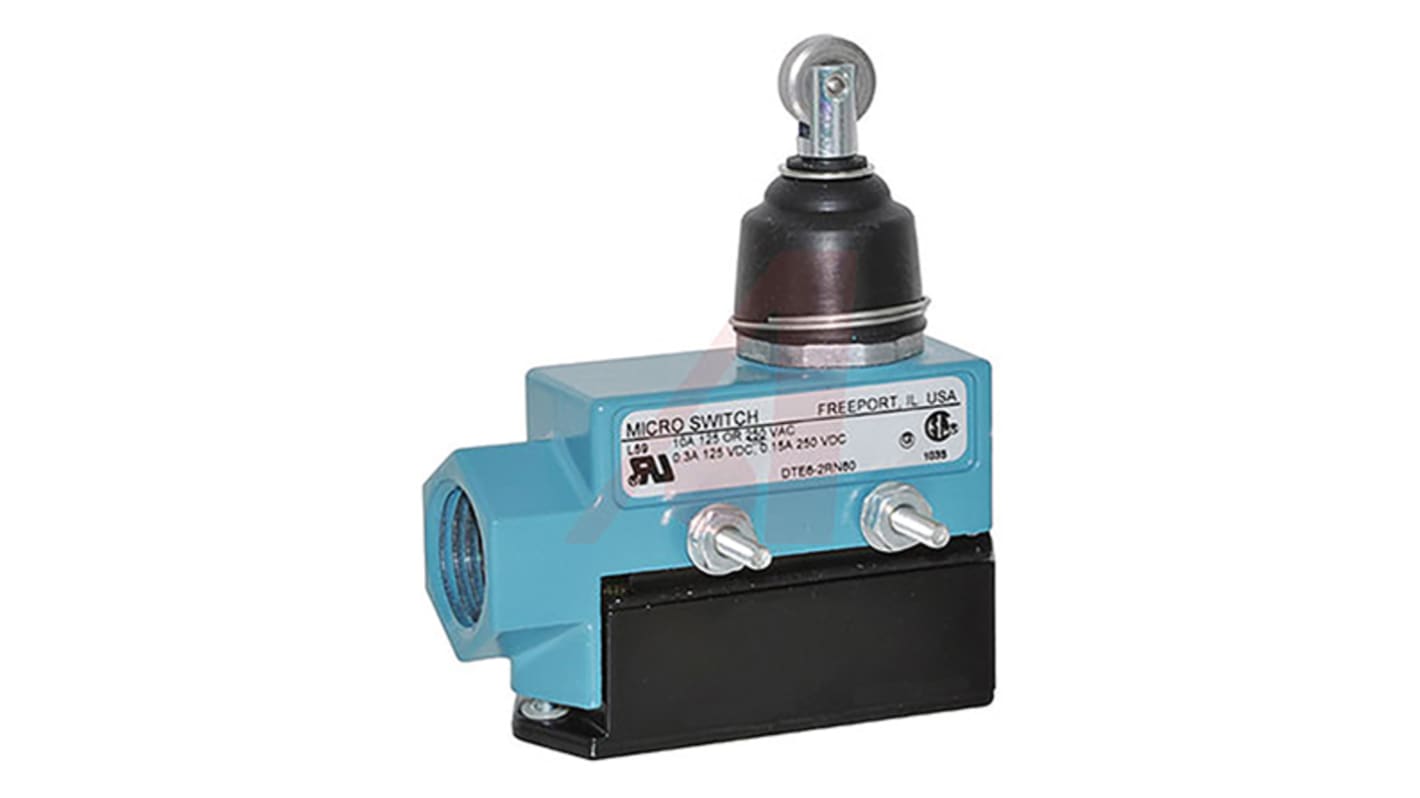

Honeywell Plunger Limit Switch, 2NO/2NC, IP66, DPDT, Die Cast Zinc Housing, 250V ac Max, 10A Max

View all Limit Switches
Discontinued

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Honeywell DTE6 Series Plunger Limit Switch, 2NO/2NC, IP66, DPDT, Die Cast Zinc Housing, 250V ac Max, 10A Max
RS Stock No.
808-7572

Each

£234.46

(exc. VAT)

£281.35

(inc. VAT)

RS Stock No.:
808-7579
Mfr. Part No.:
DTE6-2RN80
Brand:
Honeywell
Find similar products by selecting one or more attributes.
Select all

Brand

Honeywell

Actuator Type

Plunger

Pole and Throw Configuration

DPDT

Normal State Configuration

2NO/2NC

IP Rating

IP66

Maximum Current

10A

Housing Material

Die Cast Zinc

Maximum AC Voltage

250V

Maximum DC Voltage

250V

Connection Type

1/2 in NPT

Action Type

Snap Action

Length

77.22mm

Minimum Operating Temperature

-32°C

Maximum Operating Temperature

+71°C

Depth

44.45mm

Width

25.4mm

Mounting Orientation

Vertical

COO (Country of Origin):
US

DTE6 Medium Duty Limit Switches


The DTE6 limit switch series from Honeywell is designed for use within a medium duty environment. This range of industrial limit switches are offered with or without actuator seal boots. Both have a combination insulator/seal cemented inside the bottom enclosure. Lead washers are used to seal the mounting holes on the DTE6 side mountable switches. Removal of the bottom enclosure exposes the terminals for easy wiring.

Side mount
Zinc die-cast housing

Approvals

UL, CSA.
