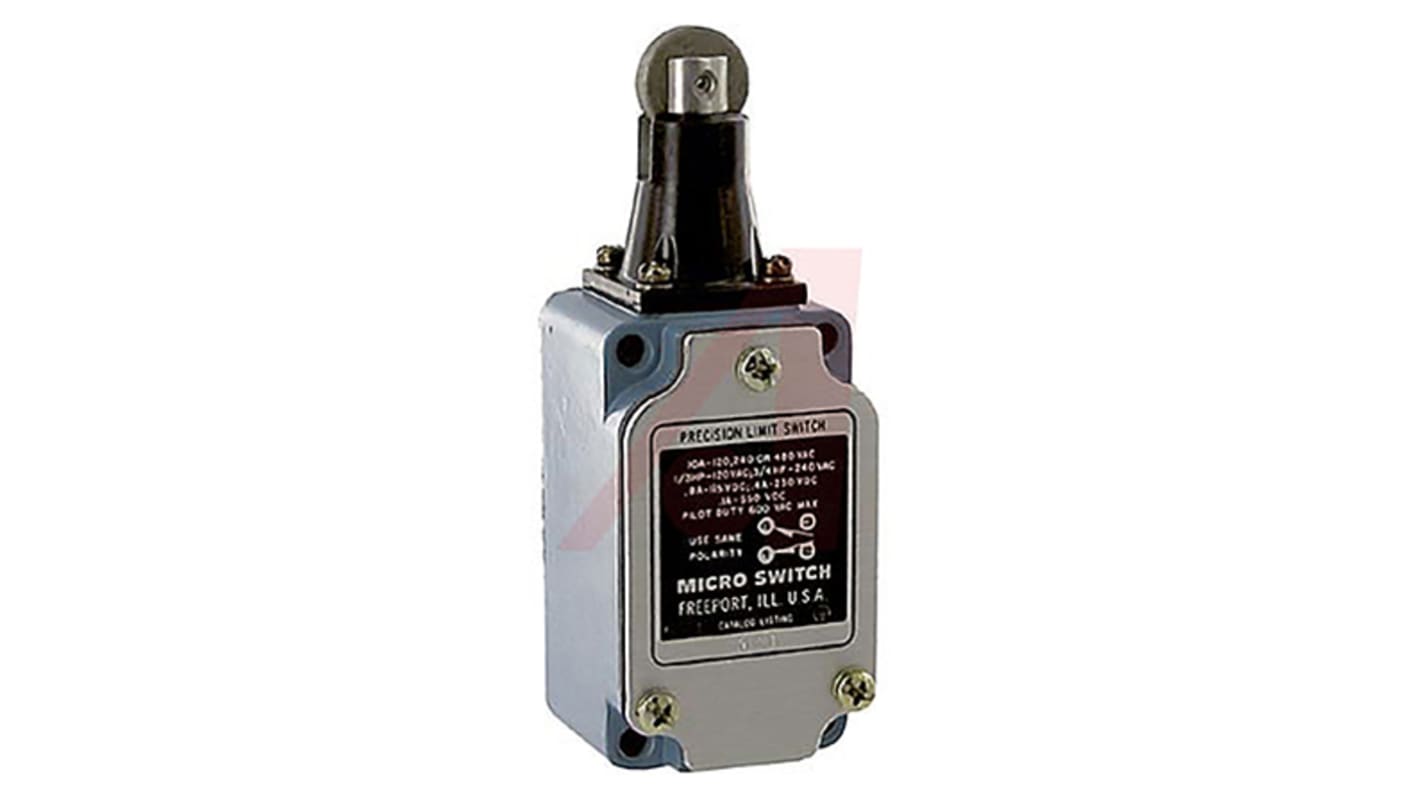

Honeywell Roller Plunger Limit Switch, 2NO/2NC, DPDT, Die Cast Zinc Housing, 480V ac Max, 10A Max
- RS Stock No.:
- 808-6939
- Mfr. Part No.:
- 5LS1
- Brand:
- Honeywell
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 808-6939
- Mfr. Part No.:
- 5LS1
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Actuator Type | Roller Plunger | |
| Pole and Throw Configuration | DPDT | |
| Normal State Configuration | 2NO/2NC | |
| Maximum Current | 10A | |
| Housing Material | Die Cast Zinc | |
| Maximum AC Voltage | 480V | |
| Maximum DC Voltage | 550V | |
| Connection Type | 1/2 in NPT | |
| Action Type | Snap Action | |
| Length | 39.9mm | |
| Depth | 68.6mm | |
| Width | 28.7mm | |
| Minimum Operating Temperature | -29°C | |
| Maximum Operating Temperature | +71°C | |
| Mounting Orientation | Vertical | |
Select all | ||
|---|---|---|
Brand Honeywell | ||
Actuator Type Roller Plunger | ||
Pole and Throw Configuration DPDT | ||
Normal State Configuration 2NO/2NC | ||
Maximum Current 10A | ||
Housing Material Die Cast Zinc | ||
Maximum AC Voltage 480V | ||
Maximum DC Voltage 550V | ||
Connection Type 1/2 in NPT | ||
Action Type Snap Action | ||
Length 39.9mm | ||
Depth 68.6mm | ||
Width 28.7mm | ||
Minimum Operating Temperature -29°C | ||
Maximum Operating Temperature +71°C | ||
Mounting Orientation Vertical | ||
- COO (Country of Origin):
- US
LS Medium Duty Limit Switches
The LS limit switch series from Honeywell has a long record of successful performance in industrial applications. The LS miicro switch fits in many places too small for any other dully adjustable limit switch. The 200LS switches are the original plug-in concept for reducing downtime by making changeover simple and fast.
Approvals
UL, CSA.
