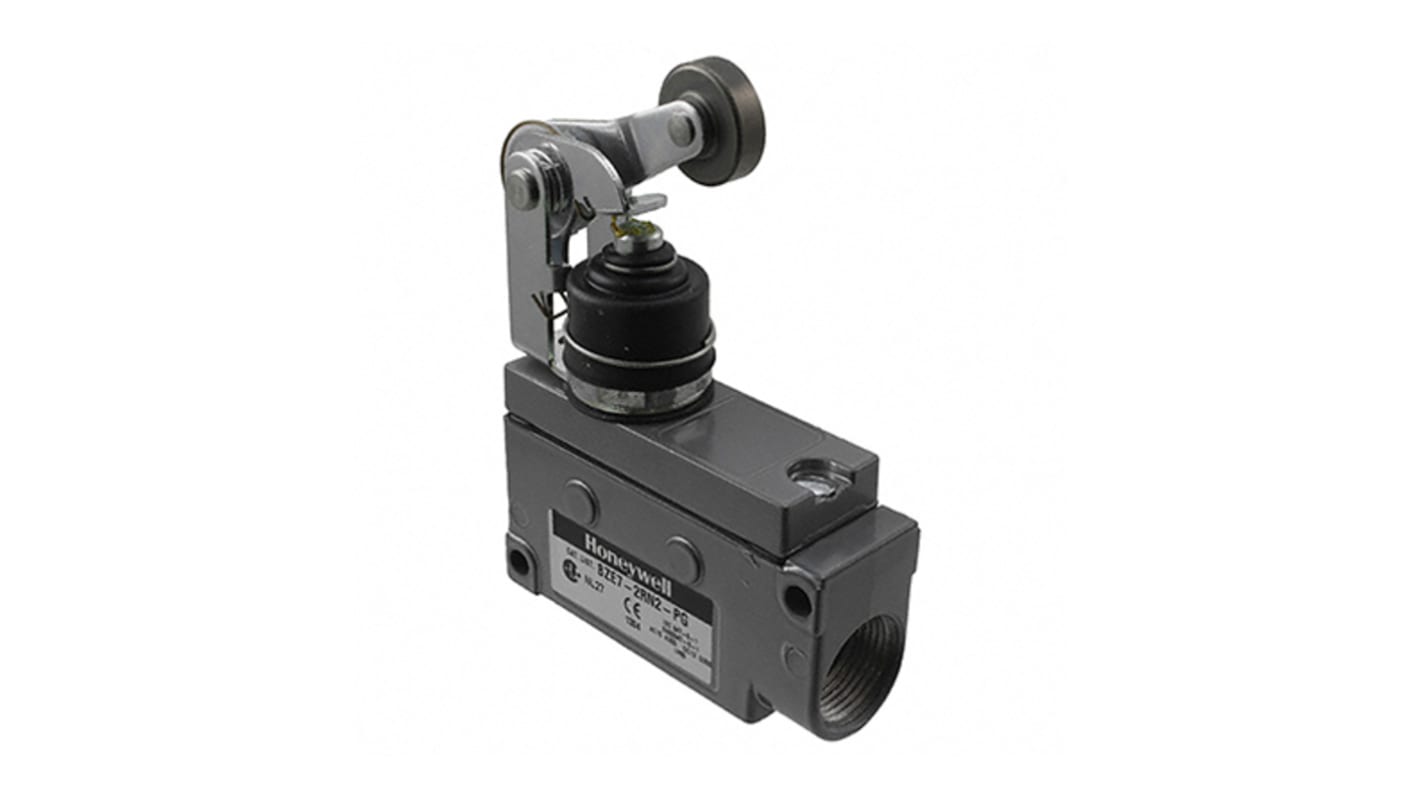

Honeywell BZE7 Series Limit Switch, NO/NC, IP66, SPDT, Die Cast Zinc Housing, 600V ac Max, 15A Max
- RS Stock No.:
- 808-2845
- Mfr. Part No.:
- BZE7-2RN2-PG
- Brand:
- Honeywell
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£48.69
(exc. VAT)
£58.43
(inc. VAT)
- RS Stock No.:
- 808-2845
- Mfr. Part No.:
- BZE7-2RN2-PG
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Pole and Throw Configuration | SPDT | |
| Normal State Configuration | NO/NC | |
| IP Rating | IP66 | |
| Maximum Current | 15A | |
| Housing Material | Die Cast Zinc | |
| Maximum AC Voltage | 600V | |
| Maximum DC Voltage | 250V | |
| Connection Type | 1/2 in NPT | |
| Series | BZE7 | |
| Action Type | Snap Action | |
| Length | 25.4mm | |
| Depth | 77.2mm | |
| Maximum Operating Temperature | +71°C | |
| Minimum Operating Temperature | -32°C | |
| Width | 44.4mm | |
| Mounting Orientation | Side | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Pole and Throw Configuration SPDT | ||
Normal State Configuration NO/NC | ||
IP Rating IP66 | ||
Maximum Current 15A | ||
Housing Material Die Cast Zinc | ||
Maximum AC Voltage 600V | ||
Maximum DC Voltage 250V | ||
Connection Type 1/2 in NPT | ||
Series BZE7 | ||
Action Type Snap Action | ||
Length 25.4mm | ||
Depth 77.2mm | ||
Maximum Operating Temperature +71°C | ||
Minimum Operating Temperature -32°C | ||
Width 44.4mm | ||
Mounting Orientation Side | ||
- COO (Country of Origin):
- GB
BZE7 Enclosed Limit Switches
The BZE7 series from Honeywell provides a range of rugged aluminium metal housed limit switches with a compact housing size, strong robust actuator and precise operation. The limit switch housing design integrates the principles of rugged construction, solid mounting, simple replacement and wiring. The BZE7 series also features reversible actuator facility and the ability to gang mount the switch units.
Rugged aluminium metal housing
Reversible actuator facility
Gang mountable switch units
Reversible actuator facility
Gang mountable switch units
Approvals
UL, CSA.
