- RS Stock No.:
- 799-8844
- Brand:
- RS PRO
7 In stock - FREE next working day delivery available
Added
Price Each
£320.14
(exc. VAT)
£384.17
(inc. VAT)
Units | Per unit |
1 + | £320.14 |
- RS Stock No.:
- 799-8844
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details

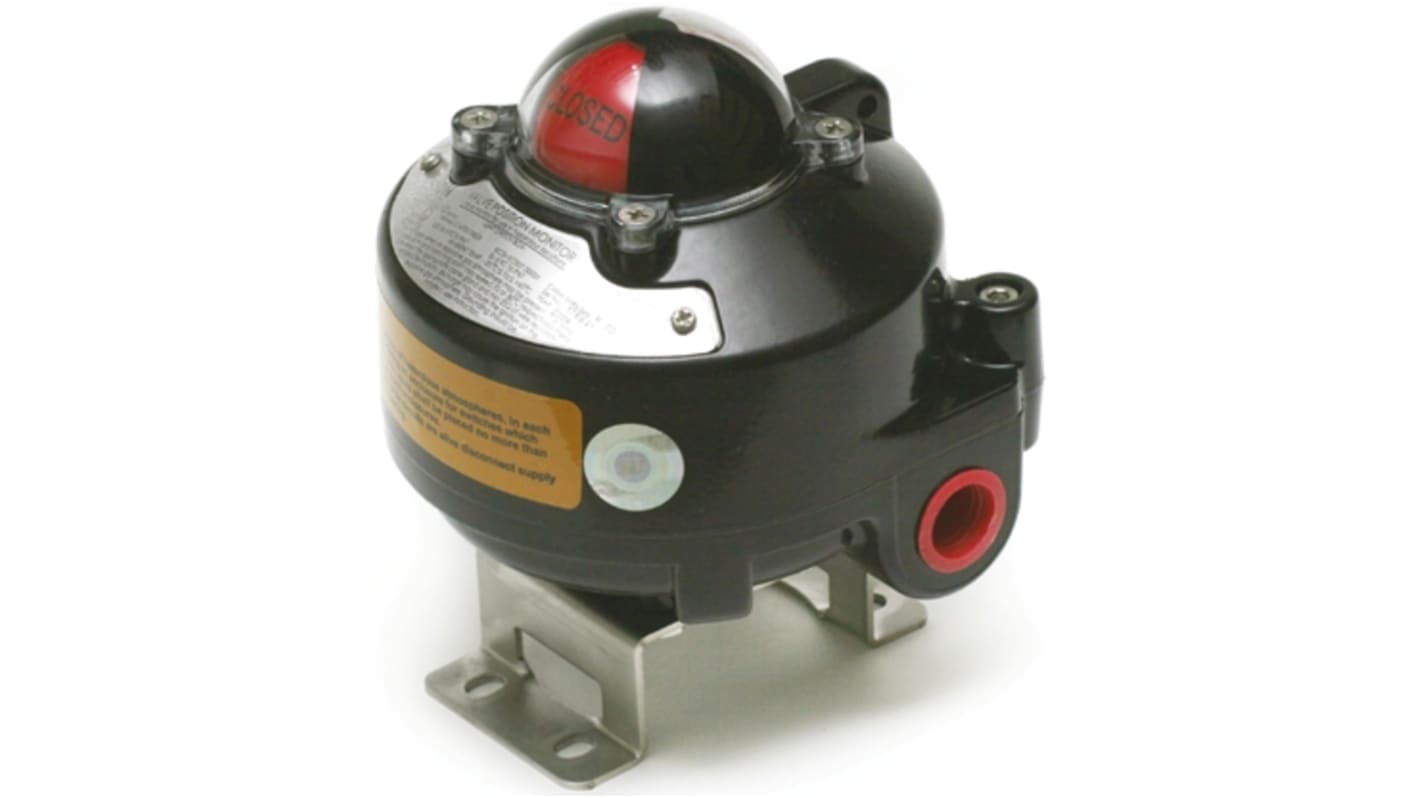

APL510N Switchbox
Powder coated aluminium switchbox rated to IP67 and fitted with 2 xSPDT switches for indication of fully open and fully closed positions.
Solid and compact design with high visibility beacon indicator.
Captive cover bolts are safely retained during installation and maintenance. A threaded screw down cover ensures IIC rating. The spring loaded splined cams are easily adjustable with no tools required.
Dual cable entries are provided
Solid and compact design with high visibility beacon indicator.
Captive cover bolts are safely retained during installation and maintenance. A threaded screw down cover ensures IIC rating. The spring loaded splined cams are easily adjustable with no tools required.
Dual cable entries are provided
Enclosure material: Die cast Aluminium
IP67 Rated
Enclosure finish: Polyester powder coating (Black)
Shaft material: Stainless steel
Cable entries: 2xM20 (options PG13.5 and 3/4in. NPT and M25)
Limit Switch type: 2 x SPDT, Mechanical
Sensor type: 2x P and F NJ2-V3-N Proximity sensors
Sensor rating: Atex IIG Eexia IIC T6
Voltage/Amps: 250Vac/16A, 125Vac/16A, 250Vdc/0.3A, 125Vdc/0.6A
Ambient temperature: -20゚→ +60゚ C
IP67 Rated
Enclosure finish: Polyester powder coating (Black)
Shaft material: Stainless steel
Cable entries: 2xM20 (options PG13.5 and 3/4in. NPT and M25)
Limit Switch type: 2 x SPDT, Mechanical
Sensor type: 2x P and F NJ2-V3-N Proximity sensors
Sensor rating: Atex IIG Eexia IIC T6
Voltage/Amps: 250Vac/16A, 125Vac/16A, 250Vdc/0.3A, 125Vdc/0.6A
Ambient temperature: -20゚→ +60゚ C
Specifications
Attribute | Value |
---|---|
IP Rating | IP67 |
Housing Material | Aluminium |
Connection Type | M20 |
Minimum Operating Temperature | -20°C |
Hazardous Area Certification | ATEX |
Maximum Operating Temperature | +80°C |
