SIRIUS 3SE5 Safety Switch With Round Plunger Actuator, NO/NC
- RS Stock No.:
- 755-7897
- Mfr. Part No.:
- 3SE5423-0CC22-1EA2
- Brand:
- Siemens

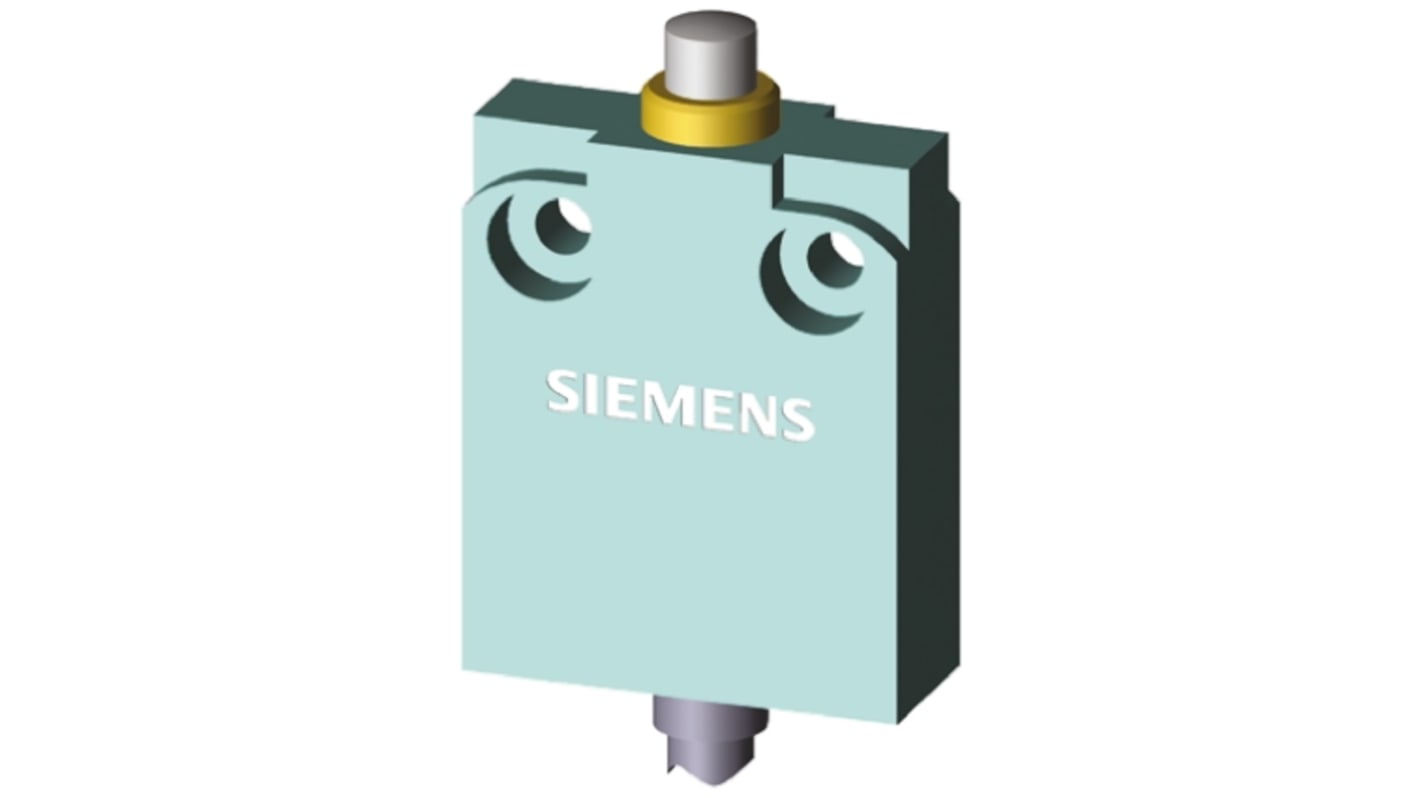

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 755-7897
- Mfr. Part No.:
- 3SE5423-0CC22-1EA2
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Actuator Type | Round Plunger | |
| Pole and Throw Configuration | DPST | |
| Normal State Configuration | NO/NC | |
| Connection Type | Cable | |
| Series | 3SE5 | |
| Length | 50mm | |
| Width | 40mm | |
| Depth | 16mm | |
| Mechanical Life | 30000000Cycles | |
| Mounting Orientation | Universal | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Actuator Type Round Plunger | ||
Pole and Throw Configuration DPST | ||
Normal State Configuration NO/NC | ||
Connection Type Cable | ||
Series 3SE5 | ||
Length 50mm | ||
Width 40mm | ||
Depth 16mm | ||
Mechanical Life 30000000Cycles | ||
Mounting Orientation Universal | ||
- COO (Country of Origin):
- DE
3SE5 Series Limit Switch, Compact Metal Enclosure
The 3SE5 4 series limit switch has a compact design and a metal enclosure making it deal for use in harsh environments or on equipment with limited space. The 3SE5 413 switch complies with the EU standard and features a 30mm wide enclosure with drilled holes at a spacing of 20mm, the 3SE5 423 switch meets the requirements of the US market and features a 40mm wide enclosure with drilled holes at a spacing of 25mm. Both types of the 3SE5 4 limit switch have a depth of only 16mm and a weight of 80g (without cable).
Metal enclosure and twist actuator
IP67 degree of protection
1 NO + 1 NC snap action contact arrangement (NC contact complies with the requirements for positive opening in accordance with IEC 60947-5-1)
Use in safety circuits up to Category 4 according to EN ISO 13849-1
Connection with 2m or 5m moulded cable or M12 connector socket
The actuators can be rotated in 90° increments
Time is saved when mounting the fully assembled unit
Insensitive to electromagnetic interference
IP67 degree of protection
1 NO + 1 NC snap action contact arrangement (NC contact complies with the requirements for positive opening in accordance with IEC 60947-5-1)
Use in safety circuits up to Category 4 according to EN ISO 13849-1
Connection with 2m or 5m moulded cable or M12 connector socket
The actuators can be rotated in 90° increments
Time is saved when mounting the fully assembled unit
Insensitive to electromagnetic interference
Standards
EN ISO 13849-1, IEC 60947-5-1
Safety Limit Switch
