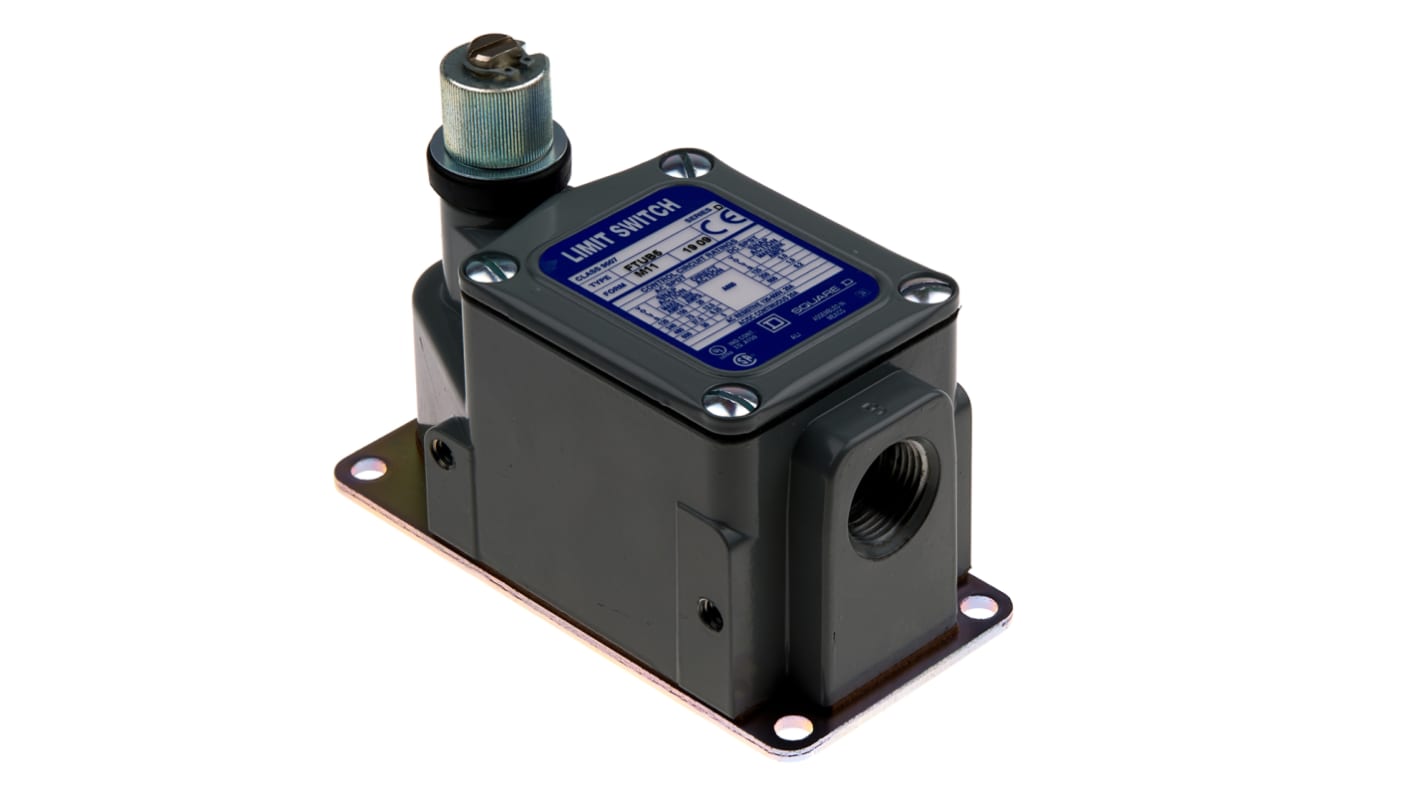

Telemecanique Sensors 9007 Series Roller Lever Limit Switch, SPDT, IP67, IP66, IP65, Die Cast Zinc Housing, 600V ac, 20A
- RS Stock No.:
- 752-8750
- Mfr. Part No.:
- 9007FTUB5M11
- Brand:
- Telemecanique Sensors
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 752-8750
- Mfr. Part No.:
- 9007FTUB5M11
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Product Type | Limit Switch | |
| Actuator Type | Roller Lever | |
| Contact Configuration | SPDT | |
| IP Rating | IP67, IP66, IP65 | |
| Housing Material | Die Cast Zinc | |
| Contact Type | Snap Action | |
| Switching Current | 20A | |
| Terminal Type | M20 | |
| Series | 9007 | |
| Switching DC Voltage | 600V dc | |
| Minimum Operating Temperature | -23°C | |
| Switching AC Voltage | 600V ac | |
| Maximum Operating Temperature | 85°C | |
| Width | 57.15mm | |
| Standards/Approvals | RoHS | |
| Length | 118.36mm | |
| Depth | 86.61mm | |
| Hazardous Area Certification | No | |
| Mounting Orientation | Side | |
| Mechanical Life | 10000000Cycles | |
| Conduit Entry | 20 mm | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Product Type Limit Switch | ||
Actuator Type Roller Lever | ||
Contact Configuration SPDT | ||
IP Rating IP67, IP66, IP65 | ||
Housing Material Die Cast Zinc | ||
Contact Type Snap Action | ||
Switching Current 20A | ||
Terminal Type M20 | ||
Series 9007 | ||
Switching DC Voltage 600V dc | ||
Minimum Operating Temperature -23°C | ||
Switching AC Voltage 600V ac | ||
Maximum Operating Temperature 85°C | ||
Width 57.15mm | ||
Standards/Approvals RoHS | ||
Length 118.36mm | ||
Depth 86.61mm | ||
Hazardous Area Certification No | ||
Mounting Orientation Side | ||
Mechanical Life 10000000Cycles | ||
Conduit Entry 20 mm | ||
Limit Switch Accessories
A range of accessories to fit the 9007 Series of products.
Approvals
UL, CSA
