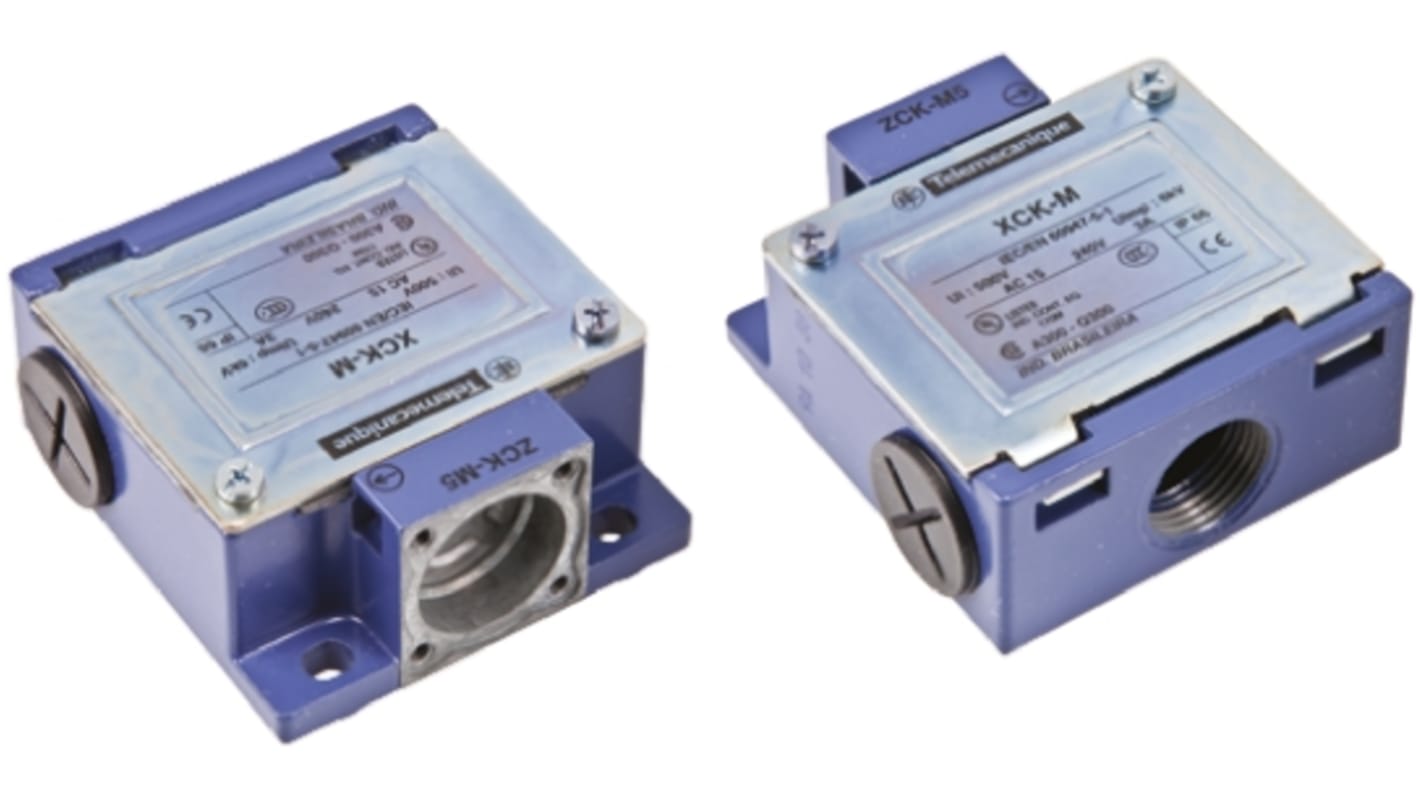

Telemecanique Sensors OsiSense XC Series Limit Switch, NO/NC, IP66, DP, Zinc Alloy Housing, 240V ac Max, 10A Max
- RS Stock No.:
- 700-4210
- Mfr. Part No.:
- ZCKM5
- Brand:
- Telemecanique Sensors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£37.37
(exc. VAT)
£44.84
(inc. VAT)
- RS Stock No.:
- 700-4210
- Mfr. Part No.:
- ZCKM5
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Pole and Throw Configuration | DP | |
| Normal State Configuration | NO/NC | |
| IP Rating | IP66 | |
| Maximum Current | 10A | |
| Housing Material | Zinc Alloy | |
| Maximum AC Voltage | 240V | |
| Maximum DC Voltage | 250V | |
| Connection Type | Cable | |
| Series | OsiSense XC | |
| Action Type | Slow Action | |
| Length | 64mm | |
| Depth | 30mm | |
| Width | 58.5mm | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Pole and Throw Configuration DP | ||
Normal State Configuration NO/NC | ||
IP Rating IP66 | ||
Maximum Current 10A | ||
Housing Material Zinc Alloy | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 250V | ||
Connection Type Cable | ||
Series OsiSense XC | ||
Action Type Slow Action | ||
Length 64mm | ||
Depth 30mm | ||
Width 58.5mm | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
OsiSwitch Limit Switch Bodies
The OsiSwitch series contains a selection of bodies and levers that are compatible with products from the OsiSense XC limit switch range.
Features & Benefits
Limit Switch Body
Silver plated contacts with snap action
2 Poles
Durable and strong housing
Short circuit protection
Silver plated contacts with snap action
2 Poles
Durable and strong housing
Short circuit protection
Product Application Information
All industrial machines: packaging, materials handling, conveying, machining, food and beverage, service sector.
