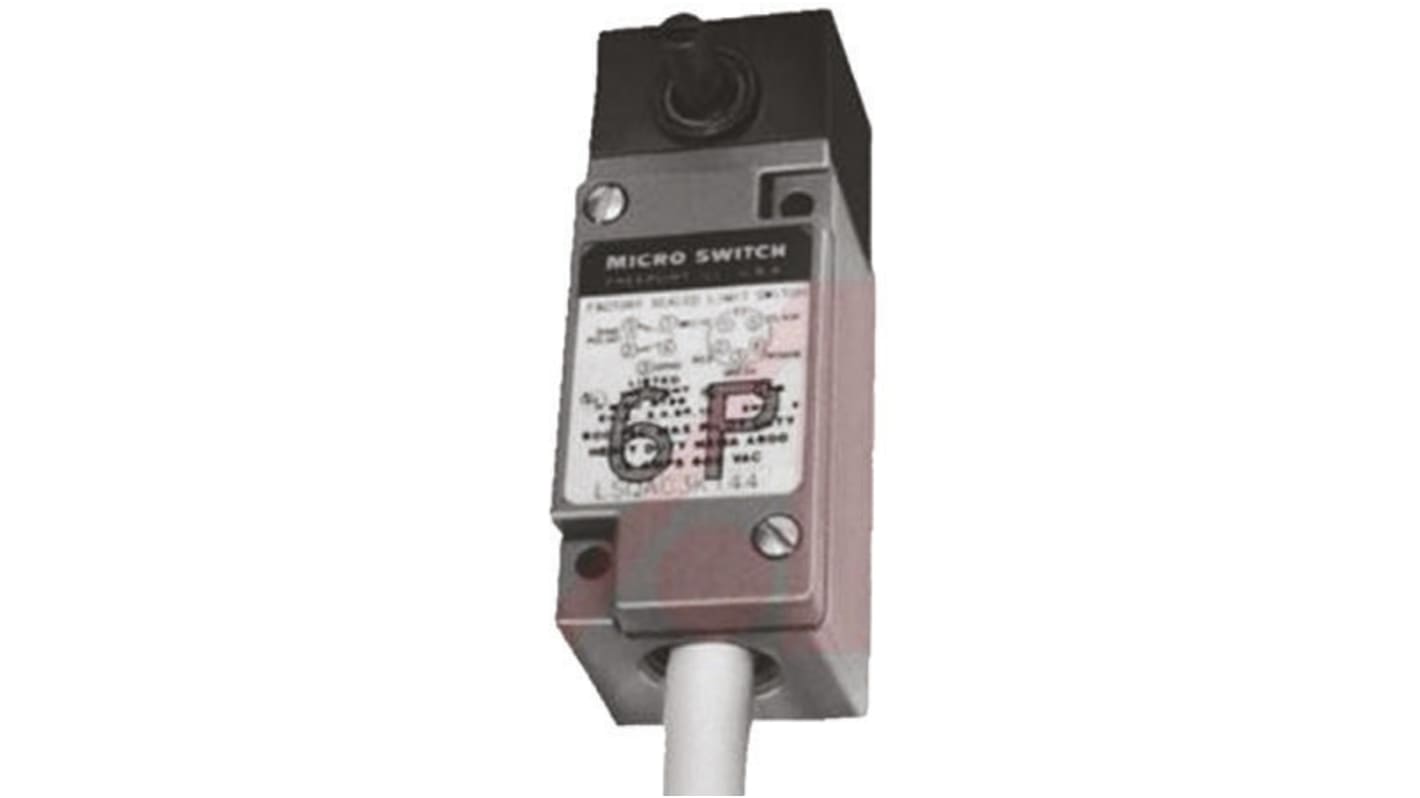

Honeywell HDLS Series Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 600V ac Max, 7A Max
- RS Stock No.:
- 691-7291
- Mfr. Part No.:
- LSYAC3KQ-FP
- Brand:
- Honeywell
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 691-7291
- Mfr. Part No.:
- LSYAC3KQ-FP
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Pole and Throw Configuration | SPDT | |
| Normal State Configuration | NO/NC | |
| IP Rating | IP67 | |
| Maximum Current | 7A | |
| Housing Material | Die Cast Zinc | |
| Maximum AC Voltage | 600V | |
| Maximum DC Voltage | 250V | |
| Series | HDLS | |
| Action Type | Snap Action | |
| Length | 106.42mm | |
| Depth | 2.43in | |
| Minimum Operating Temperature | -12°C | |
| Maximum Operating Temperature | +121°C | |
| Width | 1.62in | |
Select all | ||
|---|---|---|
Brand Honeywell | ||
Pole and Throw Configuration SPDT | ||
Normal State Configuration NO/NC | ||
IP Rating IP67 | ||
Maximum Current 7A | ||
Housing Material Die Cast Zinc | ||
Maximum AC Voltage 600V | ||
Maximum DC Voltage 250V | ||
Series HDLS | ||
Action Type Snap Action | ||
Length 106.42mm | ||
Depth 2.43in | ||
Minimum Operating Temperature -12°C | ||
Maximum Operating Temperature +121°C | ||
Width 1.62in | ||
- COO (Country of Origin):
- US
HDLS Series Limit Switch - Fully Potted
The fully potted HDLS provides an extra degree of protection in harsh environments by sealing the basic switch cavity with epoxy. These switches are the same as the non plug-in HDLS except that the entire switch cavity is filled with epoxy in addition to the conduit entrance, and the switches are preleaded, either with cable or connectors.
Excellent sealing capacity for withstanding harsh duty food and beverage wash downs or severe machine tool environments
10 A
Switch cavity epoxy filled
Extra diaphragm sealing
Operating heads can be rotating 90°
10 A
Switch cavity epoxy filled
Extra diaphragm sealing
Operating heads can be rotating 90°
Approvals
UL, CE, CSA, CCC
Approvals
UL, CSA.
