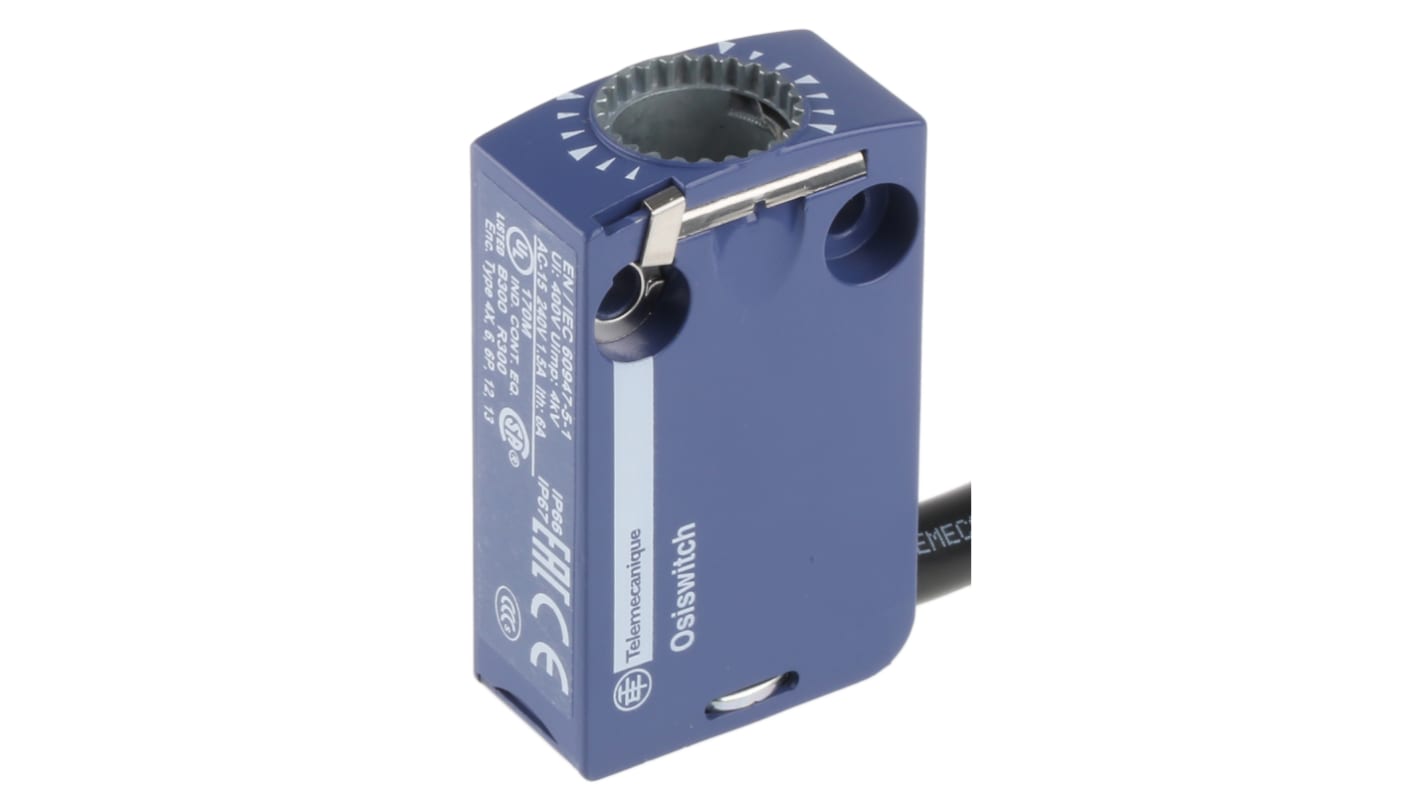

Telemecanique Sensors OsiSense XC Series Limit Switch, 1 NO/1 NC, IP66, Zinc Alloy Housing, 240V
- RS Stock No.:
- 609-3856
- Mfr. Part No.:
- ZCMD21L2
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£68.90
(exc. VAT)
£82.68
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 33 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
- Plus 40 unit(s) shipping from 01 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £68.90 |
*price indicative
- RS Stock No.:
- 609-3856
- Mfr. Part No.:
- ZCMD21L2
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Product Type | Limit Switch | |
| IP Rating | IP66 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Zinc Alloy | |
| Contact Type | Snap Action | |
| Terminal Type | Cable | |
| Series | OsiSense XC | |
| Switching DC Voltage | 120V dc | |
| Switching AC Voltage | 240V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 50mm | |
| Width | 30mm | |
| Standards/Approvals | UL, RoHS, REACH, IEC, CSA | |
| Depth | 16mm | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Product Type Limit Switch | ||
IP Rating IP66 | ||
Contact Configuration 1 NO/1 NC | ||
Housing Material Zinc Alloy | ||
Contact Type Snap Action | ||
Terminal Type Cable | ||
Series OsiSense XC | ||
Switching DC Voltage 120V dc | ||
Switching AC Voltage 240V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Length 50mm | ||
Width 30mm | ||
Standards/Approvals UL, RoHS, REACH, IEC, CSA | ||
Depth 16mm | ||
Hazardous Area Certification No | ||
Features & Benefits
Fixed body
Miniature design
2 m removable cable connection
OsiSwitch Limit Switch Bodies
The OsiSwitch series contains a selection of bodies and levers that are compatible with products from the OsiSense XC limit switch range.
Features & Benefits
Limit Switch Body
Silver plated contacts with snap action
2 Poles
Durable and strong housing
Short circuit protection
Product Application Information
All industrial machines: packaging, materials handling, conveying, machining, food and beverage, service sector.
