Eaton Limit Switch, Stainless Steel Housing, 400V

View all Limit Switches

Subtotal (1 pack of 10 units)*

£267.85

(exc. VAT)

£321.42

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship from another location
  • Plus 10 unit(s) shipping from 01 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£26.785£267.85

*price indicative

RS Stock No.:
276-6503
Mfr. Part No.:
106835 LS-XNW-ZBZ
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Product Type

Limit Switch

Housing Material

Stainless Steel

Series

Eaton Moeller

Minimum Operating Temperature

-25°C

Switching AC Voltage

400V

Maximum Operating Temperature

40°C

Depth

62mm

Width

31mm

Standards/Approvals

CE, UL 508, RoHS, IEC/EN 60947-5, IEC/EN 60947, CSA

Length

42mm

Hazardous Area Certification

NO

Mounting Orientation

Vertical

RoHS Status: Exempt

COO (Country of Origin):
DE

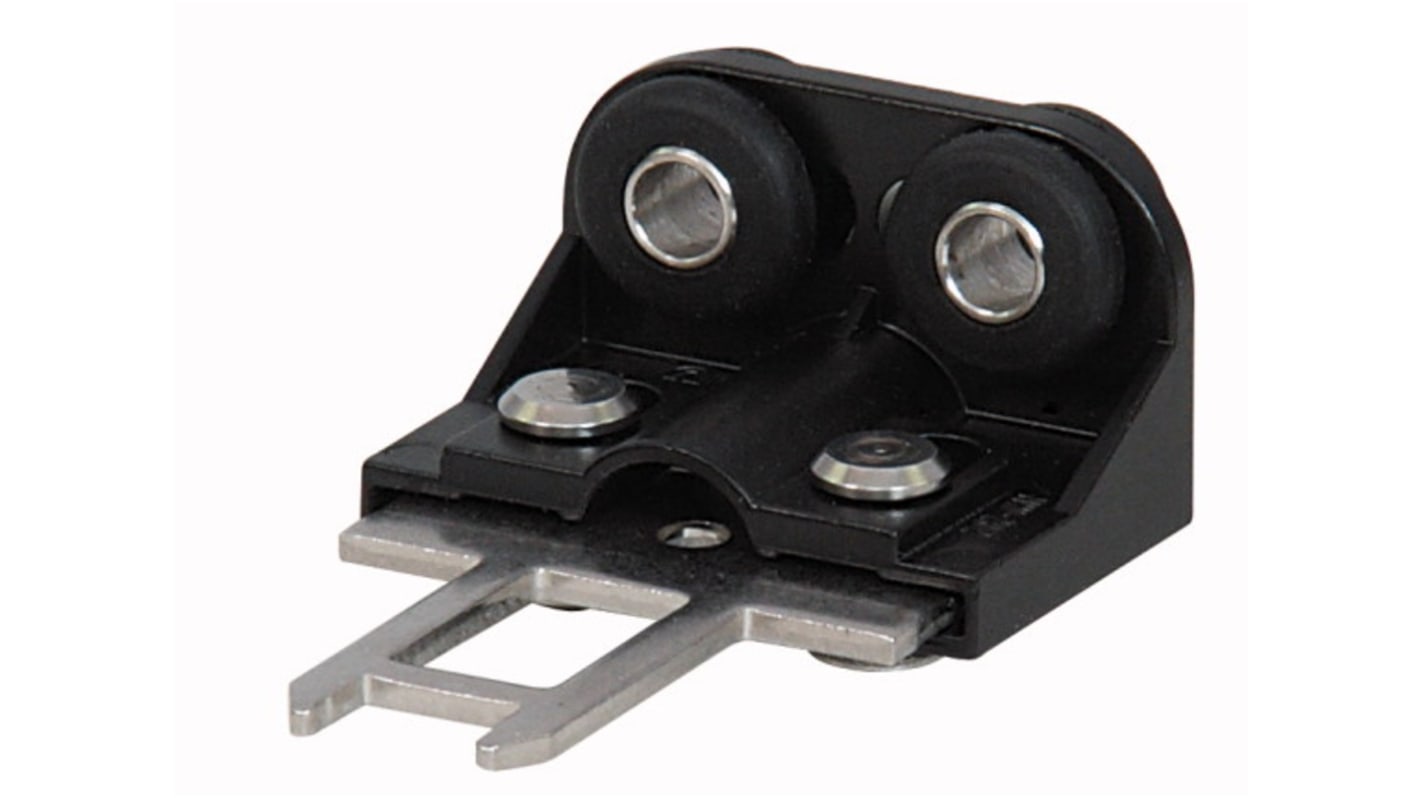

The Eaton Compensating actuator is used for electromagnetic door interlock, the ZBZ power switch enhances the safety standard for personnel and process protection through reliable protection and locking of protective doors. The ZBZ power switch works according to two principles of operation with magnetic force or spring powered interlock. Thus each door stays safely closed even during a power failure. In an emergency, the protective guard should be opened using an auxiliary release mechanism. The protective shroud is locked when voltage is applied, in the event of power failure the protected area is directly accessible.

IEC EN 60947 standards

Class III overvoltage category

800 Operations per Hz operating frequency

UL and CE compliances

CSA approved

For used with doors that do not close precisely

Note

Eaton formerly known as Moeller
