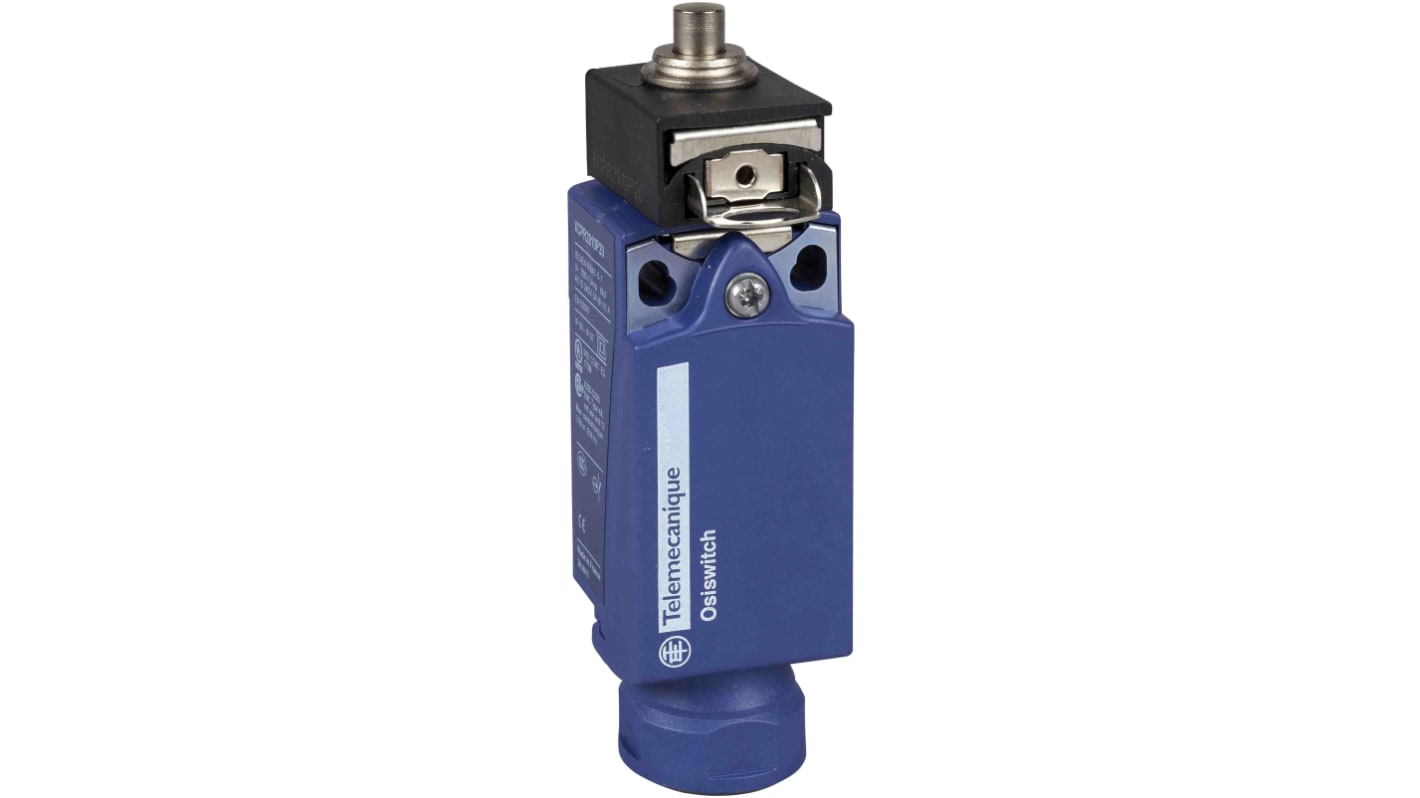

Telemecanique Sensors OsiSense XC Series Plunger Limit Switch, 1 NO/1 NC, IP67, IP66, Plastic Housing
- RS Stock No.:
- 221-2923
- Mfr. Part No.:
- XCPR2510P20
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£46.56
(exc. VAT)
£55.87
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £46.56 |
*price indicative
- RS Stock No.:
- 221-2923
- Mfr. Part No.:
- XCPR2510P20
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Product Type | Limit Switch | |
| Actuator Type | Plunger | |
| Contact Configuration | 1 NO/1 NC | |
| IP Rating | IP67, IP66 | |
| Housing Material | Plastic | |
| Contact Type | Slow Break | |
| Terminal Type | Screw Clamp | |
| Series | OsiSense XC | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Depth | 30mm | |
| Width | 31mm | |
| Standards/Approvals | IEC 60204-1, EN 60204-1, EN 60947-5-1, CSA C22.2 No 14, UL 508, IEC 60947-5-1 | |
| Length | 65mm | |
| Hazardous Area Certification | NO | |
| Mechanical Life | 5000000Cycles | |
| Mounting Orientation | Vertical | |
| Conduit Entry | 1 Cable Gland x M20 x 1.5 | |
| Operating Force | 45N | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Product Type Limit Switch | ||
Actuator Type Plunger | ||
Contact Configuration 1 NO/1 NC | ||
IP Rating IP67, IP66 | ||
Housing Material Plastic | ||
Contact Type Slow Break | ||
Terminal Type Screw Clamp | ||
Series OsiSense XC | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Depth 30mm | ||
Width 31mm | ||
Standards/Approvals IEC 60204-1, EN 60204-1, EN 60947-5-1, CSA C22.2 No 14, UL 508, IEC 60947-5-1 | ||
Length 65mm | ||
Hazardous Area Certification NO | ||
Mechanical Life 5000000Cycles | ||
Mounting Orientation Vertical | ||
Conduit Entry 1 Cable Gland x M20 x 1.5 | ||
Operating Force 45N | ||
- COO (Country of Origin):
- FR
The Schneider Electric Limit switches are used in all automated installations and also in a wide variety of applications, due to the numerous advantages inherent to their technology .All limit switches incorporating either a slow break contact block or a snap action NC + NO (form Zb), NC + NO + NO, NC + NC + NO, NC + NC + NO + NO contact block are positive opening operation, in complete conformity with standard IEC 60947-5-1 Appendix K.
high repeat accuracy
high resistance to the different ambient conditions encountered in industry
high rated operational voltage
product certifications= UL, CSA, CCC
