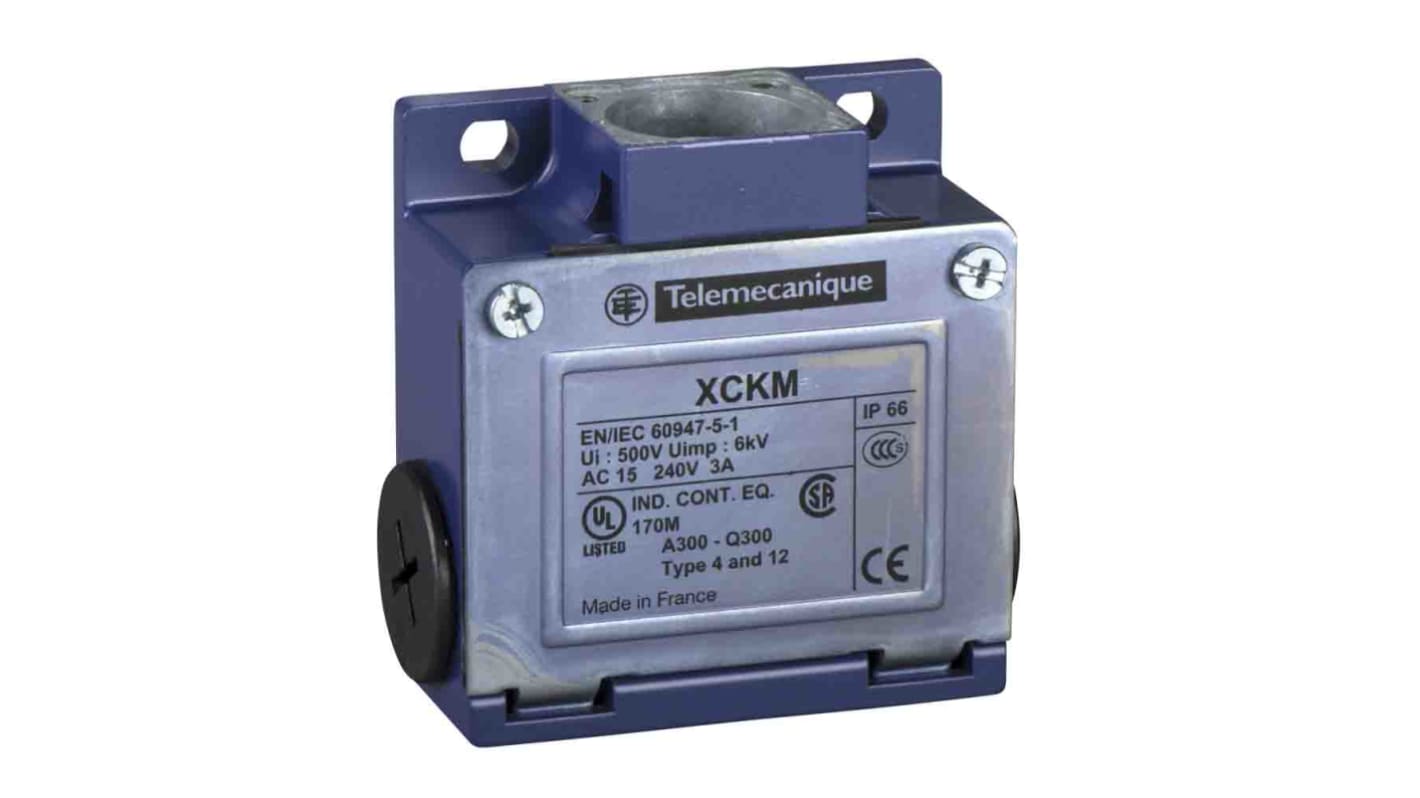

Telemecanique Sensors ZCKM Series Roller Lever Limit Switch, 2 NC, IP66, Metal Housing, 240V ac, 3A
- RS Stock No.:
- 221-2068
- Mfr. Part No.:
- ZCKM9H29
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£43.60
(exc. VAT)
£52.32
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £43.60 |
*price indicative
- RS Stock No.:
- 221-2068
- Mfr. Part No.:
- ZCKM9H29
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Actuator Type | Roller Lever | |
| Product Type | Limit Switch | |
| IP Rating | IP66 | |
| Contact Configuration | 2 NC | |
| Housing Material | Metal | |
| Contact Type | Snap Action | |
| Switching Current | 3A | |
| Series | ZCKM | |
| Switching DC Voltage | 250V dc | |
| Switching AC Voltage | 240V ac | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 84mm | |
| Standards/Approvals | CSA C22.2 No 14, IEC 60255-7 Category 3, EN/IEC 60947-5-1 appendix A, UL 508, IEC 60947-1, IEC 60664 | |
| Width | 64mm | |
| Depth | 30mm | |
| Hazardous Area Certification | No | |
| Conduit Entry | 20 mm | |
| Mechanical Life | 10000000Cycles | |
| Mounting Orientation | Side | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Actuator Type Roller Lever | ||
Product Type Limit Switch | ||
IP Rating IP66 | ||
Contact Configuration 2 NC | ||
Housing Material Metal | ||
Contact Type Snap Action | ||
Switching Current 3A | ||
Series ZCKM | ||
Switching DC Voltage 250V dc | ||
Switching AC Voltage 240V ac | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Length 84mm | ||
Standards/Approvals CSA C22.2 No 14, IEC 60255-7 Category 3, EN/IEC 60947-5-1 appendix A, UL 508, IEC 60947-1, IEC 60664 | ||
Width 64mm | ||
Depth 30mm | ||
Hazardous Area Certification No | ||
Conduit Entry 20 mm | ||
Mechanical Life 10000000Cycles | ||
Mounting Orientation Side | ||
- COO (Country of Origin):
- FR
The Schneider Electric limit switch body ZCKM belongs to the range OsiSense XC and has fixed body type. It has 3 entries tapped for M20 x 1.5 cable gland and 2 poles.
Mercury free: Yes
