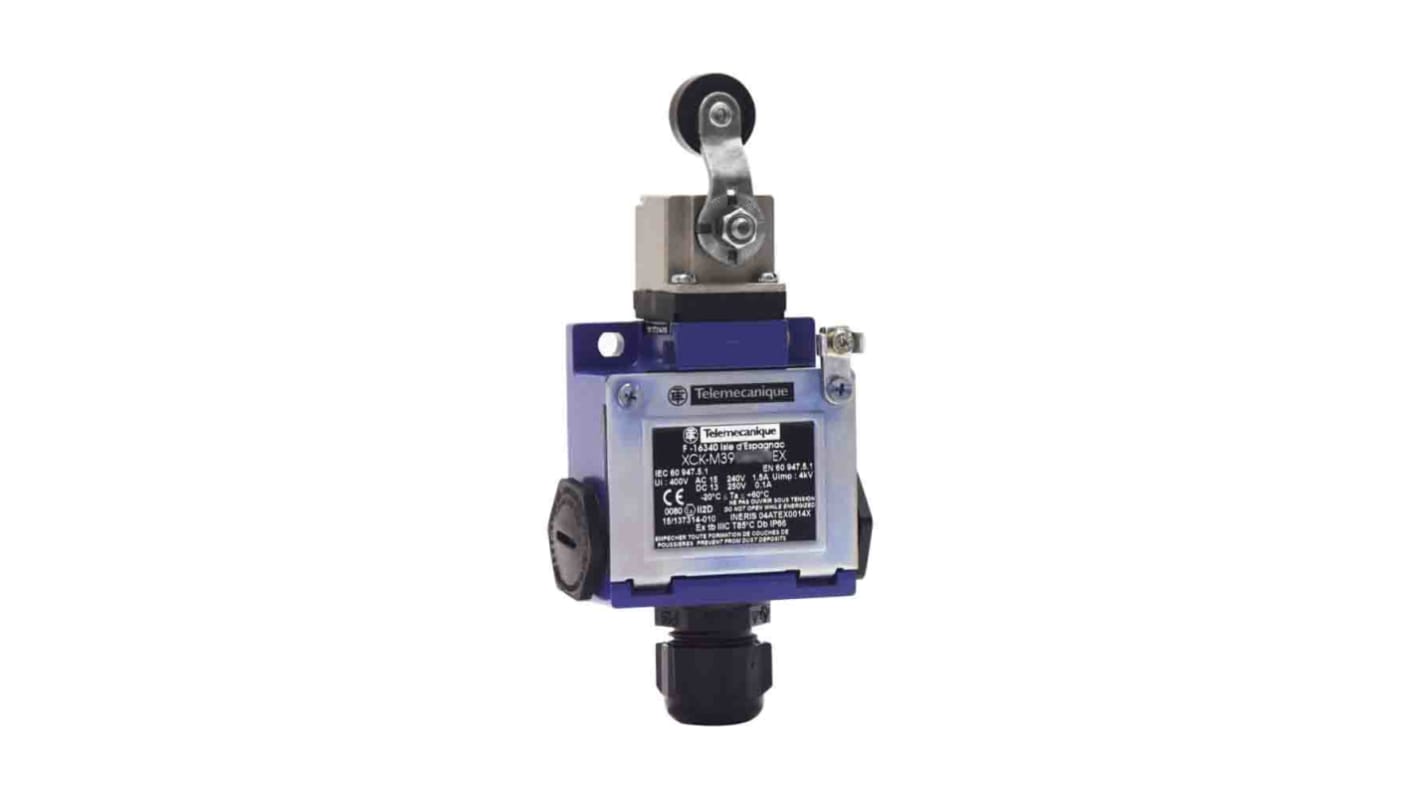

Telemecanique Sensors XCKM Series Roller Lever Limit Switch, 2NC/1NO, IP66, 3P, Zinc Alloy Housing, 400V ac Max, 6A Max
- RS Stock No.:
- 221-1905
- Mfr. Part No.:
- XCKM3915H29EX
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£643.47
(exc. VAT)
£772.16
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £643.47 |
*price indicative
- RS Stock No.:
- 221-1905
- Mfr. Part No.:
- XCKM3915H29EX
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Actuator Type | Roller Lever | |
| Pole and Throw Configuration | 3P | |
| Normal State Configuration | 2NC/1NO | |
| IP Rating | IP66 | |
| Maximum Current | 6A | |
| Housing Material | Zinc Alloy | |
| Maximum AC Voltage | 400V | |
| Connection Type | M20 | |
| Series | XCKM | |
| Action Type | Snap Action | |
| Length | 30mm | |
| Minimum Operating Temperature | -20°C | |
| Depth | 64mm | |
| Width | 63mm | |
| Maximum Operating Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Actuator Type Roller Lever | ||
Pole and Throw Configuration 3P | ||
Normal State Configuration 2NC/1NO | ||
IP Rating IP66 | ||
Maximum Current 6A | ||
Housing Material Zinc Alloy | ||
Maximum AC Voltage 400V | ||
Connection Type M20 | ||
Series XCKM | ||
Action Type Snap Action | ||
Length 30mm | ||
Minimum Operating Temperature -20°C | ||
Depth 64mm | ||
Width 63mm | ||
Maximum Operating Temperature +60°C | ||
- COO (Country of Origin):
- FR
The Schneider XCKM limit switch, with roller lever, has contacts type and composition of 2 NC + 1 NO and is used for medium duty.
IP degree of protection: IP66 conforming to IEC 60529
