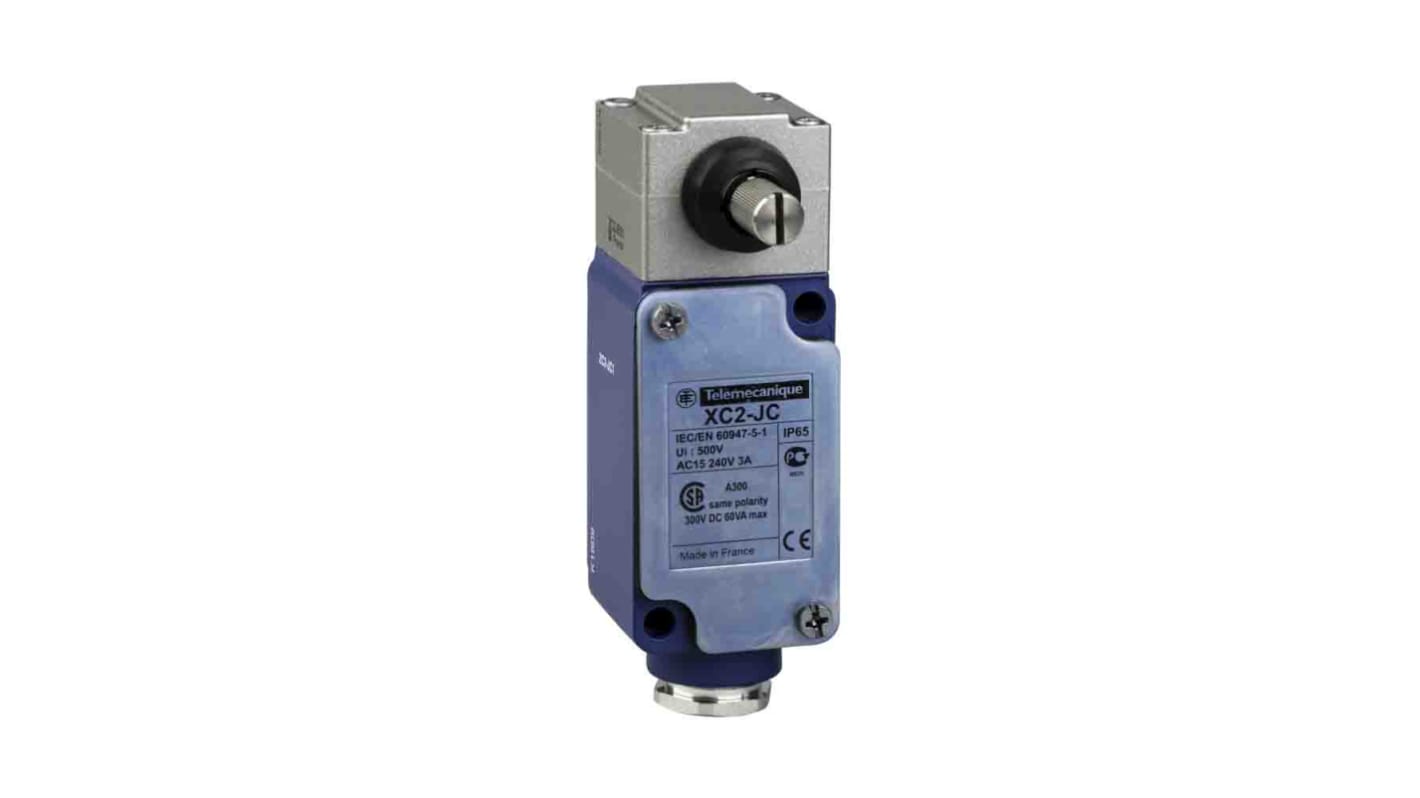

Telemecanique Sensors XC2J Series Roller Lever Limit Switch, 1 CO, IP65, IP657, Metal Housing, 240V ac, 3A
- RS Stock No.:
- 221-1877
- Mfr. Part No.:
- XC2JC10151
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£203.60
(exc. VAT)
£244.32
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 09 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £203.60 |
*price indicative
- RS Stock No.:
- 221-1877
- Mfr. Part No.:
- XC2JC10151
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Actuator Type | Roller Lever | |
| Product Type | Limit Switch | |
| Contact Configuration | 1 CO | |
| IP Rating | IP65, IP657 | |
| Housing Material | Metal | |
| Contact Type | Snap Action | |
| Switching Current | 3A | |
| Series | XC2J | |
| Switching DC Voltage | 250V dc | |
| Switching AC Voltage | 240V ac | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Depth | 65mm | |
| Length | 80mm | |
| Width | 40mm | |
| Standards/Approvals | VDE 0660-200, UL 508, IEC 60337-1, EN/IEC 60947-5-1, CSA C22.2 No 14 | |
| Hazardous Area Certification | No | |
| Operating Force | 0.2Nm | |
| Mounting Orientation | Side | |
| Mechanical Life | 30000000Cycles | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Actuator Type Roller Lever | ||
Product Type Limit Switch | ||
Contact Configuration 1 CO | ||
IP Rating IP65, IP657 | ||
Housing Material Metal | ||
Contact Type Snap Action | ||
Switching Current 3A | ||
Series XC2J | ||
Switching DC Voltage 250V dc | ||
Switching AC Voltage 240V ac | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Depth 65mm | ||
Length 80mm | ||
Width 40mm | ||
Standards/Approvals VDE 0660-200, UL 508, IEC 60337-1, EN/IEC 60947-5-1, CSA C22.2 No 14 | ||
Hazardous Area Certification No | ||
Operating Force 0.2Nm | ||
Mounting Orientation Side | ||
Mechanical Life 30000000Cycles | ||
- COO (Country of Origin):
- FR
The Schneider XC2-J limit switch, with steel square rod lever, has a single pole and is used for very severe material handling applications.
IP65 conforming to IEC 60529.
IP657 conforming to NF C 20-010.
Degree of protection: IK08.
