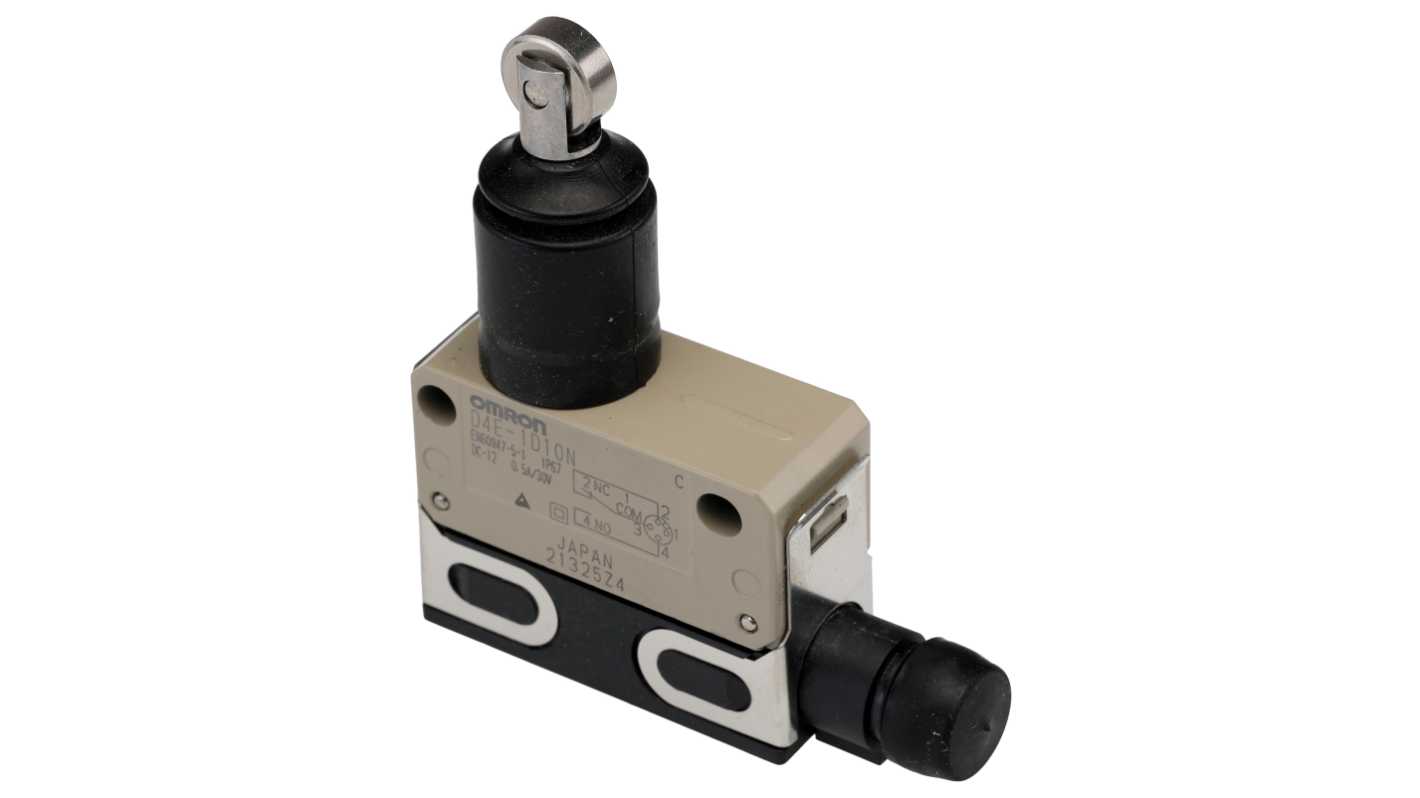

Omron D4E Series Roller Plunger Limit Switch, 1 NO/1 NC, IP67, Zinc Housing, 125V ac

RS Stock No.:: 214-7027
Distrelec Article No.:: 300-69-782
Mfr. Part No.:: D4E-1D10N
Brand:: Omron

Omron D4E Series Roller Plunger Limit Switch, 1 NO/1 NC, IP67, Zinc Housing, 125V ac

Subtotal (1 unit)*

£106.35

(exc. VAT)

£127.62

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 13 unit(s) shipping from 17 August 2026
Plus 15 unit(s) shipping from 17 August 2026
Plus 11 unit(s) shipping from 31 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£106.35

*price indicative

RS Stock No.:: 214-7027
Distrelec Article No.:: 300-69-782
Mfr. Part No.:: D4E-1D10N
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Product Type	Limit Switch
	Actuator Type	Roller Plunger
	Contact Configuration	1 NO/1 NC
	IP Rating	IP67
	Housing Material	Zinc
	Contact Type	Snap Action
	Terminal Type	Screw
	Series	D4E
	Switching AC Voltage	125V ac
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	80°C
	Width	50mm
	Standards/Approvals	CSA, UL
	Length	72mm
	Depth	30mm
	Hazardous Area Certification	No
	Mechanical Life	10000000Cycles
	Operating Force	11.77N
	Mounting Orientation	Multi Directional
	Conduit Entry	M12

	Select all
	Brand Omron
	Product Type Limit Switch
	Actuator Type Roller Plunger
	Contact Configuration 1 NO/1 NC
	IP Rating IP67
	Housing Material Zinc
	Contact Type Snap Action
	Terminal Type Screw
	Series D4E
	Switching AC Voltage 125V ac
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 80°C
	Width 50mm
	Standards/Approvals CSA, UL
	Length 72mm
	Depth 30mm
	Hazardous Area Certification No
	Mechanical Life 10000000Cycles
	Operating Force 11.77N
	Mounting Orientation Multi Directional
	Conduit Entry M12

Datasheet-D4E-1D10N

Omron D4E Series Limit Switch, 5A Maximum Current, Roller Plunger Actuator Type - D4E-1D10N

This limit switch is a miniature enclosed device designed for industrial automation applications, featuring a roller plunger actuator for precise operation. With an IP67 rating, it ensures robust protection against dust and moisture, making it suitable for various environments. The switch can withstand a maximum operating temperature of +80°C while functioning optimally between -10°C and +80°C.

Features & Benefits

• Durable die-cast zinc housing provides anti-corrosive protection

• Long mechanical life of 10 million operations ensures reliability

• Snap action mechanism delivers fast response times

• SPDT configuration permits versatile electrical connections

• Maximum current of 5A supports heavy-duty applications

• Sealing cap design withstands exposure to dust and oil

Applications

• Used in conveyor systems to signal position changes

• Employed in robotics for precise control of movements

• Utilised in safety systems to prevent machinery operation

• Ideal for use in automated assembly lines for quality assurance

What is the significance of the IP67 rating for this device?

The IP67 rating indicates that the device is completely protected against dust ingress and can withstand immersion in water up to 1 metre for 30 minutes, ensuring durability in challenging environments.

How does the snap action mechanism enhance performance?

The snap action mechanism allows for quicker switching, improving the operational efficiency of machinery by providing rapid response and minimising downtime during mechanical operations.

What kind of environments are suitable for the use of this switch?

This switch is suitable for environments where exposure to moisture, dust, and varying temperatures occurs, such as in factories, laboratories, and outdoor industries, due to its robust sealing capabilities.

Can this switch be used with different connection types?

Yes, the limit switch offers various connection options, including screw-terminal and pre-wired types, allowing flexibility in installation across diverse applications within industrial settings.
