Siemens 3SF13 Series Limit Switch, 1 NO/2 NC, IP67, IP66, Plastic Housing, 240V ac
- RS Stock No.:
- 210-4466
- Mfr. Part No.:
- 3SF1324-1SF21-1BA1
- Brand:
- Siemens
Subtotal (1 unit)*
£457.31
(exc. VAT)
£548.77
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 17 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £457.31 |
*price indicative
- RS Stock No.:
- 210-4466
- Mfr. Part No.:
- 3SF1324-1SF21-1BA1
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Limit Switch | |
| Contact Configuration | 1 NO/2 NC | |
| IP Rating | IP67, IP66 | |
| Housing Material | Plastic | |
| Contact Type | Slow Action | |
| Terminal Type | Screw | |
| Series | 3SF13 | |
| Minimum Operating Temperature | -30°C | |
| Switching DC Voltage | 24V dc | |
| Switching AC Voltage | 240V ac | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS | |
| Width | 54mm | |
| Length | 198.1mm | |
| Depth | 43.8mm | |
| Hazardous Area Certification | No | |
| Conduit Entry | M12 | |
| Mechanical Life | 1000000Cycles | |
| Operating Force | 30N | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Limit Switch | ||
Contact Configuration 1 NO/2 NC | ||
IP Rating IP67, IP66 | ||
Housing Material Plastic | ||
Contact Type Slow Action | ||
Terminal Type Screw | ||
Series 3SF13 | ||
Minimum Operating Temperature -30°C | ||
Switching DC Voltage 24V dc | ||
Switching AC Voltage 240V ac | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS | ||
Width 54mm | ||
Length 198.1mm | ||
Depth 43.8mm | ||
Hazardous Area Certification No | ||
Conduit Entry M12 | ||
Mechanical Life 1000000Cycles | ||
Operating Force 30N | ||
- COO (Country of Origin):
- DE

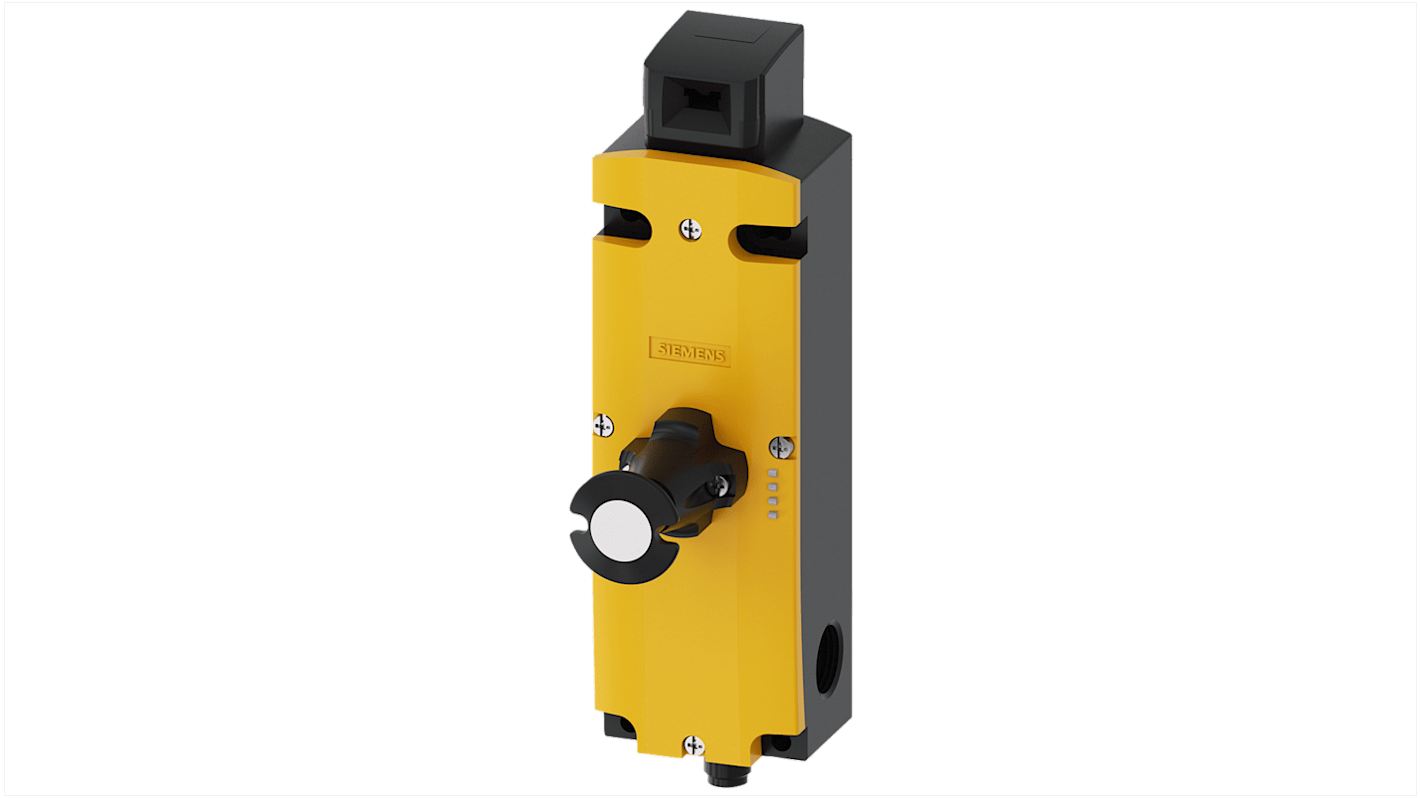

The Siemens safety position switch with tumbler has locking force 1300 N 5 directions of approaches plastic enclosure and have NC spring-locked escape release on the front with magnet voltage 24 V DC/AC. 3D-coded actuators guarantee strong protection against manipulation. Two LEDs indicate the current state of the device. The switches can be used for the highest safety requirements specified by PLÂ e or SILÂ 3. Device versions are also available with a high IP69K degree of protection.
Protection class is IP IP66/IP67
Mounting type is screw fixing
