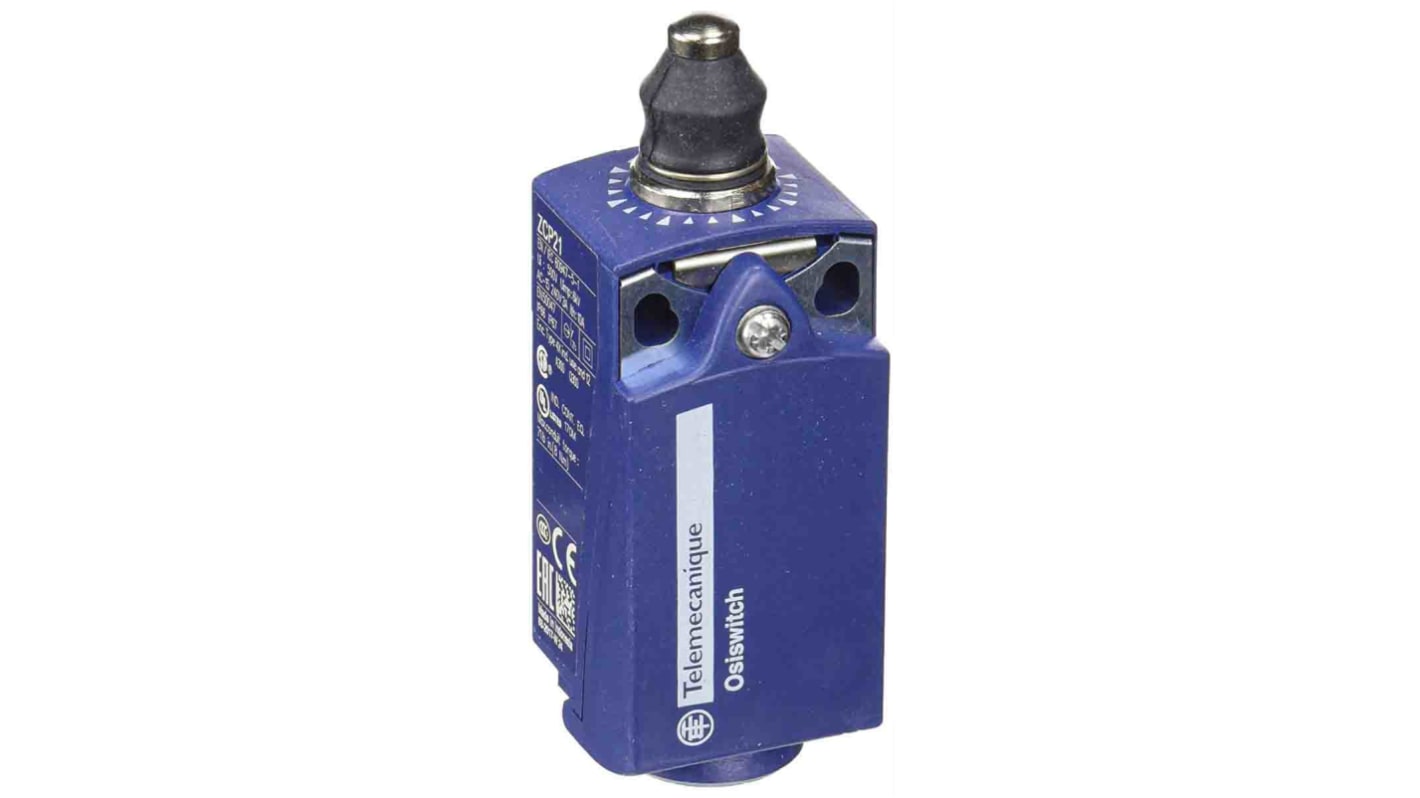

Telemecanique Sensors XCKP Series Plunger Limit Switch, 1 NO/1 NC, IP67, IP66, Plastic Housing, 240V ac, 10A

RS Stock No.:: 195-1679
Mfr. Part No.:: XCKP2111P16
Brand:: Telemecanique Sensors

Telemecanique Sensors XCKP Series Plunger Limit Switch, 1 NO/1 NC, IP67, IP66, Plastic Housing, 240V ac, 10A

Subtotal (1 unit)*

£35.30

(exc. VAT)

£42.36

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

22 unit(s) ready to ship
Plus 6 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£35.30

*price indicative

Precision Limit Switching You Can Rely On with XCMH Series

Designed for durability and precision, Telemecanique XCMH limit switches provide dependable position control in even the toughest environments. With rugged construction and versatile configurations, they ensure consistent performance and long-lasting reliability across your industrial applications.

Shop Here

RS Stock No.:: 195-1679
Mfr. Part No.:: XCKP2111P16
Brand:: Telemecanique Sensors

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Product Type	Limit Switch
	Actuator Type	Plunger
	Contact Configuration	1 NO/1 NC
	IP Rating	IP67, IP66
	Housing Material	Plastic
	Contact Type	Snap Action
	Terminal Type	M16
	Switching Current	10A
	Series	XCKP
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	240V ac
	Switching DC Voltage	250V dc
	Maximum Operating Temperature	70°C
	Standards/Approvals	RoHS
	Width	31mm
	Depth	30mm
	Length	65mm
	Hazardous Area Certification	No
	Operating Force	15mN
	Conduit Entry	M20
	Mechanical Life	15000000Cycles
	Mounting Orientation	Cable

	Select all
	Brand Telemecanique Sensors
	Product Type Limit Switch
	Actuator Type Plunger
	Contact Configuration 1 NO/1 NC
	IP Rating IP67, IP66
	Housing Material Plastic
	Contact Type Snap Action
	Terminal Type M16
	Switching Current 10A
	Series XCKP
	Minimum Operating Temperature -25°C
	Switching AC Voltage 240V ac
	Switching DC Voltage 250V dc
	Maximum Operating Temperature 70°C
	Standards/Approvals RoHS
	Width 31mm
	Depth 30mm
	Length 65mm
	Hazardous Area Certification No
	Operating Force 15mN
	Conduit Entry M20
	Mechanical Life 15000000Cycles
	Mounting Orientation Cable

Telemecanique Sensors XCKP Series Limit Switch, IP67, 15000000 Cycles Mechanical Life - XCKP2111P16

This limit switch is a Compact mechanical sensor designed to provide positive position feedback in industrial control systems. It operates using a plunger actuator and is intended for installation where a durable, cable-mounted switching device is required. The unit offers a sealed housing suitable for use in environments where ingress protection is necessary and supports both AC and DC switching requirements.

Features and Benefits:

• 1 NO 1 NC snap-action switch for clear state change and contact reliability
• Switching capability up to 250V DC at 10 A for a range of DC loads
• Rated for 240V AC switching to handle common AC control circuits
• Mechanical life of 15,000,000 cycles to reduce maintenance intervals
• Wide operating temperature range from -25 °C to 70 °C for varied climates
• M16 Terminal with M20 conduit entry for straightforward cable routing

Applications

• Suitable for conveyor end-of-travel detection in factory automation
• Ideal for safety interlocks on access panels and guards
• Used with motor starters to confirm mechanical limit positions
• Can be used for position sensing on packaging machinery
• Suitable for retrofit on existing control cabinets needing sealed switches

What is the housing material and why does it matter?

The enclosure is plastic, which provides electrical insulation and reduces weight for easier handling during installation.

How is the unit mounted and wired into a system?

It is designed for cable mounting and connects via an M16 Terminal with a separate M20 conduit entry for protective cabling.

Does the switch carry hazardous area certification?

It does not carry hazardous area approval and should not be specified for classified atmospheres.

What approval or standard is noted for material restrictions?

The component conforms to RoHS requirements regarding restricted substances in electrical equipment.
