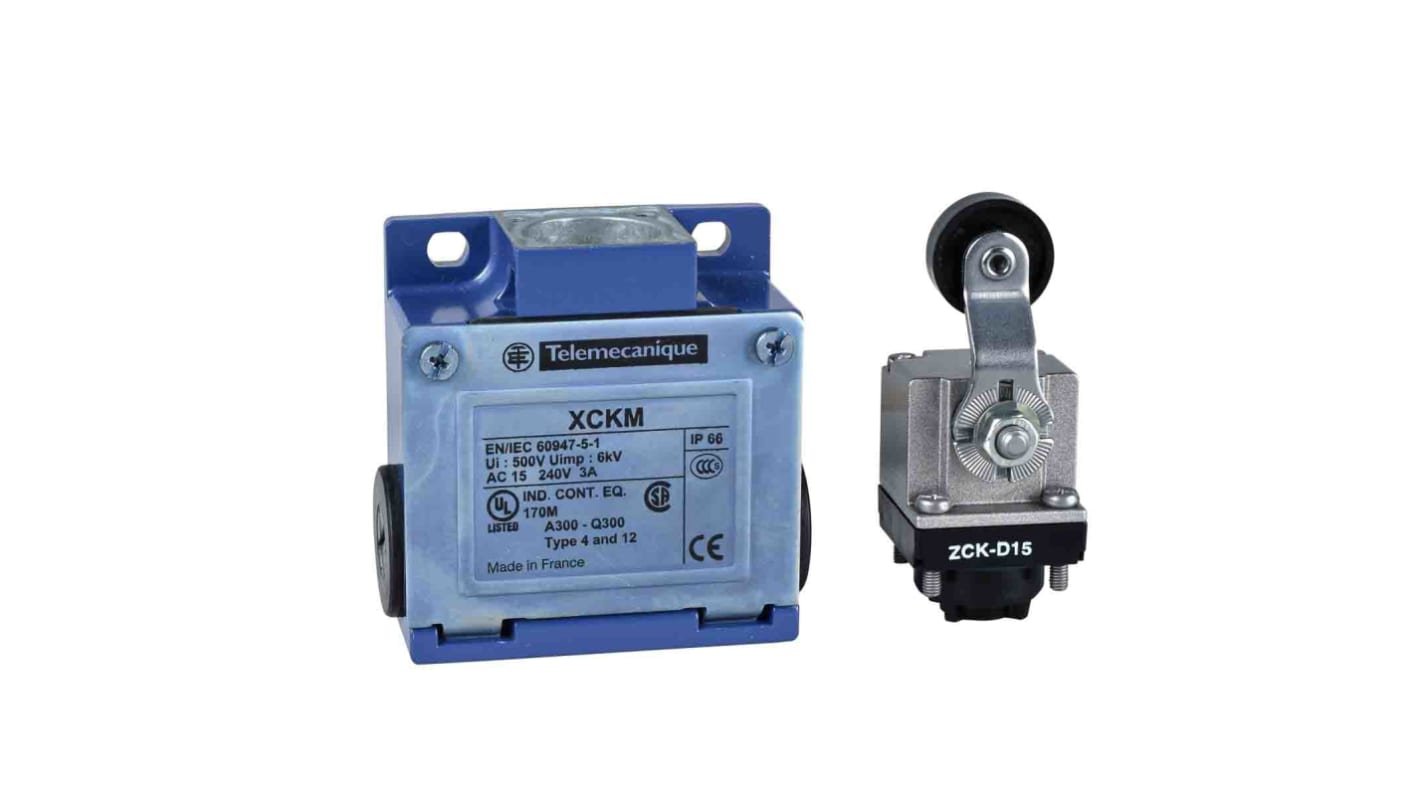

Telemecanique Sensors XCKM Series Roller Lever Limit Switch, DPST, IP66, Zinc Zamak Alloy Housing, 240V ac, 3A
- RS Stock No.:
- 195-1674
- Mfr. Part No.:
- XCKM515H29
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£70.50
(exc. VAT)
£84.60
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- Plus 61 left, shipping from 08 June 2026
- Plus 19 left, shipping from 08 June 2026
- Plus 58 left, shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £70.50 |
*price indicative
- RS Stock No.:
- 195-1674
- Mfr. Part No.:
- XCKM515H29
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Product Type | Limit Switch | |
| Actuator Type | Roller Lever | |
| Contact Configuration | DPST | |
| IP Rating | IP66 | |
| Housing Material | Zinc Zamak Alloy | |
| Contact Type | Slow Break | |
| Switching Current | 3A | |
| Terminal Type | M20 | |
| Series | XCKM | |
| Minimum Operating Temperature | -25°C | |
| Switching DC Voltage | 250V dc | |
| Switching AC Voltage | 240V ac | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Depth | 119mm | |
| Width | 34mm | |
| Length | 64mm | |
| Hazardous Area Certification | No | |
| Conduit Entry | M20 | |
| Mounting Orientation | Cable | |
| Operating Force | 0.25Nm | |
| Mechanical Life | 15000000Cycles | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Product Type Limit Switch | ||
Actuator Type Roller Lever | ||
Contact Configuration DPST | ||
IP Rating IP66 | ||
Housing Material Zinc Zamak Alloy | ||
Contact Type Slow Break | ||
Switching Current 3A | ||
Terminal Type M20 | ||
Series XCKM | ||
Minimum Operating Temperature -25°C | ||
Switching DC Voltage 250V dc | ||
Switching AC Voltage 240V ac | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Depth 119mm | ||
Width 34mm | ||
Length 64mm | ||
Hazardous Area Certification No | ||
Conduit Entry M20 | ||
Mounting Orientation Cable | ||
Operating Force 0.25Nm | ||
Mechanical Life 15000000Cycles | ||
Limit Switch Xckm - Thermoplastic Roller Lever - 1nc+1no - Slow-Break - M20
