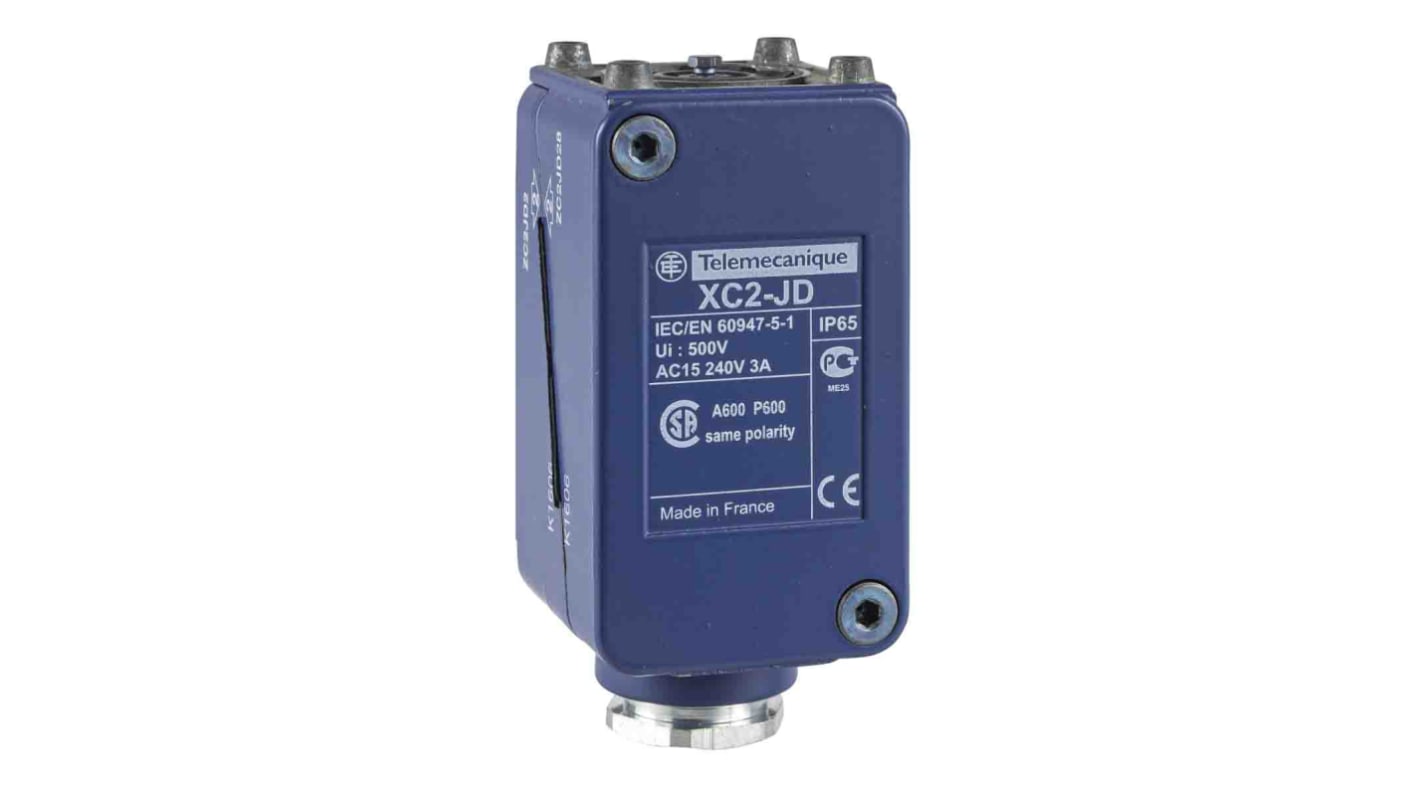

Telemecanique Sensors ZC2J Series Limit Switch, 2 CO, IP65, Metal Housing, 240V ac, 3A
- RS Stock No.:
- 195-1615
- Mfr. Part No.:
- ZC2JD4
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£337.10
(exc. VAT)
£404.52
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £337.10 |
*price indicative
- RS Stock No.:
- 195-1615
- Mfr. Part No.:
- ZC2JD4
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Product Type | Limit Switch | |
| Contact Configuration | 2 CO | |
| IP Rating | IP65 | |
| Housing Material | Metal | |
| Contact Type | Snap Action | |
| Switching Current | 3A | |
| Terminal Type | Screw Clamp | |
| Series | ZC2J | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 240V ac | |
| Maximum Operating Temperature | 70°C | |
| Depth | 41mm | |
| Width | 42mm | |
| Length | 41mm | |
| Standards/Approvals | REACH, RoHS | |
| Hazardous Area Certification | NO | |
| Conduit Entry | 1 Cable Gland x PG13.5 | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Product Type Limit Switch | ||
Contact Configuration 2 CO | ||
IP Rating IP65 | ||
Housing Material Metal | ||
Contact Type Snap Action | ||
Switching Current 3A | ||
Terminal Type Screw Clamp | ||
Series ZC2J | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 240V ac | ||
Maximum Operating Temperature 70°C | ||
Depth 41mm | ||
Width 42mm | ||
Length 41mm | ||
Standards/Approvals REACH, RoHS | ||
Hazardous Area Certification NO | ||
Conduit Entry 1 Cable Gland x PG13.5 | ||
Mechanical Life 1000000Cycles | ||
Limit Switch Body Zc2j - Plug-In - Without Display - 2c/O
