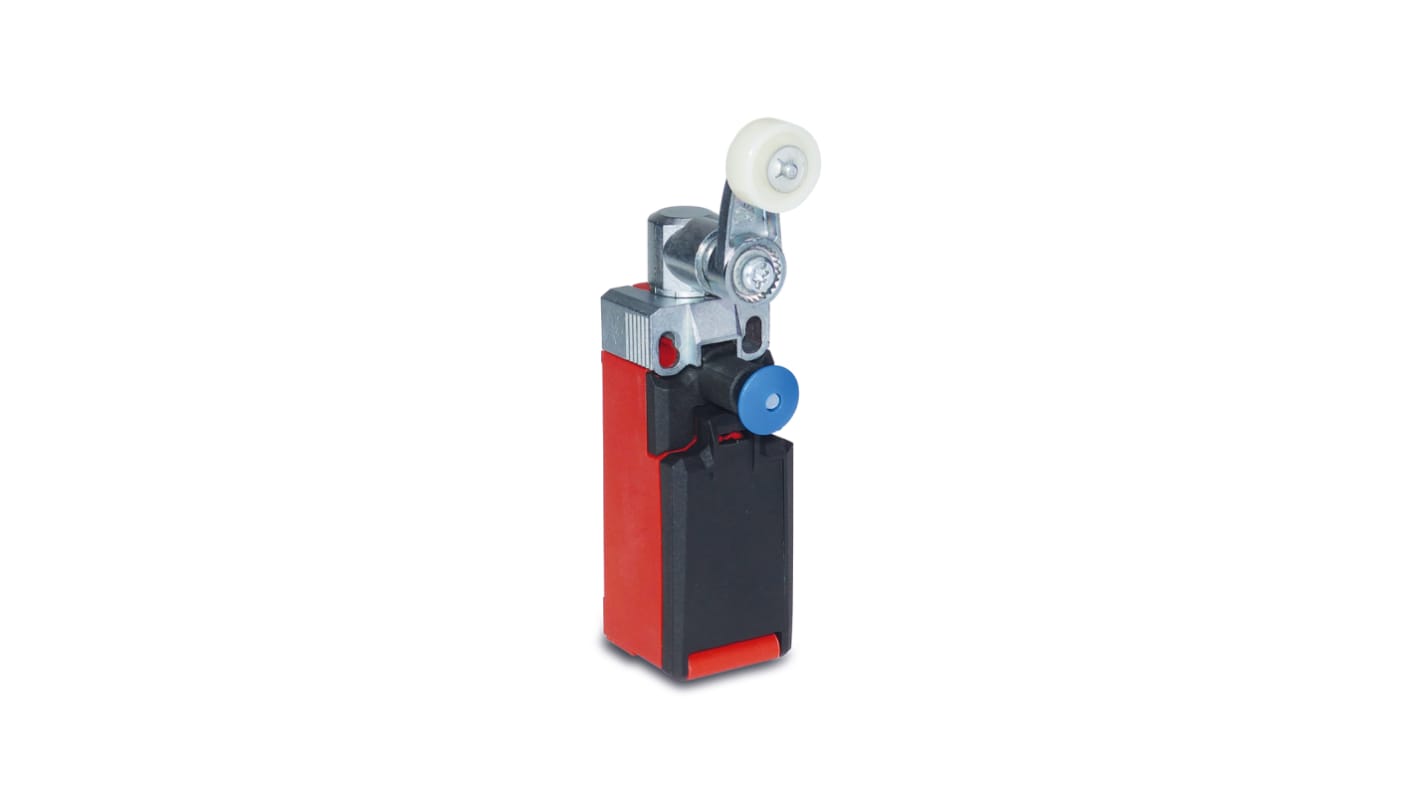

Bernstein AG I81 Series Roller Lever Limit Switch, NC/NO, IP66, IP67, DPST, Thermoplastic Housing, 240V ac Max, 5A Max
- RS Stock No.:
- 189-5298
- Mfr. Part No.:
- 6083000246
- Brand:
- Bernstein AG
Subtotal (1 unit)*
£33.80
(exc. VAT)
£40.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 6 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £33.80 |
*price indicative
- RS Stock No.:
- 189-5298
- Mfr. Part No.:
- 6083000246
- Brand:
- Bernstein AG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bernstein AG | |
Actuator Type | Roller Lever | |
Pole and Throw Configuration | DPST | |
Normal State Configuration | NC/NO | |
IP Rating | IP66, IP67 | |
Maximum Current | 5A | |
Housing Material | Glass Fibre Reinforced Thermoplastic | |
Maximum AC Voltage | 240V | |
Maximum DC Voltage | 24V | |
Connection Type | M20 | |
Series | I81 | |
Action Type | Slow Action, Snap Action | |
Length | 31mm | |
Width | 123.5mm | |
Maximum Operating Temperature | +75°C | |
Minimum Operating Temperature | -30°C | |
Depth | 30.3mm | |
Operating Force | 10 N | |
Mechanical Life | 100000Cycles | |
Mounting Orientation | Screw | |
Select all | ||
---|---|---|
Brand Bernstein AG | ||
Actuator Type Roller Lever | ||
Pole and Throw Configuration DPST | ||
Normal State Configuration NC/NO | ||
IP Rating IP66, IP67 | ||
Maximum Current 5A | ||
Housing Material Glass Fibre Reinforced Thermoplastic | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 24V | ||
Connection Type M20 | ||
Series I81 | ||
Action Type Slow Action, Snap Action | ||
Length 31mm | ||
Width 123.5mm | ||
Maximum Operating Temperature +75°C | ||
Minimum Operating Temperature -30°C | ||
Depth 30.3mm | ||
Operating Force 10 N | ||
Mechanical Life 100000Cycles | ||
Mounting Orientation Screw | ||
- COO (Country of Origin):
- DE
The modularity of the I81 allows for great flexibility, enabling individual customer solutions to be realised. Due to the metal actuator locking and mounting clip the product is particularly robust.
Integrated latch function: After actuation manually reset by pulling the blue button necessary
Modular design
High reliability at low currents (1 mA)
Tool-free turning and changing of actuator elements
Metal actuator locking
Metal mounting clip
Hinged snap-on cover
Slow-action and snap-action contacts
Mechanical service life: 100.000 switching cycles
Different actuators available
Adjustable actuator elements (8 x 45° repositioning)
Adjustable lever
Rotatable lever
Modular design
High reliability at low currents (1 mA)
Tool-free turning and changing of actuator elements
Metal actuator locking
Metal mounting clip
Hinged snap-on cover
Slow-action and snap-action contacts
Mechanical service life: 100.000 switching cycles
Different actuators available
Adjustable actuator elements (8 x 45° repositioning)
Adjustable lever
Rotatable lever
