Telemecanique Sensors XCKS Series Rod Limit Switch, NO/NC, IP66, IP67, 2P, Plastic Housing, 240V ac Max, 3A Max
- RS Stock No.:
- 179-9870
- Mfr. Part No.:
- XCKS159H29
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£60.10
(exc. VAT)
£72.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 26 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £60.10 |
*price indicative
- RS Stock No.:
- 179-9870
- Mfr. Part No.:
- XCKS159H29
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Telemecanique Sensors | |
Actuator Type | Rod | |
Pole and Throw Configuration | 2P | |
Normal State Configuration | NO/NC | |
IP Rating | IP66, IP67 | |
Maximum Current | 3A | |
Housing Material | Plastic | |
Maximum AC Voltage | 240V | |
Maximum DC Voltage | 250V | |
Connection Type | M20 | |
Series | XCKS | |
Action Type | Snap Action | |
Length | 40mm | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +70°C | |
Depth | 280mm | |
Width | 55mm | |
Operating Force | 0.1 Nm | |
Mechanical Life | 20000000Cycles | |
Mounting Orientation | Vertical | |
Select all | ||
---|---|---|
Brand Telemecanique Sensors | ||
Actuator Type Rod | ||
Pole and Throw Configuration 2P | ||
Normal State Configuration NO/NC | ||
IP Rating IP66, IP67 | ||
Maximum Current 3A | ||
Housing Material Plastic | ||
Maximum AC Voltage 240V | ||
Maximum DC Voltage 250V | ||
Connection Type M20 | ||
Series XCKS | ||
Action Type Snap Action | ||
Length 40mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Depth 280mm | ||
Width 55mm | ||
Operating Force 0.1 Nm | ||
Mechanical Life 20000000Cycles | ||
Mounting Orientation Vertical | ||
- COO (Country of Origin):
- ID
Telemecanique Limit Switches
Introducing Telemecanique XCKS range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before.
How does a limit switch work?
The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.

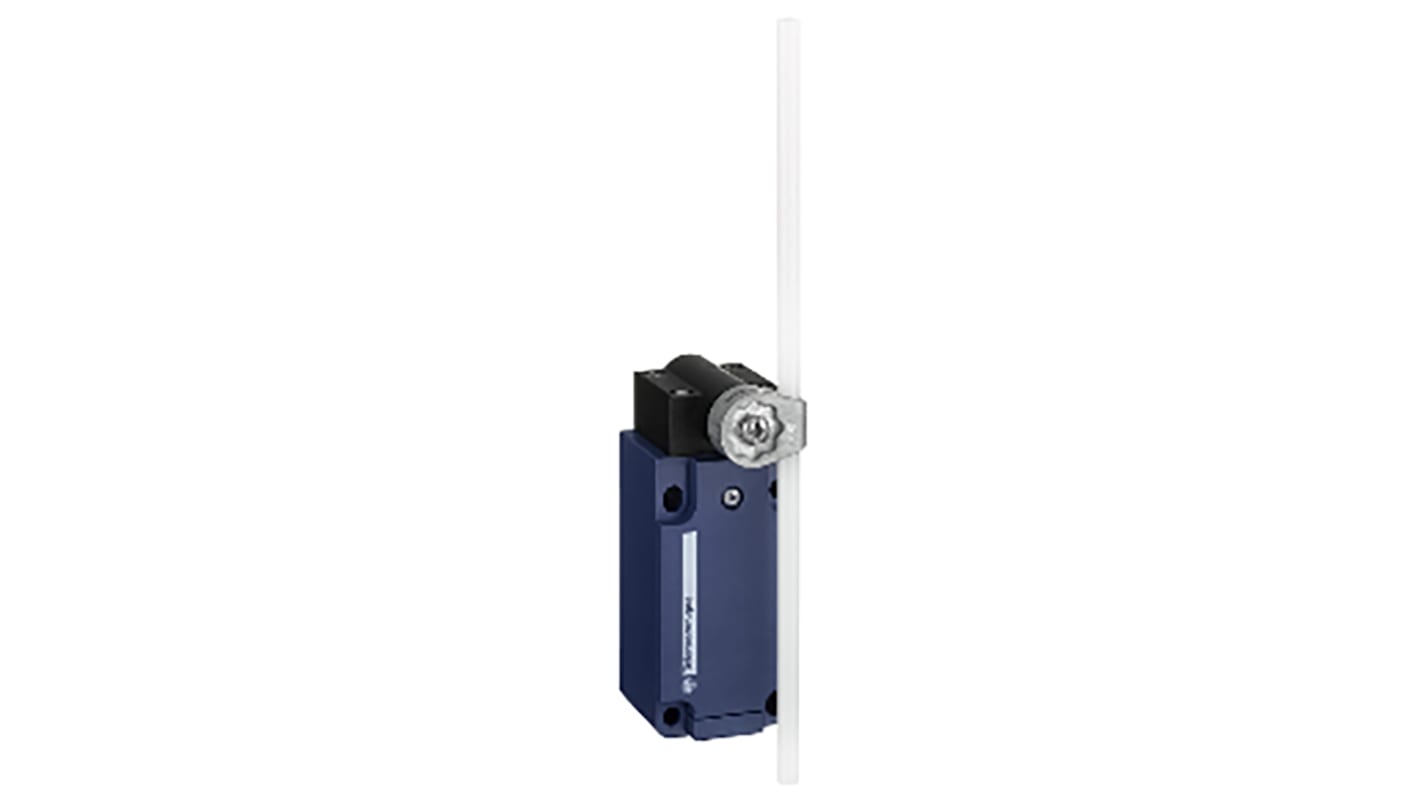

Telemecanique XCKS159H29 Limit Switch
• Forms part of the OsiSense XC range of products
• Fixed body type
• Features a rotary head
• Comprised of a hardwearing plastic material
• The operator type is a spring return round rod lever thermoplastic round rod 6 mm, L = 200mm
• 1NC - 1 NO contact types
• 2 poles
• Snap-action contact operation
• Minimum torque for tripping is 0.1 N.m
• Dimensions – W40mm x H98…280mm x D55mm
• Modular design for easier maintenance
• Positive opening on all snap and slow-break contacts. Resulting in safer machinery
• Fixed body type
• Features a rotary head
• Comprised of a hardwearing plastic material
• The operator type is a spring return round rod lever thermoplastic round rod 6 mm, L = 200mm
• 1NC - 1 NO contact types
• 2 poles
• Snap-action contact operation
• Minimum torque for tripping is 0.1 N.m
• Dimensions – W40mm x H98…280mm x D55mm
• Modular design for easier maintenance
• Positive opening on all snap and slow-break contacts. Resulting in safer machinery
