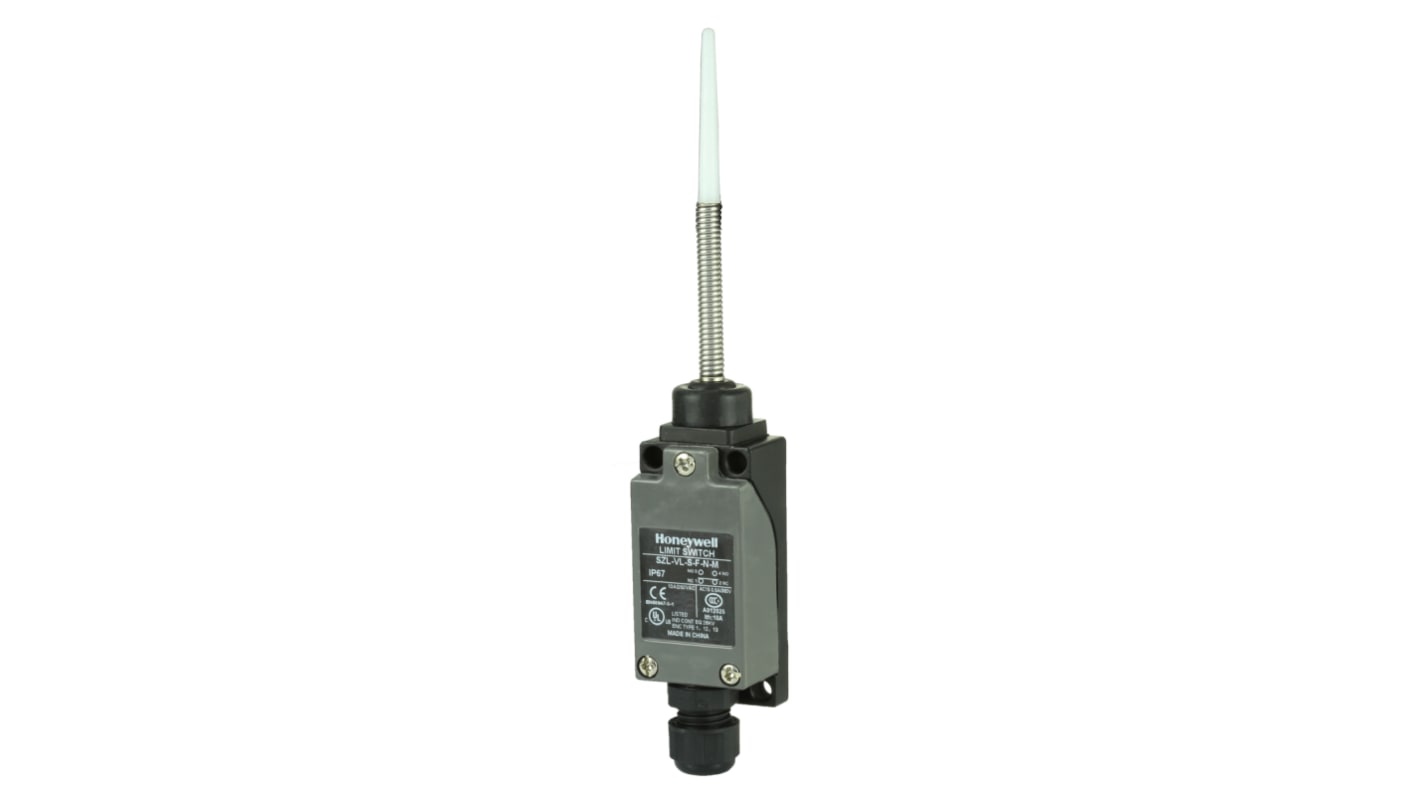

Honeywell SZL-VL Series Coil Spring Limit Switch, NO/NC, IP67, SPDT, Metal Housing, 380V ac Max, 380 V ac 0.5A Max
- RS Stock No.:
- 144-8402
- Mfr. Part No.:
- SZL-VL-S-F-N-M
- Brand:
- Honeywell
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 144-8402
- Mfr. Part No.:
- SZL-VL-S-F-N-M
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Actuator Type | Coil Spring | |
| Pole and Throw Configuration | SPDT | |
| Normal State Configuration | NO/NC | |
| IP Rating | IP67 | |
| Maximum Current | 380 V ac 0.5 A, 220 V dc 0.05A | |
| Housing Material | Metal | |
| Maximum AC Voltage | 380V | |
| Maximum DC Voltage | 220V | |
| Connection Type | M12 | |
| Series | SZL-VL | |
| Action Type | Snap Action | |
| Length | 28.5mm | |
| Maximum Operating Temperature | +70°C | |
| Depth | 25.7mm | |
| Minimum Operating Temperature | -20°C | |
| Width | 160mm | |
| Mechanical Life | 10000000Cycles | |
| Mounting Orientation | Front, Side | |
| Operating Force | 2 N | |
Select all | ||
|---|---|---|
Brand Honeywell | ||
Actuator Type Coil Spring | ||
Pole and Throw Configuration SPDT | ||
Normal State Configuration NO/NC | ||
IP Rating IP67 | ||
Maximum Current 380 V ac 0.5 A, 220 V dc 0.05A | ||
Housing Material Metal | ||
Maximum AC Voltage 380V | ||
Maximum DC Voltage 220V | ||
Connection Type M12 | ||
Series SZL-VL | ||
Action Type Snap Action | ||
Length 28.5mm | ||
Maximum Operating Temperature +70°C | ||
Depth 25.7mm | ||
Minimum Operating Temperature -20°C | ||
Width 160mm | ||
Mechanical Life 10000000Cycles | ||
Mounting Orientation Front, Side | ||
Operating Force 2 N | ||
- COO (Country of Origin):
- CN
Honeywell Limits SZL-VL-S Miniature Limit Switches
Honeywell SZL-VL-S series miniature limit switch are designed for use in applications where limited mounting space is available. These switches are designed for machinery that requires a rugged and reliable limit switch. Its design enhances ease of wiring with ample wiring space, and has an optional cable gland for faster and more efficient wiring termination.
The SZL-VL-S series switches have a split-housing design made of a diecast body and head with glass filled, flame-retardant thermoplastic cover. The cover is removable for easy access and ease of installation. Modular actuator head design allows for configurations to meet various application needs.
Features and Benefits
Sealed to IP67, NEMA 1, 12, 13
Snap-action contacts
Diecast metal housing with glass filled, flame-retardant thermoplastic cover
Variety of actuators
RoHS compliant
Mechanical life rating: 10 million cycles
Electrical life rating: 0.5 million cycles
