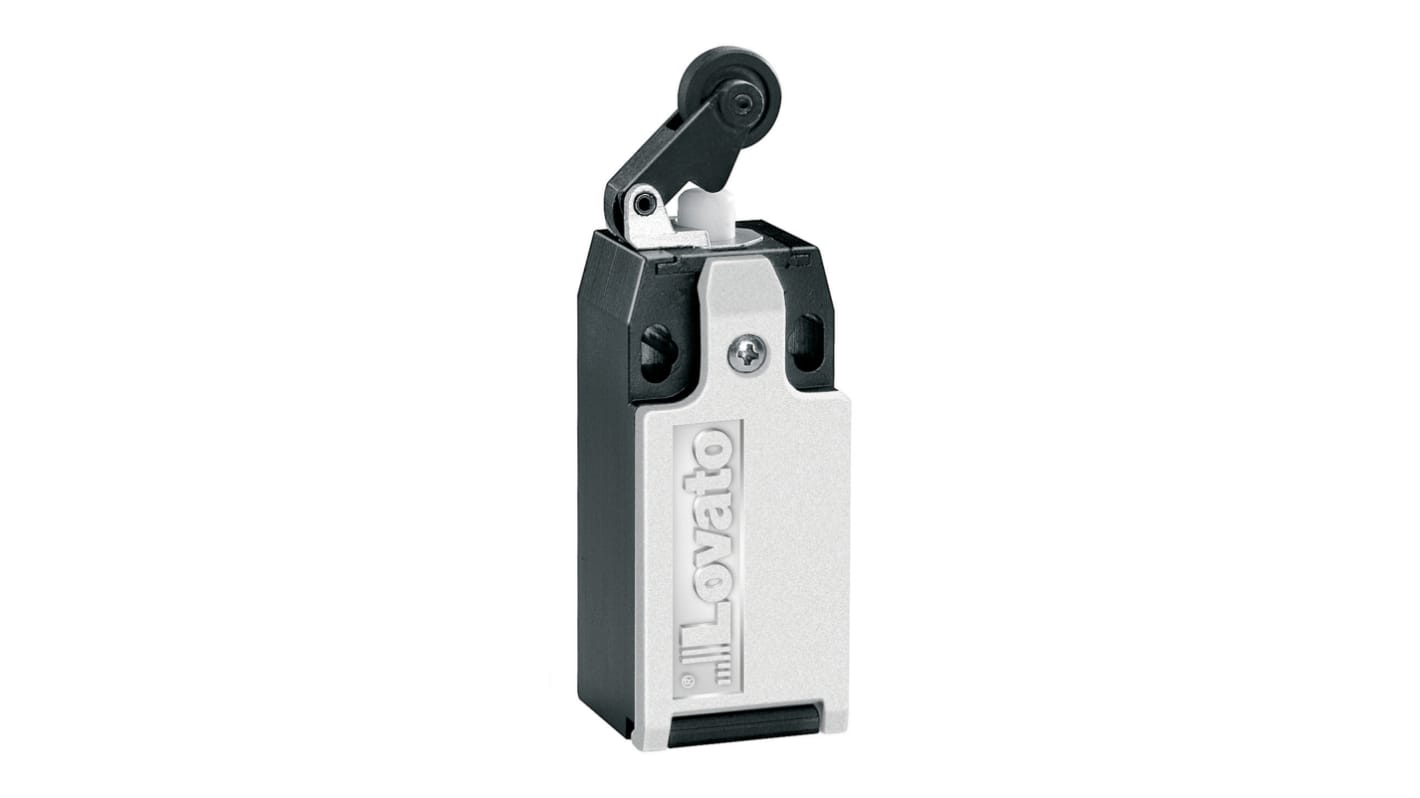

Lovato Roller Plunger Limit Switch, NO/NC, IP20, IP65, SPST-NC, SPST-NO, Thermoplastic Housing, 690V ac Max, 10A Max
- RS Stock No.:
- 111-7888
- Mfr. Part No.:
- KBC1S11
- Brand:
- Lovato
Subtotal (1 unit)*
£32.05
(exc. VAT)
£38.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 17 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 999,999,982 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £32.05 |
*price indicative
- RS Stock No.:
- 111-7888
- Mfr. Part No.:
- KBC1S11
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lovato | |
Actuator Type | Roller Plunger | |
Pole and Throw Configuration | SPST-NC, SPST-NO | |
Normal State Configuration | NO/NC | |
IP Rating | IP20, IP65 | |
Maximum Current | 10A | |
Housing Material | Thermoplastic | |
Maximum AC Voltage | 690V | |
Connection Type | 1/2 in NPT | |
Action Type | Snap Action | |
Length | 30mm | |
Maximum Operating Temperature | +70°C | |
Width | 93.5mm | |
Minimum Operating Temperature | -25°C | |
Depth | 30mm | |
Mechanical Life | 10000000Cycles | |
Operating Force | 6 N | |
Mounting Orientation | Front | |
Output Type | Analogue | |
Select all | ||
---|---|---|
Brand Lovato | ||
Actuator Type Roller Plunger | ||
Pole and Throw Configuration SPST-NC, SPST-NO | ||
Normal State Configuration NO/NC | ||
IP Rating IP20, IP65 | ||
Maximum Current 10A | ||
Housing Material Thermoplastic | ||
Maximum AC Voltage 690V | ||
Connection Type 1/2 in NPT | ||
Action Type Snap Action | ||
Length 30mm | ||
Maximum Operating Temperature +70°C | ||
Width 93.5mm | ||
Minimum Operating Temperature -25°C | ||
Depth 30mm | ||
Mechanical Life 10000000Cycles | ||
Operating Force 6 N | ||
Mounting Orientation Front | ||
Output Type Analogue | ||
- COO (Country of Origin):
- IT
Lovato KBC1S11 Series Limit Switch, NO/NC Normal State Configuration, IP20 / IP65 - KBC1S11
This limit switch provides a dependable solution for the automation and control of machinery in diverse industrial settings. It is designed to respond precisely to physical movement, thereby enhancing operational efficiency. Its sturdy construction and adaptable configurations make it an essential choice for professionals in the automation and mechanical industries.
Features & Benefits
• Utilises a snap action mechanism for a rapid response
• Durable thermoplastic housing suitable for harsh environments
• Available in both SPST-NC and SPST-NO configurations
• IP65 rating protects against dust and moisture
• Mechanical life rated for 10 million cycles
• Durable thermoplastic housing suitable for harsh environments
• Available in both SPST-NC and SPST-NO configurations
• IP65 rating protects against dust and moisture
• Mechanical life rated for 10 million cycles
Applications
• Position sensing in conveyor systems
• Automated assembly machines for precise control
• Safety circuits for monitoring equipment operation
• Integration with industrial machinery for dependable operation
• Automated assembly machines for precise control
• Safety circuits for monitoring equipment operation
• Integration with industrial machinery for dependable operation
What is the maximum temperature this can operate under?
It can function effectively at temperatures up to +70°C.
Can this be mounted in difficult spaces?
Yes, it is designed for front mounting, facilitating straightforward installation.
Is this suitable for outdoor use?
It is best for indoor applications due to its IP20 rating for certain configurations.
What force is required to activate this device?
The activation requires an operating force of 6N, ensuring efficient performance.
