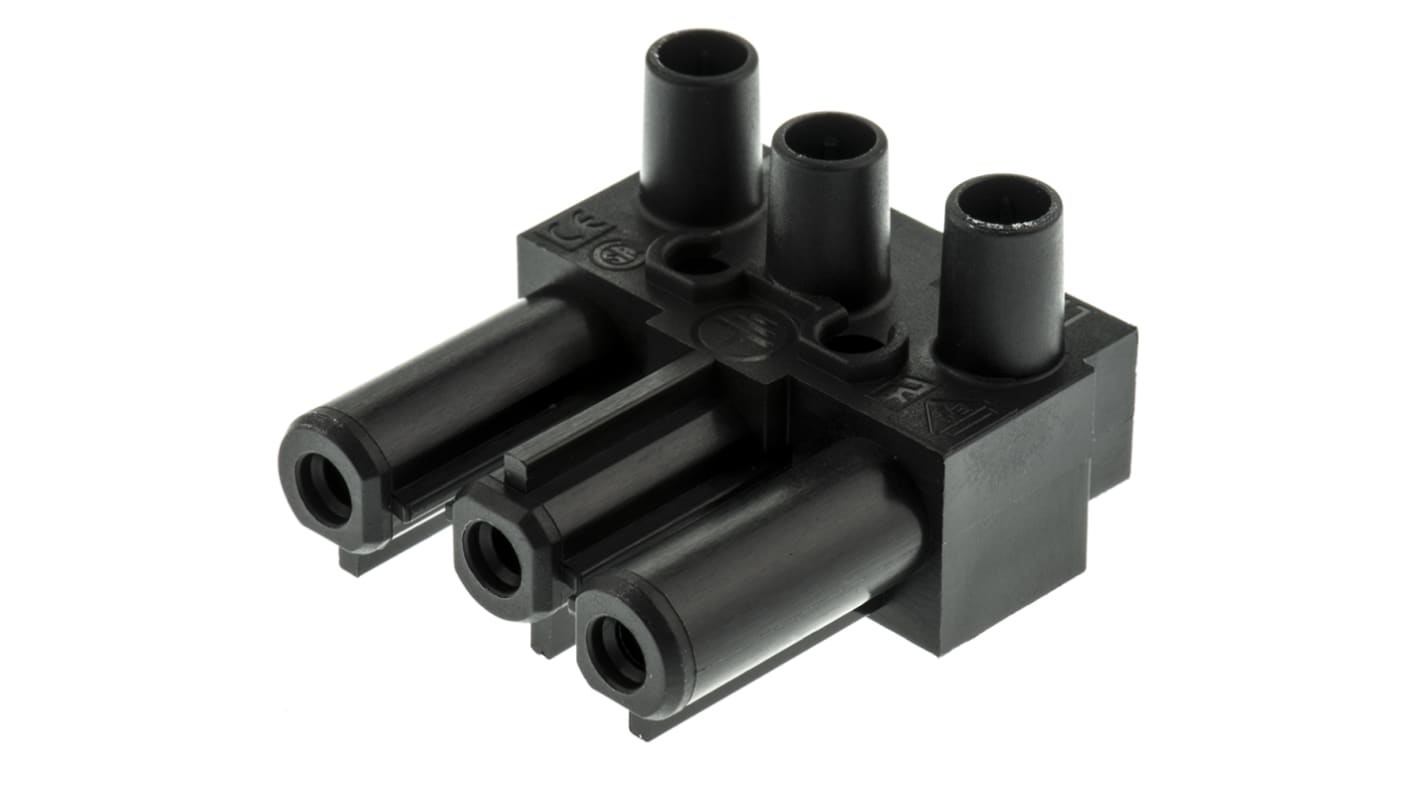

Wieland GST18 Series Connector, 3-Pole, Female, Cable Mount, 16A, IP20

View all Lighting Connectors

Subtotal (1 pack of 5 units)*

£11.11

(exc. VAT)

£13.33

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 175 unit(s) ready to ship
  • Plus 585 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£2.222£11.11

*price indicative

RS Stock No.:
342-3226
Mfr. Part No.:
92.031.3258.1
Brand:
Wieland
Find similar products by selecting one or more attributes.
Select all

Brand

Wieland

Pole Format

3

Series

GST18

Gender

Female

Plug/Socket

Socket

Colour

Black

Type

Connector

Mounting Type

Cable Mount

Current Rating

16A

Voltage Rating

250 V

IP Rating

IP20

Wire Size

0.5 → 2.5 mm²

Contact Material

Brass

Termination Method

Screw Down

Contact Plating

Tin

COO (Country of Origin):
DE

Cable Mount Plugs and Sockets


Available in standard screw connection with or without strain relief.
Strain relief version includes top cover.
Also available in spring loaded connection versions

Standards

DIN VDE 0628, EN/IEC 61535 (in draft).

Approvals

UL 1977 approved for Use in Data, Signal, Control and Power Applications

Standards

DIN; VDE 0628; EN; IEC 61535; DIN ; VDE 0470


GST18 Compact Connectors


The GST18 is a pluggable device connector for use in lighting and other factory-assembled equipment. Mechanical and color coding provides for a safe and easy separation of different applications, virtually eliminating mis-mating errors. An IP20 touch-safe design, a leading earth contact and an optional locking device all contribute to ensure the safest possible connections.
