SICK V300 Series, 1 Beam(s), 2.12 m Max Range
- RS Stock No.:
- 701-9238
- Mfr. Part No.:
- V30W-0101000
- Brand:
- SICK
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£2,140.23
(exc. VAT)
£2,568.28
(inc. VAT)
- RS Stock No.:
- 701-9238
- Mfr. Part No.:
- V30W-0101000
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Series | V300 | |
| Maximum Scanning Distance | 2.12m | |
| Safety Type | 3 | |
| Standards/Approvals | D | |
| Number of Beams | 1 | |
| Maximum Response Time | 20ms | |
| Protective Height | 90mm | |
| Length | 90mm | |
| Height | 50mm | |
| Peak Wavelength | 850nm | |
| Width | 90mm | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Series V300 | ||
Maximum Scanning Distance 2.12m | ||
Safety Type 3 | ||
Standards/Approvals D | ||
Number of Beams 1 | ||
Maximum Response Time 20ms | ||
Protective Height 90mm | ||
Length 90mm | ||
Height 50mm | ||
Peak Wavelength 850nm | ||
Width 90mm | ||

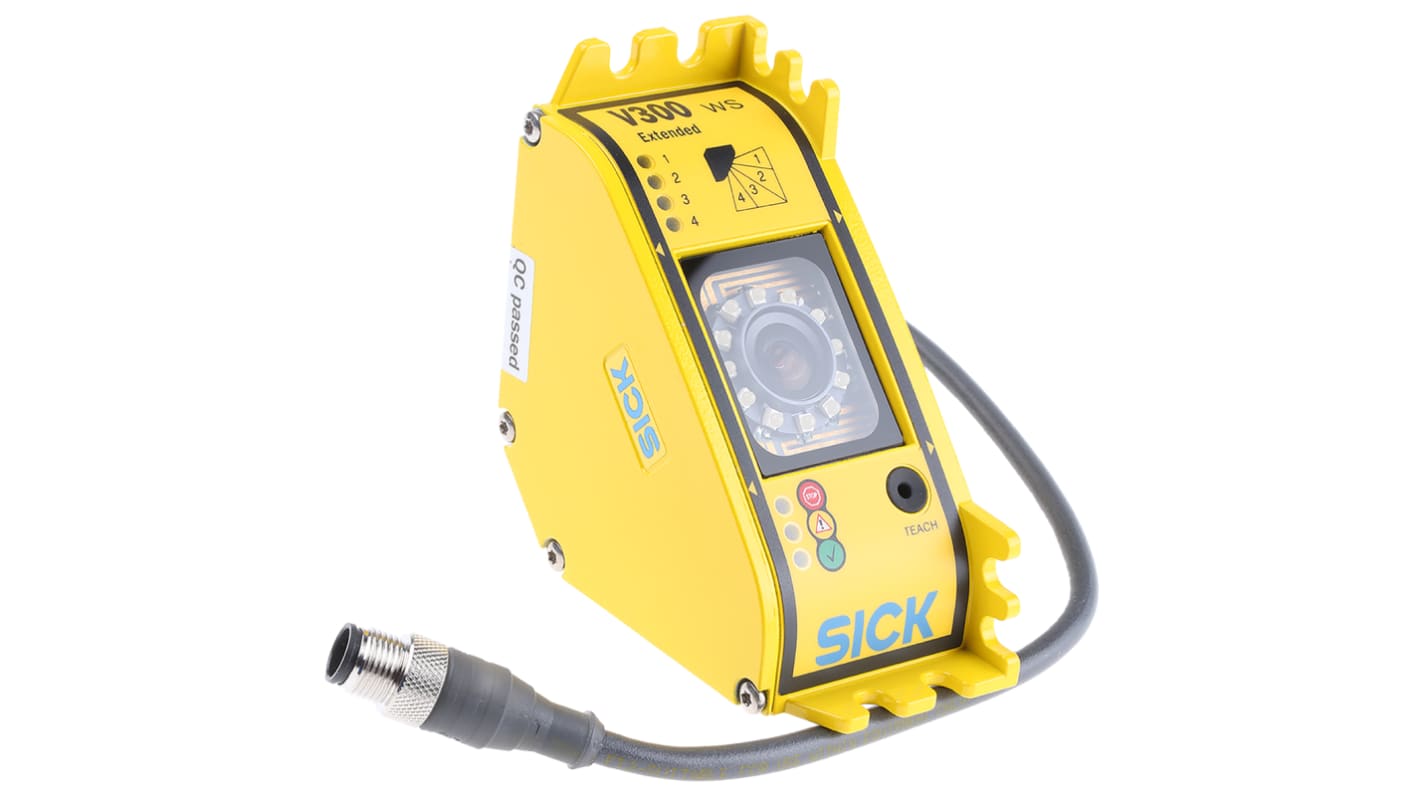

Sick Safety Camera System
The Sick V300 series work station extended is a single beam safety camera system with a 2.12m maximum range for scanning. It has a supply voltage of 24VDC and switching current which ranges between 6mA and 250mA. This system has a male connector M12 with 8-pin as the connection type and the status and diagnostic display are shown by the LEDs. The housing material of the camera system is die-cast aluminium.
Supplied with Including teaching pen, operating instructions on CD-ROM and Quickstart (instructions for quick commissioning)
Note:
A resolution set has to be ordered separately
Features and Benefits
Simple to install, no specialist knowledge or configuration software needed
Intuitive one-button set up
No blind spots
Peak wavelength is 850nm
One system fits all protective field sizes
Components and the evaluation unit are integrated into a single compact housing
Sensor can handle tolerances of several centimetres along the optical axis
Flexible protective field geometries
Automatic alignment
Restart/reset, EDM integrated
2 x 250mA switching outputs
1 x EDM input, 1 x restart interlock input, 1 x teach/sync input
Response time is 20ms
Operating temperature ranges between 0°C and 50°C
Applications
Machine safeguarding
Mining and Quarrying
Factory automation industry
Pharmaceutical industry
Rail and transport
Certifications
CE certified
cULus certified
IP54 (enclosure) rated
IEC 61496
IEC 61508
EN 62061
EN ISO 13849
EN ISO 13849
EN 50178
EN 60068-2-6
EN 60068-2-27
