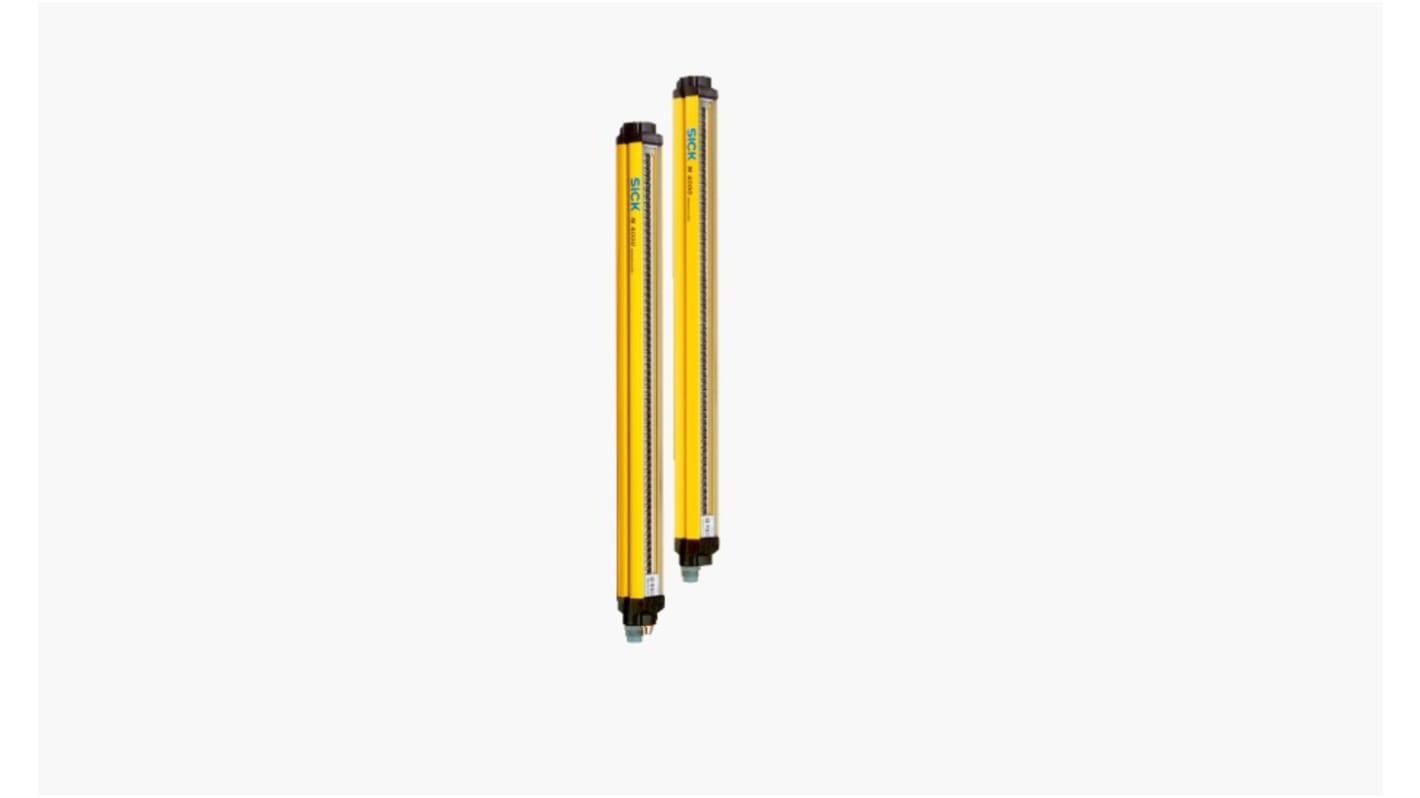

SICK M40S Series Light Curtain Sender, 30mm Resolution
- RS Stock No.:
- 285-6774
- Mfr. Part No.:
- M40S-66A303AA0
- Brand:
- SICK
Subtotal (1 unit)*
£2,038.63
(exc. VAT)
£2,446.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,038.63 |
*price indicative
- RS Stock No.:
- 285-6774
- Mfr. Part No.:
- M40S-66A303AA0
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Series | M40S | |
| Beam Resolution | 30mm | |
| Component Type | Sender | |
| Safety Type | Type 4 | |
| SIL IEC 61508 | SIL 3 | |
| PL EN ISO 13849-1 | PL e | |
| Protective Height | 1200mm | |
| Maximum Scanning Distance | 21m | |
| Supply Voltage | 24 V dc | |
| Length | 1.466m | |
| Width | 52mm | |
| Dimensions | 1466 x 52 mm | |
| Terminal Type | M26 Connector | |
Select all | ||
|---|---|---|
Brand SICK | ||
Series M40S | ||
Beam Resolution 30mm | ||
Component Type Sender | ||
Safety Type Type 4 | ||
SIL IEC 61508 SIL 3 | ||
PL EN ISO 13849-1 PL e | ||
Protective Height 1200mm | ||
Maximum Scanning Distance 21m | ||
Supply Voltage 24 V dc | ||
Length 1.466m | ||
Width 52mm | ||
Dimensions 1466 x 52 mm | ||
Terminal Type M26 Connector | ||
- COO (Country of Origin):
- DE
Overview
The UE403 muting switching amplifier with the M4000 Advanced Curtain safety light curtain forms an efficient solution for conventional muting applications with automated material transport. It is particularly well suited when high resolutions are required
The modular design allows the specific coordination of device features to requirements and provides an economical solution for high machine safety. In addition, sens:Control devices, accessories, and services complete the product offering and form package
At a glance
Type 4 (IEC 61496), SIL3 (IEC 61508), PL e (EN ISO 13849)
Rugged housing with three mounting grooves
7-segment display
Resolution 14 mm or 30 mm, scanning range up to 19 m
External device monitoring (EDM), restart interlock (RES), application diagnostic o
Rugged housing with three mounting grooves
7-segment display
Resolution 14 mm or 30 mm, scanning range up to 19 m
External device monitoring (EDM), restart interlock (RES), application diagnostic o
Your Benefit
The high resolution (14 mm / 30 mm) reduces the safety distances for access protection, with and without muting
The rugged housing and high power reserve enable reliable use, even in harsh ambient conditions
Mounting grooves on three sides ensure greater
The rugged housing and high power reserve enable reliable use, even in harsh ambient conditions
Mounting grooves on three sides ensure greater
Applications
Use as access protection with short safety distances with and without muting
Robots and automatic machining centers
Machine tools and assembly lines
Punching machines and water jet cutting/laser cutting machines
Storage and conveyor
Packaging machinery an
Robots and automatic machining centers
Machine tools and assembly lines
Punching machines and water jet cutting/laser cutting machines
Storage and conveyor
Packaging machinery an
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
