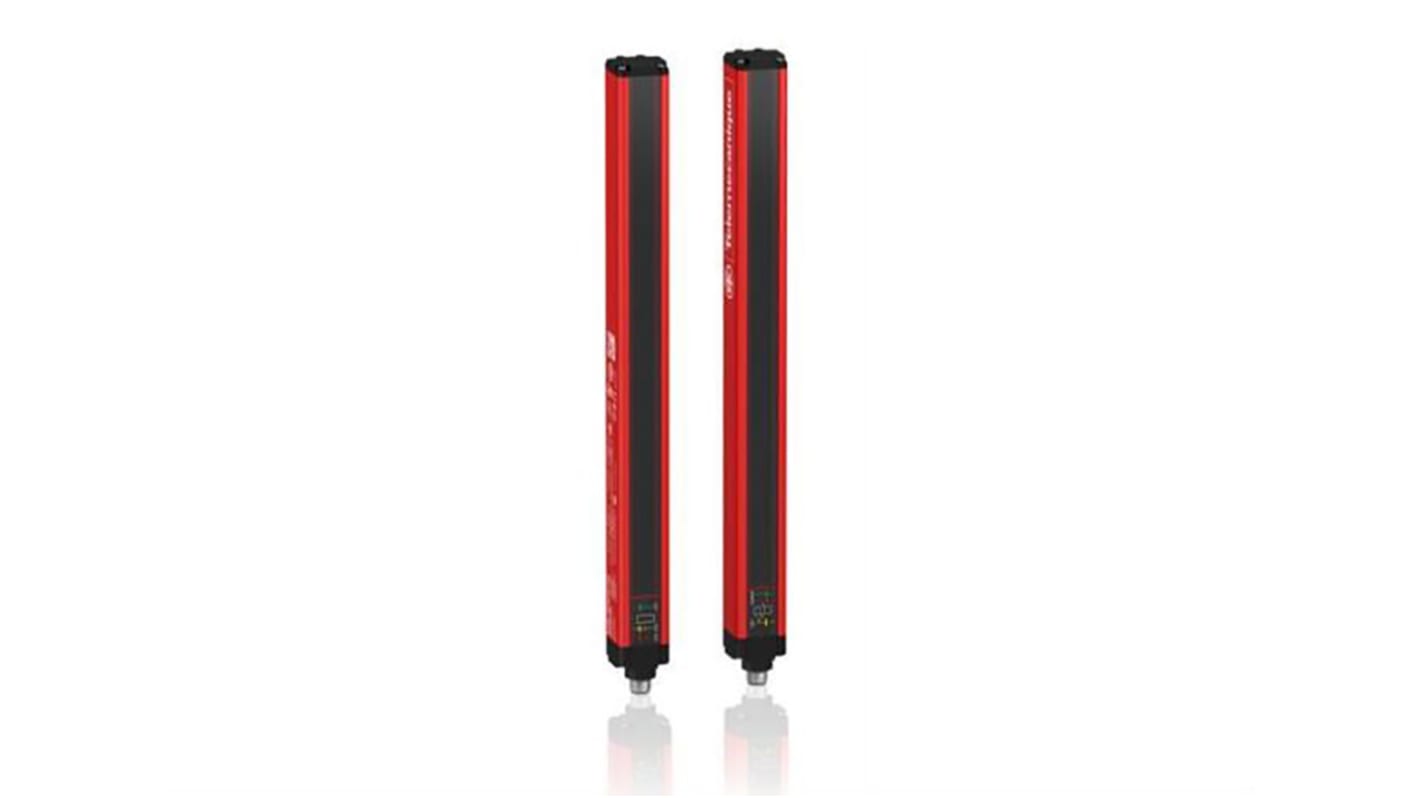

Telemecanique Sensors XUSL4M Series Preventa Light Curtain Receiver, Transmitter, 41 Beam(s), 300mm Resolution
- RS Stock No.:
- 196-4107
- Mfr. Part No.:
- XUSL4MA4BB091N
- Brand:
- Telemecanique Sensors
Subtotal (1 pair)*
£2,161.40
(exc. VAT)
£2,593.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pair(s) | Per Pair |
|---|---|
| 1 + | £2,161.40 |
*price indicative
- RS Stock No.:
- 196-4107
- Mfr. Part No.:
- XUSL4MA4BB091N
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Range | Preventa | |
| Series | XUSL4M | |
| Beam Resolution | 300mm | |
| Component Type | Receiver, Transmitter | |
| Safety Type | 4 | |
| SIL IEC 61508 | 3 | |
| Number of Beams | 41 | |
| Protective Height | 910mm | |
| Minimum Scanning Distance | 0m | |
| Maximum Scanning Distance | 4 m, 12 m | |
| Maximum Response Time | 5.5 ms | |
| Supply Voltage | 24 V dc | |
| Length | 55mm | |
| Features | 2 PNP Output, Automatic/Manual Restart, Multi-Colour LEDs | |
| Dimensions | 55 x 50 x 1085 mm | |
| Width | 50mm | |
| Terminal Type | 5-Pin M12 Female Connectors (Receiver), 5-Pin M12 Female Connectors (Transmitter), 5-Pin M12 Male Connectors (Transmitter), 12-Pin M12 Male Connectors (Receiver) | |
| Application | Body | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Range Preventa | ||
Series XUSL4M | ||
Beam Resolution 300mm | ||
Component Type Receiver, Transmitter | ||
Safety Type 4 | ||
SIL IEC 61508 3 | ||
Number of Beams 41 | ||
Protective Height 910mm | ||
Minimum Scanning Distance 0m | ||
Maximum Scanning Distance 4 m, 12 m | ||
Maximum Response Time 5.5 ms | ||
Supply Voltage 24 V dc | ||
Length 55mm | ||
Features 2 PNP Output, Automatic/Manual Restart, Multi-Colour LEDs | ||
Dimensions 55 x 50 x 1085 mm | ||
Width 50mm | ||
Terminal Type 5-Pin M12 Female Connectors (Receiver), 5-Pin M12 Female Connectors (Transmitter), 5-Pin M12 Male Connectors (Transmitter), 12-Pin M12 Male Connectors (Receiver) | ||
Application Body | ||
Preventa XUSL Safety Light Curtain Kits (Comprising: Receiver and Transmitter)
Telemecanique Preventa safety light curtains from the XUSL Series. Type 4 with integrated muting software.
Typical applications would include robotic systems, assembly and packaging lines, welding equipment and machine tools. All models are highly reliable and excellent quality.
Features & Benefits
Automatic or Manual start
IP65/67 rated
Telemecanique Preventa safety light curtains from the XUSL Series. Type 4 with integrated muting software.
Typical applications would include robotic systems, assembly and packaging lines, welding equipment and machine tools. All models are highly reliable and excellent quality.
Features & Benefits
Automatic or Manual start
IP65/67 rated
