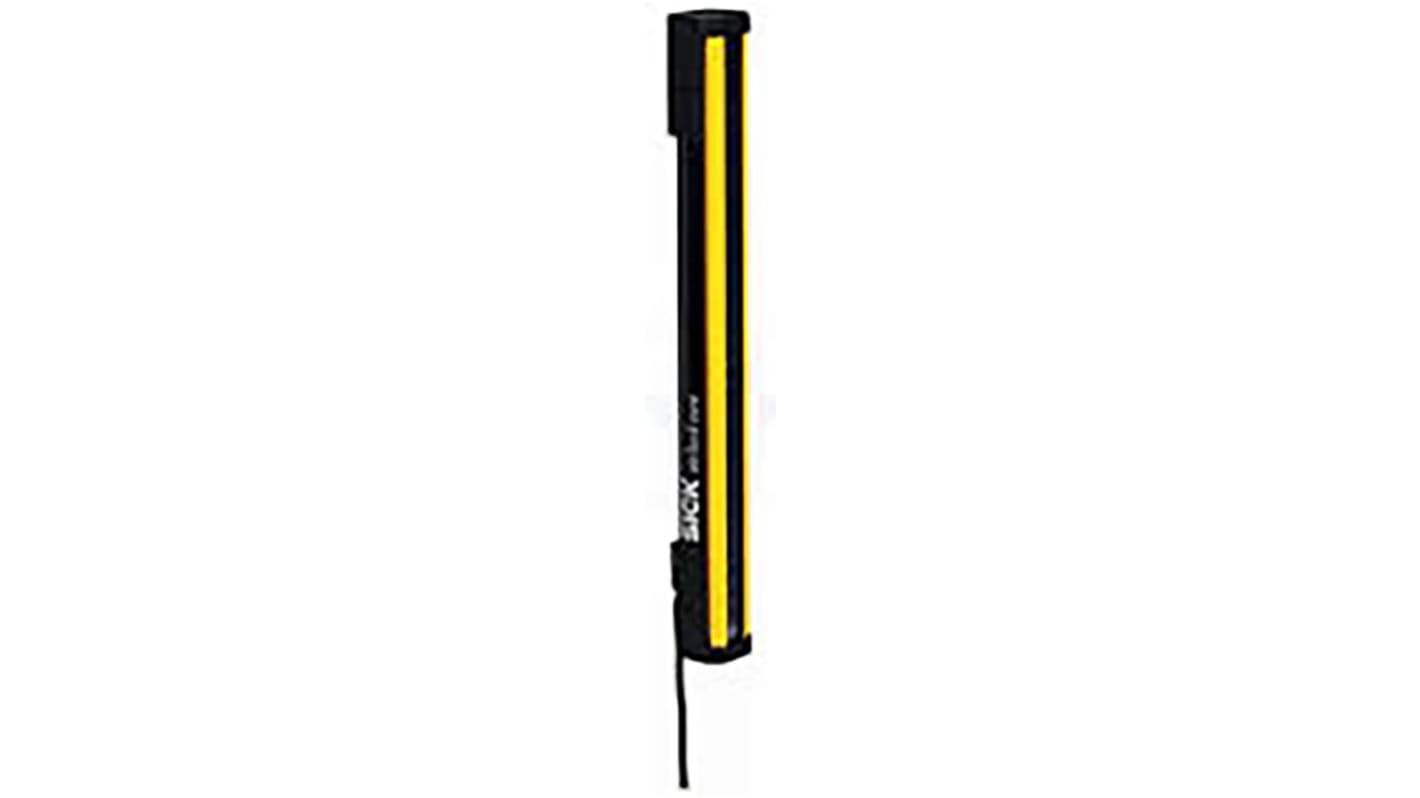

SICK deTec4 Core Series deTec4 Core Light Curtain Receiver, 30mm Resolution

View all Light Curtains

Subtotal (1 unit)*

£1,194.33

(exc. VAT)

£1,433.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship from another location
  • Plus 1 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,194.33

*price indicative

RS Stock No.:
136-3379
Distrelec Article No.:
301-25-332
Mfr. Part No.:
C4C-EA12030A10000
Brand:
SICK
Find similar products by selecting one or more attributes.
Select all

Brand

SICK

Range

deTec4 Core

Series

deTec4 Core

Beam Resolution

30mm

Component Type

Receiver

Protective Height

1200mm

Minimum Scanning Distance

0m

Maximum Scanning Distance

12m

Maximum Response Time

14 ms

Supply Voltage

24 V dc

Height

30.7mm

Length

1.213m

Width

34mm

Terminal Type

5-Pin M12 Connector

Application

Industrial

Features

Quick Commissioning Thanks to Integrated LED Display & Automatic Calibration, Rugged & Reliable, Simple Assembly with Innovative Mounting & No Blind Zones

Dimensions

1213 x 34 x 30.7 mm

COO (Country of Origin):
DE

Sick deTec4 Core Safety Light Curtain


The deTec4 Core from Sick has an innovative bracket system, no blind zones and an increased protective field height range of 300 mm to 2100 mm. The rear of the safety light curtain has a half rounded contour which allows the brackets to be positioned in any location on the housing. The integrated LED displays, diagnostic functions and automatic distance measurements of the deTec4 Core reduce costs and save time during installation. It has an IP65 / IP67 enclosure rating and a minimum operating temperature of -30°C making it suitable for harsh conditions and low temperature environments.

Features & Benefits


Simple assembly with innovative mounting
No blind zones
Integrated LED display
Resolution of 14 or 30 mm
Protective field height of 300 mm to 2100 mm
Automatic calibration on the protective field width up to 10 m range
Ambient operating temperature of -30°C to +55°C
Enclosure rating IP65 & IP67
Flexi Loop-compatible M12 male connector

Applications


The deTec4 Core safety light curtain is ideal for machine building applications such as handling & assembly, food & beverages and packaging machines.

Note: For a complete light curtain system (sender and receiver), please select the complementary component shown in Accessories
