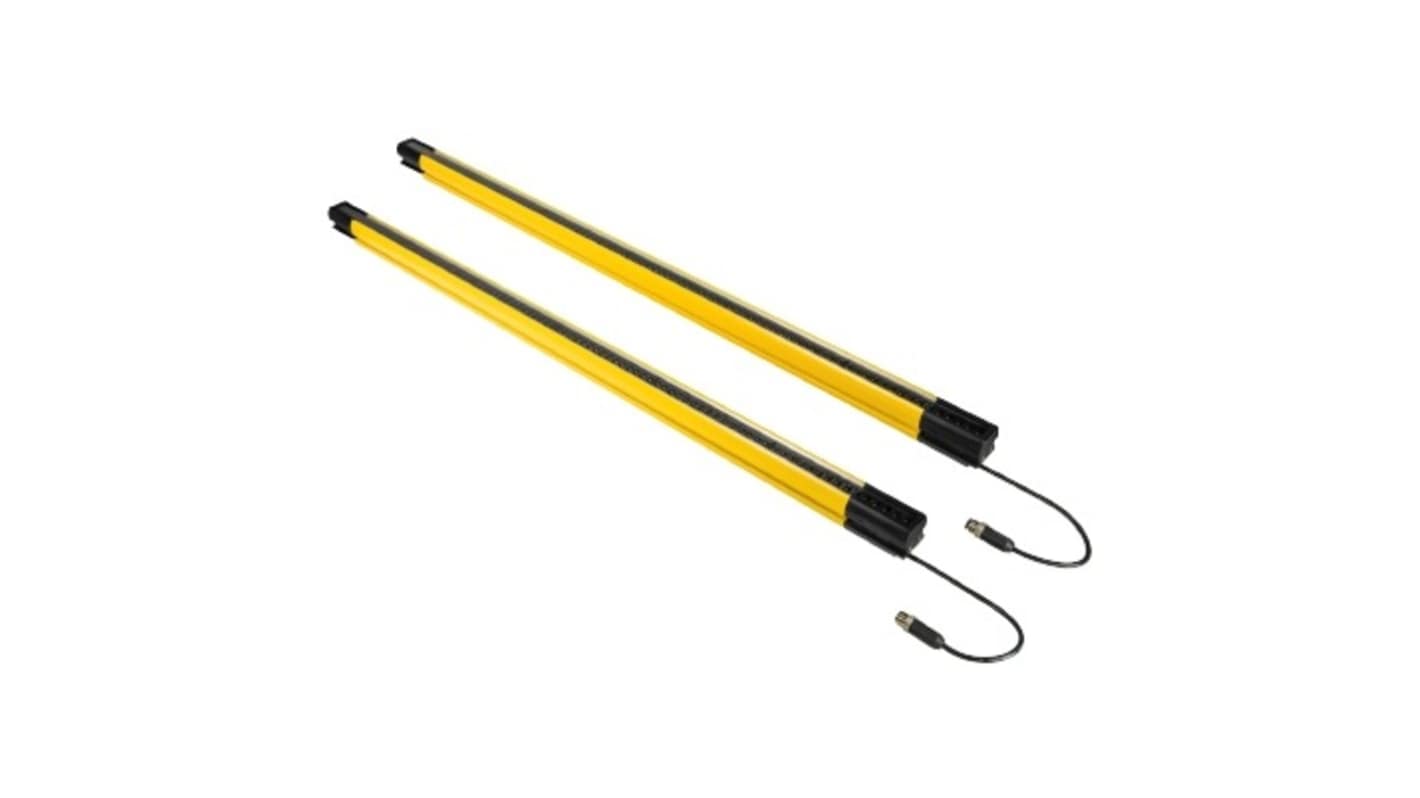

Wieland R1 Series Light Curtain Transmitter, Receiver, 30 mm Resolution
- RS Stock No.:
- 666-138
- Mfr. Part No.:
- R1.612.0300.0
- Brand:
- Wieland
Subtotal (1 unit)*
£697.56
(exc. VAT)
£837.07
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £697.56 |
*price indicative
- RS Stock No.:
- 666-138
- Mfr. Part No.:
- R1.612.0300.0
- Brand:
- Wieland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wieland | |
| Product Type | Light Curtain | |
| Series | R1 | |
| Beam Resolution | 30mm | |
| Component Type | Transmitter, Receiver | |
| Safety Type | 4 | |
| Standards/Approvals | ISO 13849-1, EN 61496-1, cULus | |
| Protective Height | 300mm | |
| Maximum Supply Voltage | 24V | |
| Minimum Scanning Distance | 0.2m | |
| Maximum Scanning Distance | 20m | |
| Terminal Type | M12 Connector | |
| Select all | ||
|---|---|---|
Brand Wieland | ||
Product Type Light Curtain | ||
Series R1 | ||
Beam Resolution 30mm | ||
Component Type Transmitter, Receiver | ||
Safety Type 4 | ||
Standards/Approvals ISO 13849-1, EN 61496-1, cULus | ||
Protective Height 300mm | ||
Maximum Supply Voltage 24V | ||
Minimum Scanning Distance 0.2m | ||
Maximum Scanning Distance 20m | ||
Terminal Type M12 Connector | ||
The Wieland safety light curtain base includes transmitter and receiver units with type 4 protection and PL e safety level. It features a 30 mm resolution for hand protection and a protective field height of 300 mm. Operates at 24 V supply voltage and connects via 5-pole M12 connectors on both transmitter and receiver. A mounting L-bracket set is included.
Sensor element is transmitter and receiver
Degree of protection (IP) is IP65/IP67
Housing material is aluminum
