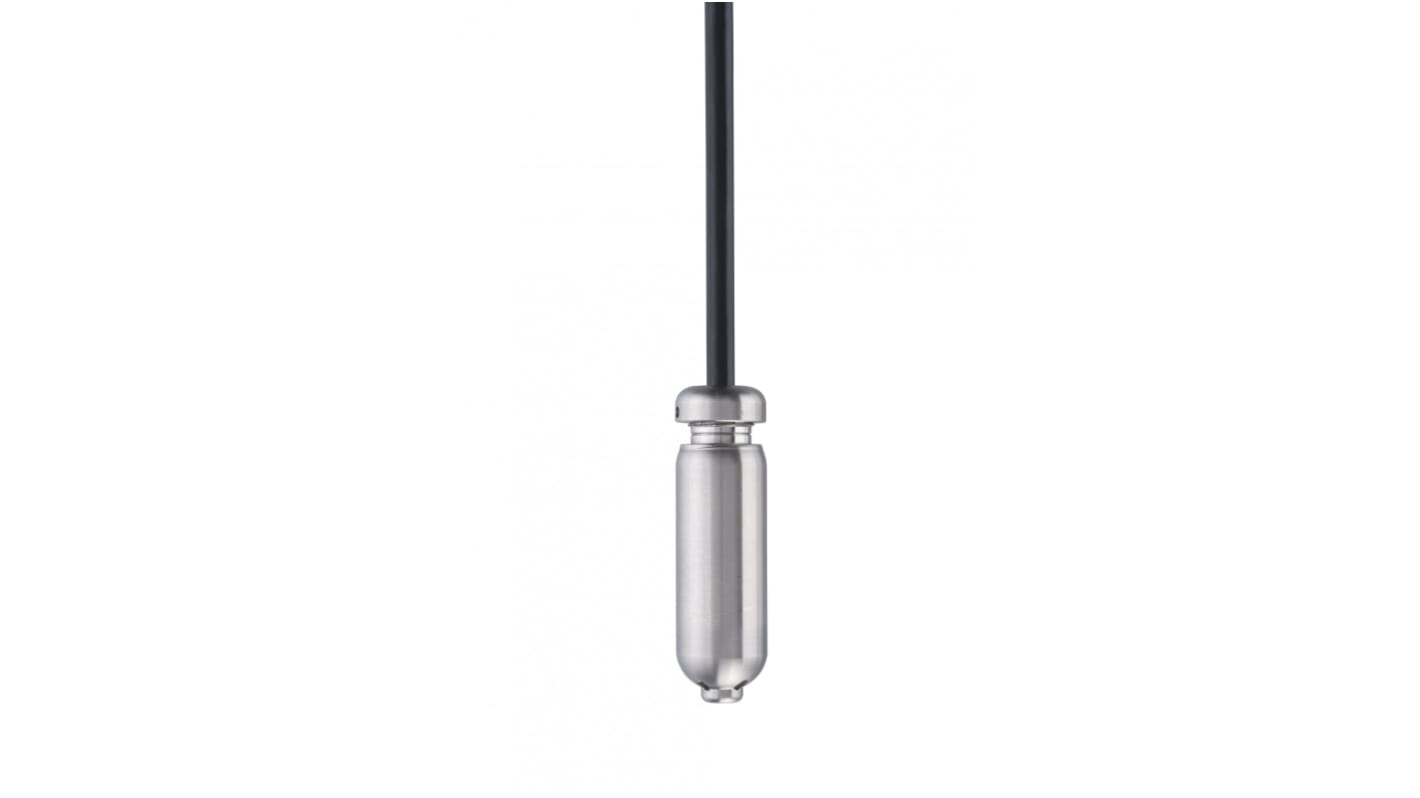

Sensata / Cynergy3 ILLS Series Pressure Level Transmitter, 4-20mA Output, Cable, Stainless Steel Body

View all Level Sensors
Discontinued

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
WIKA LS-10 Series Level Sensor Level Probe, 4-20mA Output, Cable Mount, Stainless Steel Body
RS Stock No.
268-9006

Each

£465.68

(exc. VAT)

£558.82

(inc. VAT)

RS Stock No.:
869-7659
Mfr. Part No.:
ILLS-G0750-5-010
Brand:
Sensata / Cynergy3
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Cynergy3

Device Type

Pressure

Mounting Type

Cable

Switch Output

4-20mA

Body Material

Stainless Steel

Cable Length

10m

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+60°C

Maximum DC Voltage

32V

Maximum Current

28 mA

Maximum Pressure

50bar

Series

ILLS

COO (Country of Origin):
GB

ILLS Submersible Level Transmitter


Submersible level sensors are a simple reliable way of measuring the level of liquids such as water, oils and fuel. Typical applications include Static tank level, rainwater harvesting, IBC tote or pallet tank, container and chamber level. Submersible level sensors provide stable, reliable and repeatable measurements in situations when other level sensing technologies are impractical or not accurate enough. These sensors use piezo-resistive technology and are contained within a stainless steel casing. Supplied with traceable serial number and calibration certificate.

Accuracy <0.5% FS
1mWG to 10mWG pressure range
Stainless Steel Casing
Reverse polarity protection
