Siemens 7ML5501 Series Capacitance Switch Level Capacitance, Vertical, ATEX-Rated, Stainless Steel, Housing Stainless

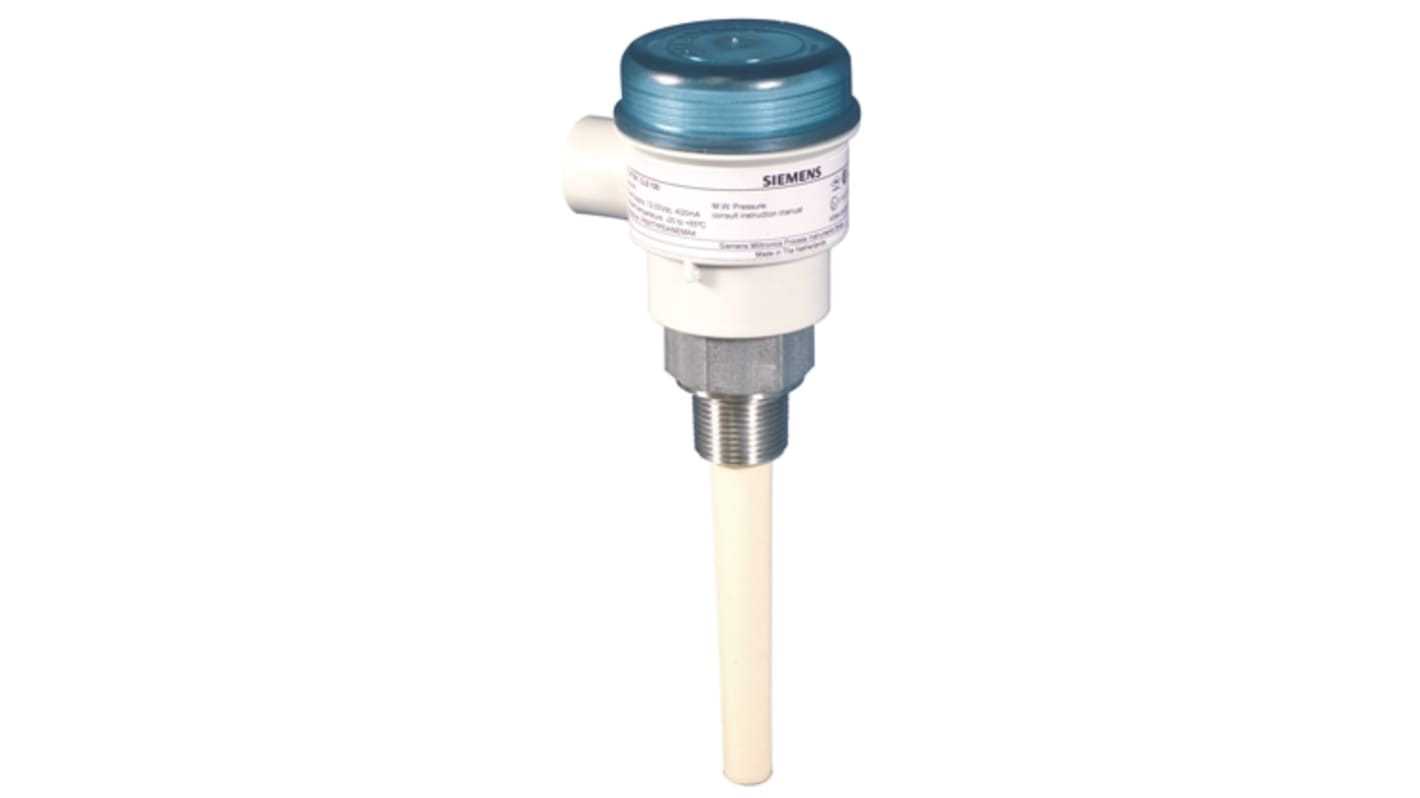

Image representative of range

View all Level Sensors
Unavailable
RS will no longer stock this product.
RS Stock No.:
804-3856
Mfr. Part No.:
7ML5501-0JA70
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Product Type

Level Capacitance

Device Type

Capacitance Switch

Mount Type

Vertical

Housing Material

Stainless Steel

Cable Length

100m

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

100°C

Maximum DC Voltage

30V dc

Maximum Pressure

10bar

Gasket Material

Stainless Steel

Standards/Approvals

ENV2, CE, Lloyd’s, ENV1, FM, CSA, C-Tick, ENV5, PED 97/23/EC

Series

7ML5501

Hazardous Area Certification

ATEX

COO (Country of Origin):
MT

CLS100 Pointek Capacitance Point Level Sensor


Simens CLS100 Pointek range provide accurate, reliable, repeatable level detection. Inverse frequency shift technology uses the inverse relationship between capacitance frequency to monitor fluid level. Small changes in level result in a large change in frequency resulting in excellent accuracy. Compact design to aid installation in tight spaces, on small chemical batch tanks, for empty pipe line detection or for water/oil lubrication pump reservoirs.

Tip sensitive

Versatile, compact 100mm insertion level switch

Suitable for liquids, solids, slurries, foam and interface applications

Inverse ’Frequency Shift’ technology for difficult applications where vibrating fork (tuning fork) or traditional sensors prove unsuitable

High resistance to material build-up

Easy to install and calibrate

PPS (Polyphenylene Sulfide) corrosion-resistant material offers excellent chemical compatibility

Low or zero maintenance - no moving parts

May be installed in tight spaces e.g. a high and low level switch on

Approvals

CSA Certified, FM
