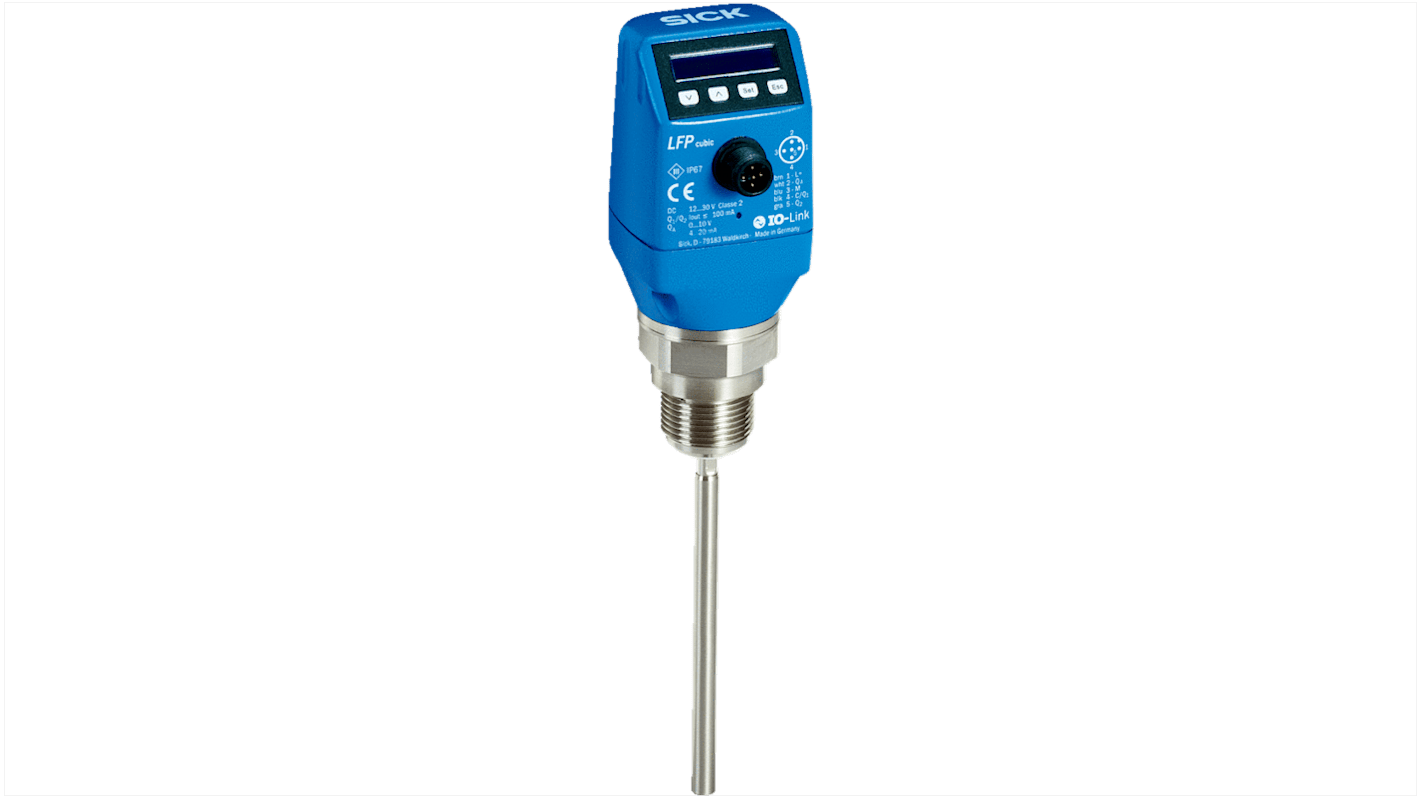

SICK LFP0900 Series TDR Level Sensor Level Sensor, NPN, PNP Output, Plastic PBT Body
- RS Stock No.:
- 285-8825
- Mfr. Part No.:
- LFP0900-A4NMB
- Brand:
- SICK
Subtotal (1 unit)*
£424.75
(exc. VAT)
£509.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £424.75 |
*price indicative
- RS Stock No.:
- 285-8825
- Mfr. Part No.:
- LFP0900-A4NMB
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Device Type | TDR Level Sensor | |
| Switch Output | NPN, PNP | |
| Body Material | Plastic PBT | |
| Cable Length | 900mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +60°C | |
| Maximum DC Voltage | 12 → 30V | |
| Thread Size | M12 | |
| Process Connection | Probe | |
| Maximum Pressure | 10bar | |
| Series | LFP0900 | |
| Current Rating | 100 mA | |
| Standards Met | CE | |
Select all | ||
|---|---|---|
Brand SICK | ||
Device Type TDR Level Sensor | ||
Switch Output NPN, PNP | ||
Body Material Plastic PBT | ||
Cable Length 900mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +60°C | ||
Maximum DC Voltage 12 → 30V | ||
Thread Size M12 | ||
Process Connection Probe | ||
Maximum Pressure 10bar | ||
Series LFP0900 | ||
Current Rating 100 mA | ||
Standards Met CE | ||
- COO (Country of Origin):
- DE
Overview
The LFP Cubic is a level sensor for liquids using TDR technology – a process for determining the time of flight of electromagnetic waves. The time difference between the sent pulse and the reflected pulse is used to generate a level signal. The sensor can
It can even be used in deposit-forming and foaming liquids. The sensor’s intuitive setup uses four pushbuttons and a display to ensure quick and easy adaptation to the application. Remote amplifier, IO-Link interface, and a design which features a process
At a glance
Level sensor for liquids
No mechanical moving parts
Interchangeable rod probe which can be cut to lengths between 200 mm and 2,000 mm (cable probe up to 4,000 mm)
Resistant to deposit formation
Process temperature up to 100 °C,process pressure up to 10 ba
No mechanical moving parts
Interchangeable rod probe which can be cut to lengths between 200 mm and 2,000 mm (cable probe up to 4,000 mm)
Resistant to deposit formation
Process temperature up to 100 °C,process pressure up to 10 ba
Your Benefit
Rugged design increases service life
High flexibility with interchangeable rod probe or cable probe that can be cut to length
Cost savings due to multiple output signals: One system for both point level and continuous level measurement
Maintenance-free an
High flexibility with interchangeable rod probe or cable probe that can be cut to length
Cost savings due to multiple output signals: One system for both point level and continuous level measurement
Maintenance-free an
Applications
Monitoring coolants and lubricants in machine tooling
Monitoring cleanser and detergents in cleaning and washing machines
Monitoring filling tanks in automobile assembly
Level measurement in industrial processes with difficult ambient conditions
Monitoring cleanser and detergents in cleaning and washing machines
Monitoring filling tanks in automobile assembly
Level measurement in industrial processes with difficult ambient conditions
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
