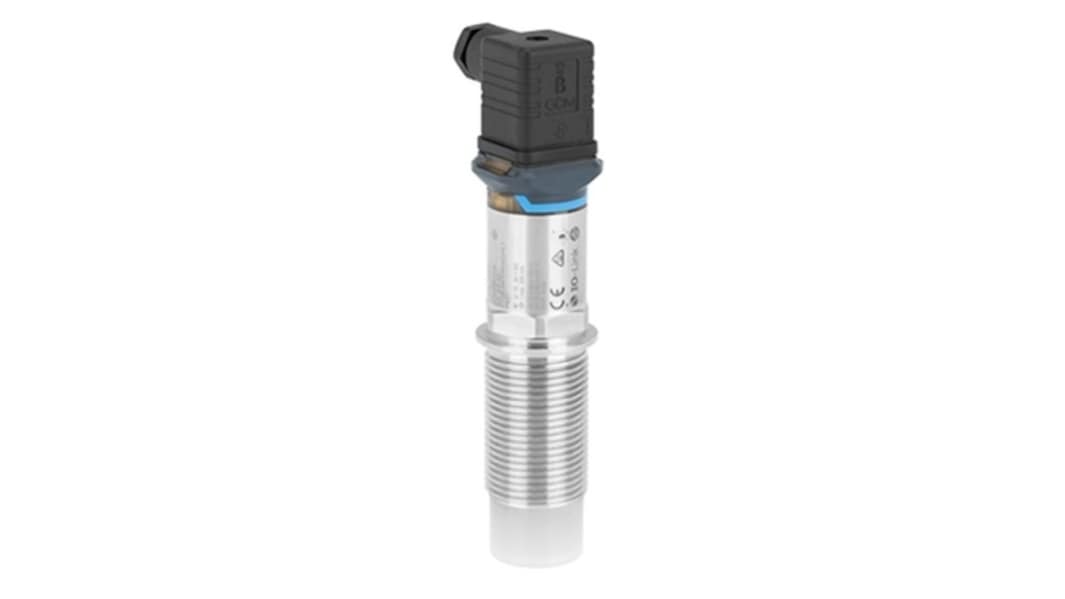

Endress+Hauser Nivector FTI26 Series Capacitance Level Switch Level Sensor, Lateral, ATEX-Rated, Housing Polycarbonate

Image representative of range

View all Level Sensors

Subtotal (1 unit)*

£170.72

(exc. VAT)

£204.86

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 1 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£170.72

*price indicative

RS Stock No.:
316-296
Mfr. Part No.:
FTI26-AA4UWDG+PA
Brand:
Endress+Hauser
Find similar products by selecting one or more attributes.
Select all

Brand

Endress+Hauser

Device Type

Capacitance Level Switch

Product Type

Level Sensor

Mount Type

Lateral

Housing Material

Polycarbonate

Cable Length

5m

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

80°C

Interface Type

IO-Link

Maximum DC Voltage

30V dc

Maximum Current

200mA

Maximum Pressure

6bar

Standards/Approvals

EHEDG, EU 1935/2004, FDA, RCM, RoHS, CE mark, EAC

Series

Nivector FTI26

Hazardous Area Certification

ATEX

COO (Country of Origin):
DE

Endress+Hauser FTI26 Series Capacitance Level Switch


Capacitive point level switch for powder and fine-grained solids for the food industry.

The Nivector FTI26 is a point level switch for powdered or granular solids in the food and other industries. The capacitance device offers high sensitivity and build-up performance. Thanks to the compact design, installation is possible even when access is restricted. The optional IO-Link capability allows easy parameter setting.

Onsite function check via LED indication

IP69 protection rated

FDA compliant

DC PNP Output and IO Link communication

Features & Benefits


Easy installation even in tight conditions or where access is restricted thanks to the compact design

Fulfillment of all relevant hygienic requirements (3-A, EHEDG, FDA, EG1935/2004)

No individual adjustment to each medium necessary

Industry 4.0 ready with IO-Link communication
