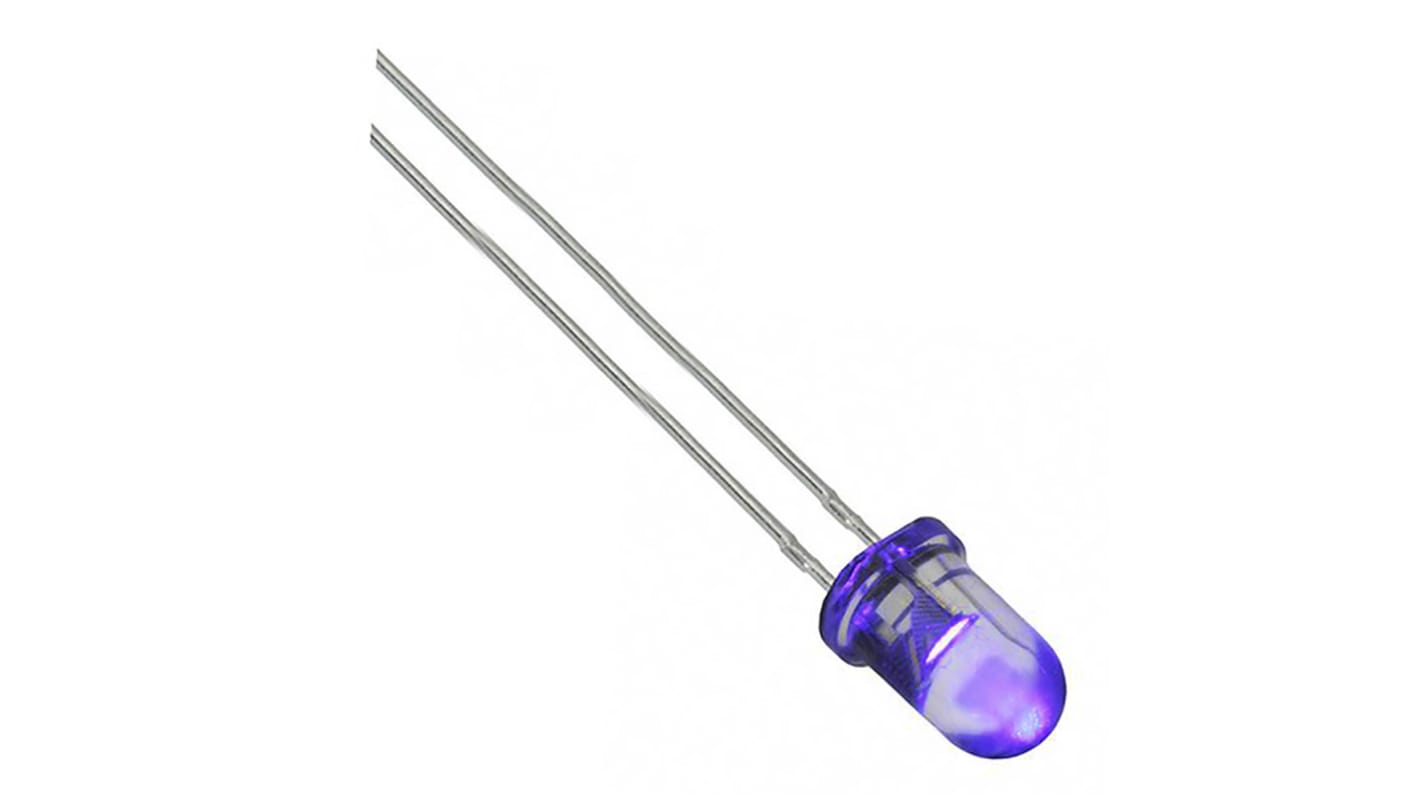

4 V Purple LED 5mm Through Hole, Lumex SSL-LX5093VC

  • RS Stock No. 888-7218
  • Mfr. Part No. SSL-LX5093VC
  • Brand Lumex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Lumex Through-hole LED Range

Visible Light LEDs, Lumex

Specifications
Attribute Value
LED Colours Purple
Package Type 5mm (T-1 3/4)
Mounting Type Through Hole
Number of LEDs 1
Forward Voltage 4 V
Luminous Intensity 2200 mcd
Number of Pins 2
Viewing Angle 20 °
Lens Shape Dome
Dimensions 9.6 (H) x 5.9 (Dia.)mm
Lens Finish Clear
Forward Current 30mA
Lens Colour Clear
Available to back order for despatch 04/02/2020
Price Each (In a Pack of 50)
£ 0.637
(exc. VAT)
£ 0.764
(inc. VAT)
Units
Per unit
Per Pack*
50 +
£0.637
£31.85
*price indicative
