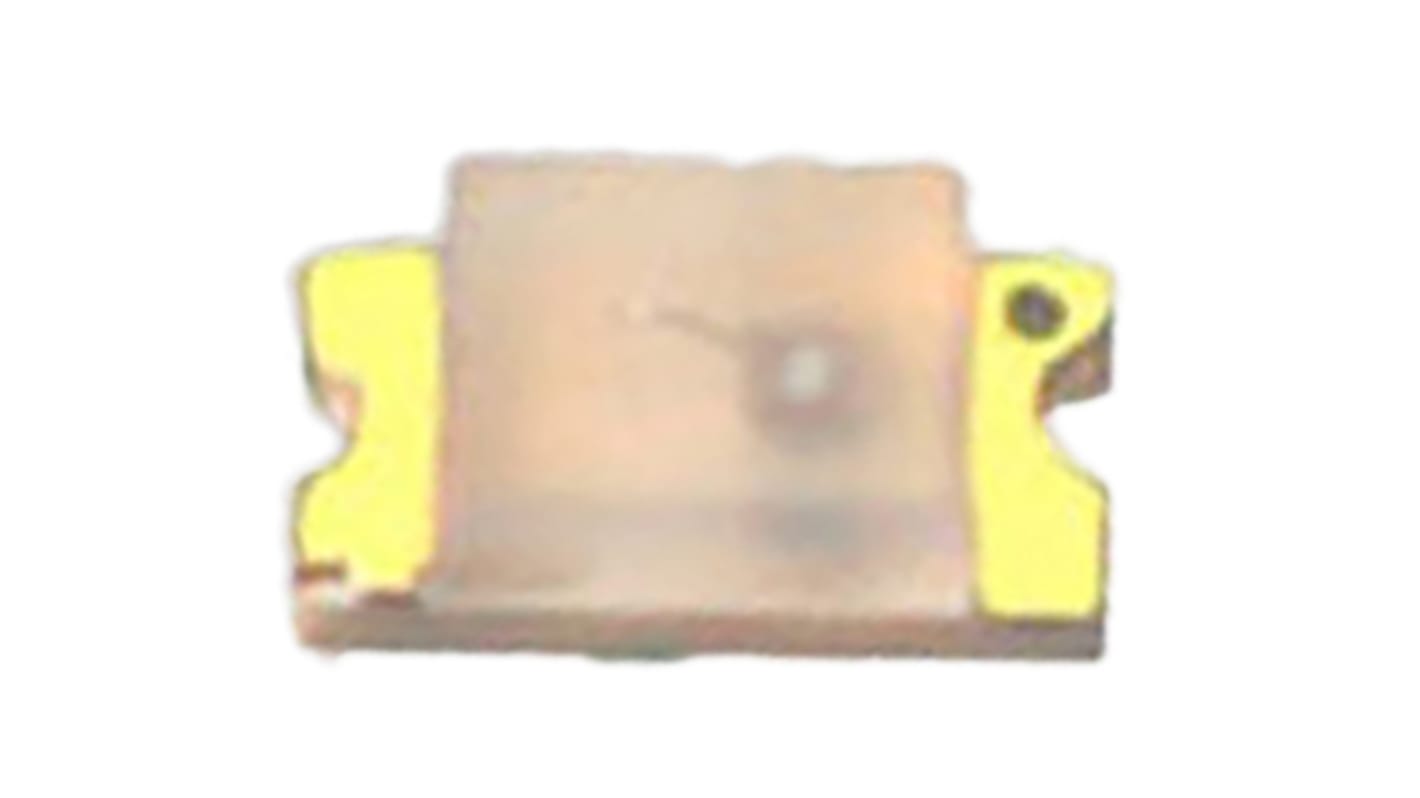

Lumex2.6 V Yellow LED 1613 (0605) SMD, SML-LX0603YW-TR
- RS Stock No.:
- 888-6035
- Mfr. Part No.:
- SML-LX0603YW-TR
- Brand:
- Lumex
Discontinued
- RS Stock No.:
- 888-6035
- Mfr. Part No.:
- SML-LX0603YW-TR
- Brand:
- Lumex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumex | |
| LED Colours | Yellow | |
| Package Type | 1613 (0605) | |
| Mounting Type | Surface Mount | |
| Number of LEDs | 1 | |
| Forward Voltage | 2.6 V | |
| Luminous Intensity | 14 mcd | |
| Viewing Angle | 160 ° | |
| Lens Shape | Rectangle | |
| Dominant Wavelength | 585 nm | |
| Lens Colour | White | |
| Forward Current | 150mA | |
| Lens Finish | Diffused | |
| Dimensions | 1.6 x 0.8 x 0.6mm | |
| Select all | ||
|---|---|---|
Brand Lumex | ||
LED Colours Yellow | ||
Package Type 1613 (0605) | ||
Mounting Type Surface Mount | ||
Number of LEDs 1 | ||
Forward Voltage 2.6 V | ||
Luminous Intensity 14 mcd | ||
Viewing Angle 160 ° | ||
Lens Shape Rectangle | ||
Dominant Wavelength 585 nm | ||
Lens Colour White | ||
Forward Current 150mA | ||
Lens Finish Diffused | ||
Dimensions 1.6 x 0.8 x 0.6mm | ||
- COO (Country of Origin):
- TW
OctoLED Range 0603
The Lumex range of OctoLEDs have been professionally designed to combine SMT convenience with through-hole T-5 mm LED size features. The economical and highly reliable series of LEDs and accessories features High Brightness Chip Technology and is available in a wide range of colours and lens finishes.
High Brightness Chip Technology
Wide range of colours and lens finishes
Easy installation
LED size 0603
Wide range of colours and lens finishes
Easy installation
LED size 0603
Visible Light LEDs, Lumex
