ams OSRAM2.15 V Yellow LED PLCC 4 SMD, Power TOPLED Lens LY E65F-CBDB-35-1
- RS Stock No.:
- 876-8912
- Mfr. Part No.:
- LY E65F-CBDB-35-1
- Brand:
- ams OSRAM
1800 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 50)
£0.193
(exc. VAT)
£0.232
(inc. VAT)
| Units | Per unit | Per Pack* |
| 50 - 200 | £0.193 | £9.65 |
| 250 - 450 | £0.176 | £8.80 |
| 500 - 950 | £0.163 | £8.15 |
| 1000 - 1950 | £0.158 | £7.90 |
| 2000 + | £0.143 | £7.15 |
| *price indicative | ||
- RS Stock No.:
- 876-8912
- Mfr. Part No.:
- LY E65F-CBDB-35-1
- Brand:
- ams OSRAM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
OSRAM Power TOPLED Dome Lens Series LEDs
The Power TOPLED with lens series of LEDs, from Osram Opto Semiconductors, features focused radiation in a compact SMT package. Providing high brightness in the beam direction, the Power TOPLED with lens LED is suitable for applications including: traffic lights, backlighting (for switches, keys and displays), micro incandescent lamp replacement, indoor displays, signal and symbol illumination, automotive lighting or marker lights.

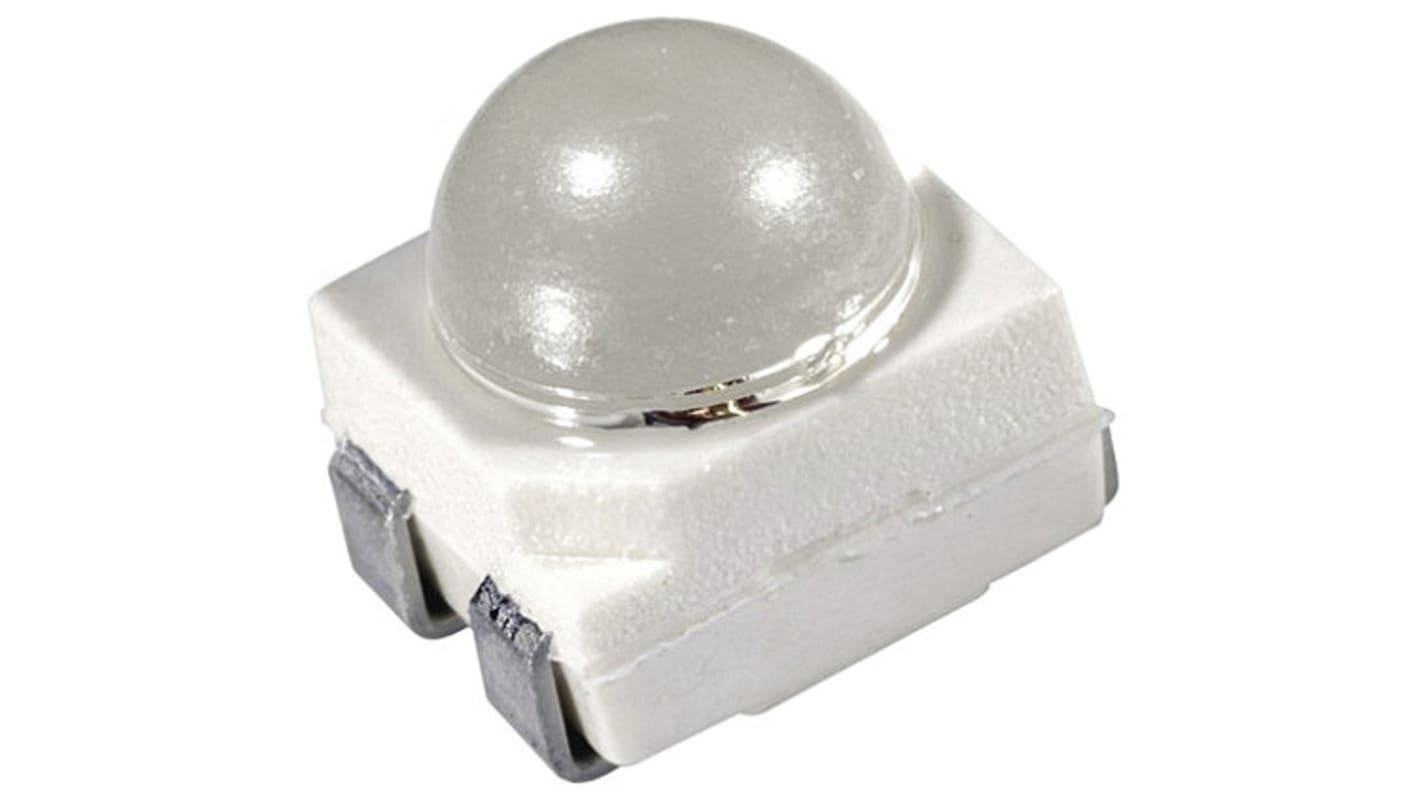

SMT white PLCC-4 package with a dome lens
Focused viewing angle
Focused viewing angle
Note
Amber LEDs – Originally designed for use in automotive brake-light applications, OSRAM amber LEDs can appear red due to a high dominant wavelength value. Refer to a dominant wavelength colour chart to find your chosen LED colour.
Specifications
Attribute | Value |
|---|---|
| LED Colours | Yellow |
| Package Type | PLCC 4 |
| Mounting Type | Surface Mount |
| Number of LEDs | 1 |
| Forward Voltage | 2.15 V |
| Luminous Intensity | 3.6 → 7.1 cd |
| Number of Pins | 4 |
| Viewing Angle | 60 (Horizontal) °, 60 (Vertical) ° |
| Luminous Flux | 4000 → 6400 mlm |
| Lens Shape | Dome |
| Dominant Wavelength | 590 nm |
| Series | Power TOPLED Lens |
| Lens Finish | Clear |
| Forward Current | 70mA |
| Dimensions | 3 x 3.4 x 3.5mm |
