Kingbright2.7 V Yellow LED 5630 SMD, KA-5630SYL2Z4S
- RS Stock No.:
- 871-4656
- Mfr. Part No.:
- KA-5630SYL2Z4S
- Brand:
- Kingbright
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 871-4656
- Mfr. Part No.:
- KA-5630SYL2Z4S
- Brand:
- Kingbright
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kingbright | |
| LED Colours | Yellow | |
| Package Type | 5630 | |
| Mounting Type | Surface Mount | |
| Number of LEDs | 1 | |
| Forward Voltage | 2.7 V | |
| Number of Pins | 2 | |
| Viewing Angle | 120 ° | |
| Luminous Flux | 14 lm | |
| Lens Shape | Rectangle | |
| Dominant Wavelength | 590 nm | |
| Lens Colour | Clear | |
| Dimensions | 5.6 x 3 x 0.77mm | |
Select all | ||
|---|---|---|
Brand Kingbright | ||
LED Colours Yellow | ||
Package Type 5630 | ||
Mounting Type Surface Mount | ||
Number of LEDs 1 | ||
Forward Voltage 2.7 V | ||
Number of Pins 2 | ||
Viewing Angle 120 ° | ||
Luminous Flux 14 lm | ||
Lens Shape Rectangle | ||
Dominant Wavelength 590 nm | ||
Lens Colour Clear | ||
Dimensions 5.6 x 3 x 0.77mm | ||
- COO (Country of Origin):
- CN

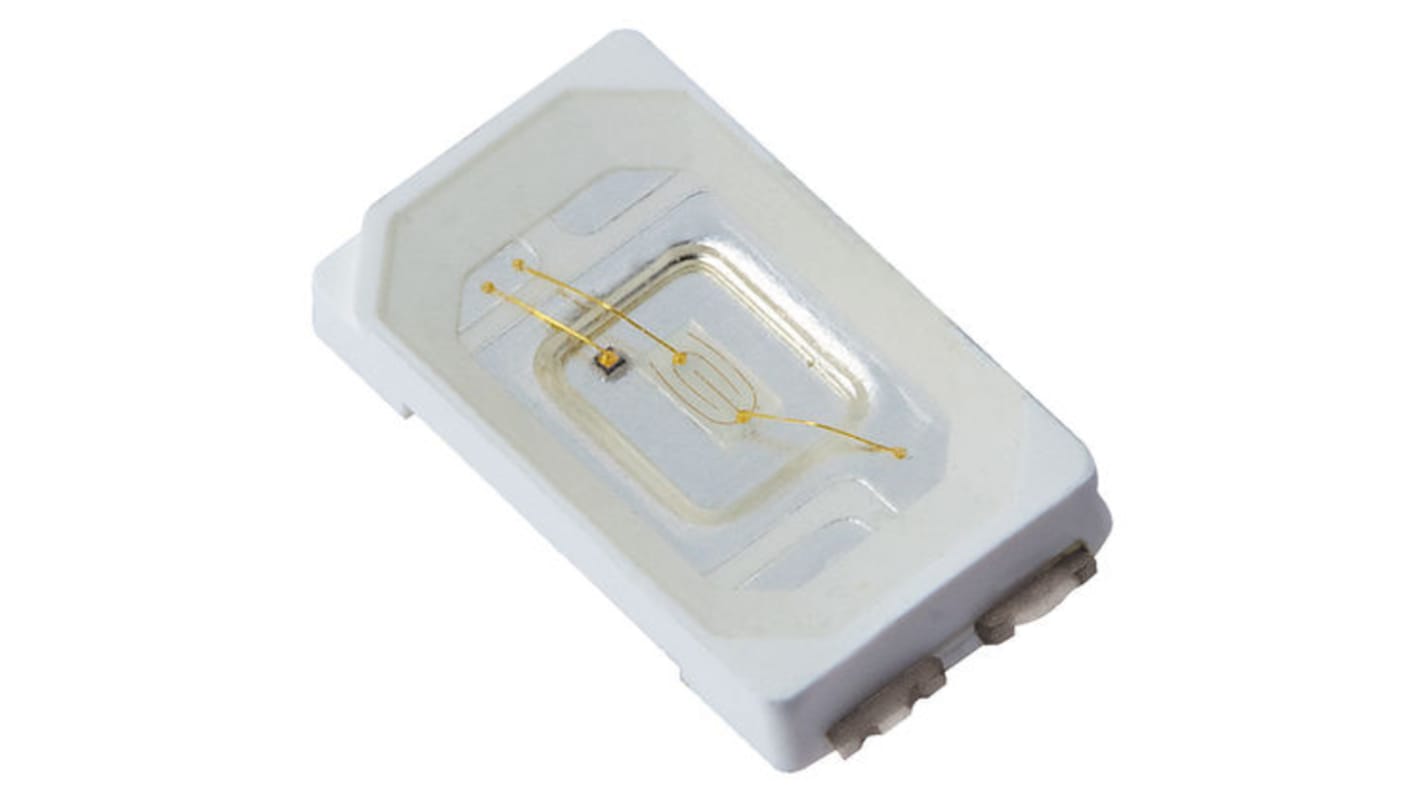

Kingbright SMT Chip LED 5630 Package
This family of LEDs, from Kingbright, are in a surface mount (SMD) package with a 5630 footprint. Available in a variety of single colour options, the 5630 LEDs have a water clear lens and a viewing angle of 120°. Suitable applications for the 5630 LEDs include; LCD TV and monitor backlighting, architectural lighting and decorative lighting.
Features of the 5630 LEDs:
Dimensions: 5.6 x 3 x 0.77 mm
Surface mounted (SMD)
White package
Silicone resin
Water clear lens
Operating temperature: -40°C to +85°C
Dimensions: 5.6 x 3 x 0.77 mm
Surface mounted (SMD)
White package
Silicone resin
Water clear lens
Operating temperature: -40°C to +85°C
Visible Light LEDs, Kingbright
