Kingbright 2.5 V Green, Red LED 2012 Surface Mount Multi-Colour LED KPHBM-2012SURKCGKC
- RS Stock No.:
- 860-9006
- Distrelec Article No.:
- 304-37-854
- Mfr. Part No.:
- KPHBM-2012SURKCGKC
- Brand:
- Kingbright
Bulk discount available
Subtotal (1 pack of 25 units)*
£6.375
(exc. VAT)
£7.65
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 450 unit(s) ready to ship
- Plus 175 unit(s) shipping from 24 April 2026
- Plus 2,000 unit(s) shipping from 24 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 75 | £0.255 | £6.38 |
| 100 - 475 | £0.154 | £3.85 |
| 500 - 1975 | £0.128 | £3.20 |
| 2000 - 2975 | £0.115 | £2.88 |
| 3000 + | £0.112 | £2.80 |
*price indicative
- RS Stock No.:
- 860-9006
- Distrelec Article No.:
- 304-37-854
- Mfr. Part No.:
- KPHBM-2012SURKCGKC
- Brand:
- Kingbright
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kingbright | |
| LED Colour | Green, Red | |
| Product Type | LED | |
| Maximum Forward Current | 30mA | |
| Package Type | 2012 | |
| Mount Type | Surface Mount | |
| Packaging | Tape & Reel | |
| Number of LEDs | 2 | |
| Forward Voltage | 2.5V | |
| Maximum Power Dissipation | 75mW | |
| Number of Pins | 4 | |
| Viewing Angle | 120 ° | |
| Lens Dimensions | 5 x 2.8 mm | |
| Lens Shape | Rectangular | |
| Standards/Approvals | RoHS | |
| Dominant Wavelength | 570, 630nm | |
| Lens Colour | Clear | |
| Series | Multi-Colour LED | |
| Lens Finish | Clear | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Kingbright | ||
LED Colour Green, Red | ||
Product Type LED | ||
Maximum Forward Current 30mA | ||
Package Type 2012 | ||
Mount Type Surface Mount | ||
Packaging Tape & Reel | ||
Number of LEDs 2 | ||
Forward Voltage 2.5V | ||
Maximum Power Dissipation 75mW | ||
Number of Pins 4 | ||
Viewing Angle 120 ° | ||
Lens Dimensions 5 x 2.8 mm | ||
Lens Shape Rectangular | ||
Standards/Approvals RoHS | ||
Dominant Wavelength 570, 630nm | ||
Lens Colour Clear | ||
Series Multi-Colour LED | ||
Lens Finish Clear | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

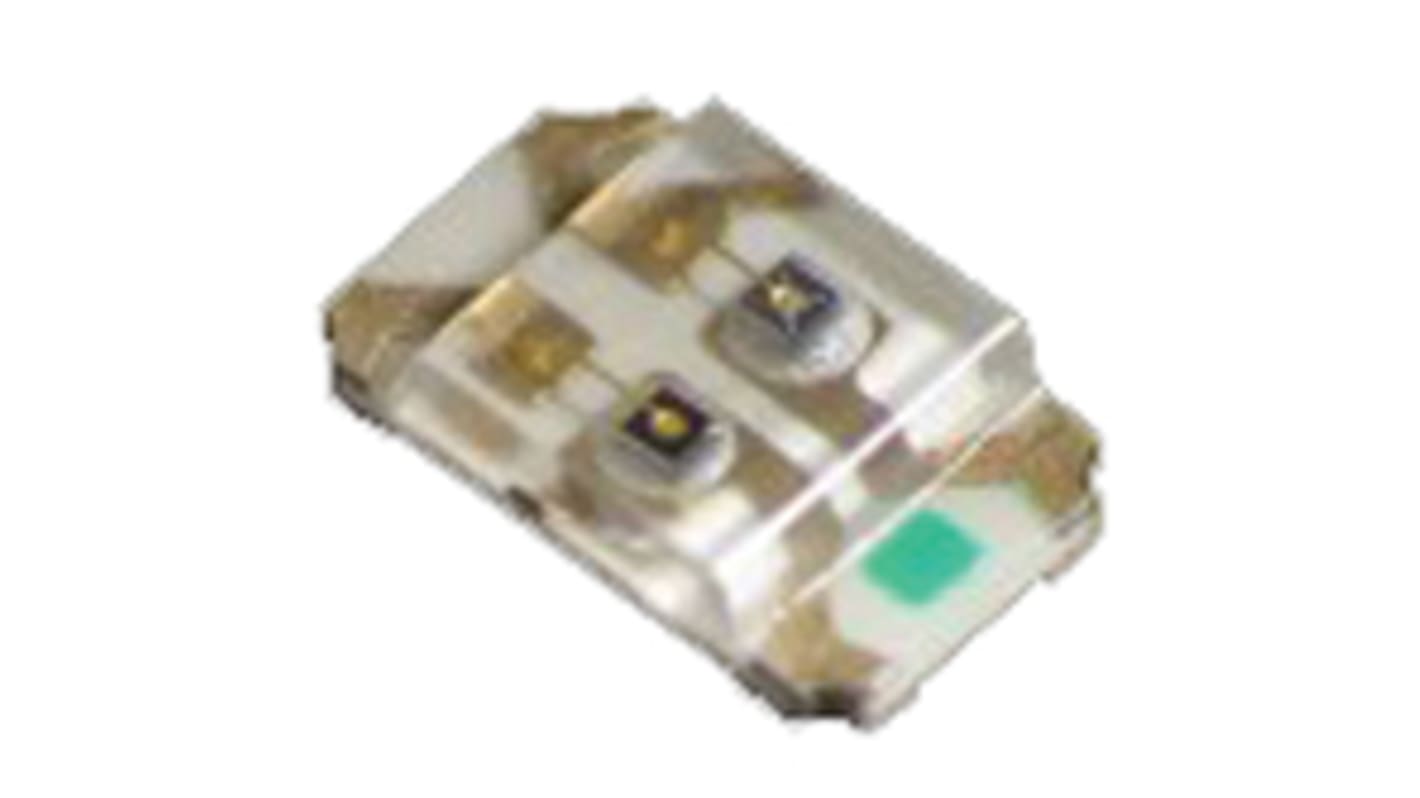

Kingbright SMT Chip LED 2012 (0805) Package
The Chip LED 0805 LEDs, from Kingbright, are in the industry standard 0805 package. These surface mount (SMT) LEDs measure 2.0 x 1.25 x 0.4 mm. Offering low power consumption and a wide viewing angle, the Chip LED 0805 series are Ideal for backlight and indicator applications. There are also various colours and lens types available in the Chip LED 0805 range.
Features of the 2012 family of LEDs:
Standard 0805 package
Dimensions: 2 x 1.25 mm
Single-colour and bi-colour options
