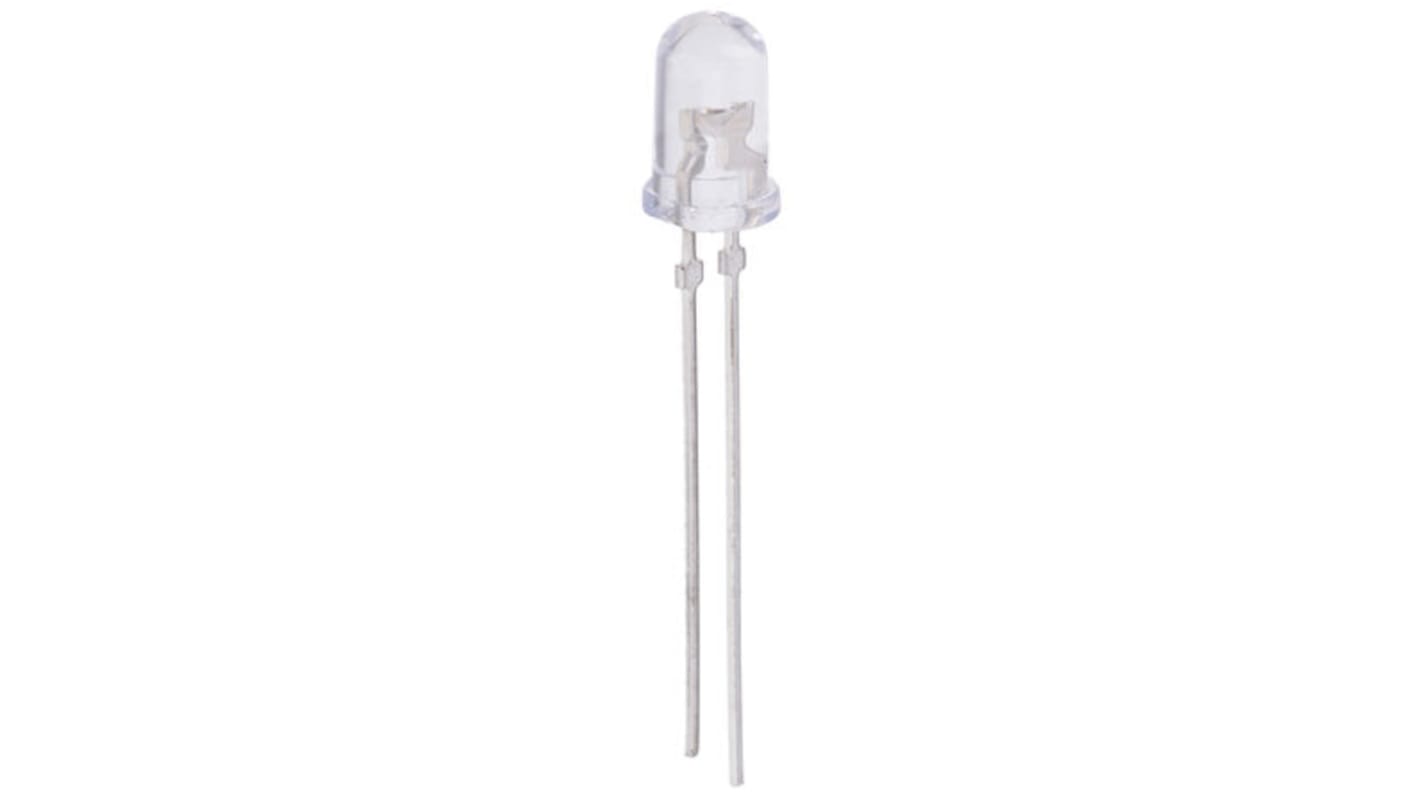

Wurth Elektronik2.6 V Yellow LED 5mm Through Hole, WL-TMRW 151053YS04500
- RS Stock No.:
- 815-4354
- Distrelec Article No.:
- 304-09-975
- Mfr. Part No.:
- 151053YS04500
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 pack of 50 units)*
£9.05
(exc. VAT)
£10.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 700 unit(s) shipping from 28 October 2025
- Plus 500 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 - 200 | £0.181 | £9.05 |
250 - 450 | £0.126 | £6.30 |
500 - 1200 | £0.113 | £5.65 |
1250 - 2450 | £0.108 | £5.40 |
2500 + | £0.105 | £5.25 |
*price indicative
- RS Stock No.:
- 815-4354
- Distrelec Article No.:
- 304-09-975
- Mfr. Part No.:
- 151053YS04500
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
LED Colours | Yellow | |
Package Type | 5mm (T-1 3/4) | |
Mounting Type | Through Hole | |
Number of LEDs | 1 | |
Forward Voltage | 2.6 V | |
Luminous Intensity | 1.5 cd | |
Number of Pins | 2 | |
Viewing Angle | 45 ° | |
Lens Shape | Round | |
Dominant Wavelength | 590 nm | |
Dimensions | 4.9 (Dia.) x 8.7mm | |
Forward Current | 30mA | |
Series | WL-TMRW | |
Lens Finish | Clear | |
Lens Colour | Clear | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
LED Colours Yellow | ||
Package Type 5mm (T-1 3/4) | ||
Mounting Type Through Hole | ||
Number of LEDs 1 | ||
Forward Voltage 2.6 V | ||
Luminous Intensity 1.5 cd | ||
Number of Pins 2 | ||
Viewing Angle 45 ° | ||
Lens Shape Round | ||
Dominant Wavelength 590 nm | ||
Dimensions 4.9 (Dia.) x 8.7mm | ||
Forward Current 30mA | ||
Series WL-TMRW | ||
Lens Finish Clear | ||
Lens Colour Clear | ||
- COO (Country of Origin):
- CN
WL-TMRW THT Round LEDs - 5 mm
WL-TMRW THT series 5mm through-hole round LEDs with water-clear encapsulation. These LEDs feature very high luminous efficacy and high reliability with a long operating life. They have standard 2.54mm (0.1in) pitch leads which incorporate PCB stand-offs to facilitate easier installation and assembly. These LEDs produce no UV or IR radiation and are suitable for a wide variety of applications where through-hole devices are required.
Visible Light LEDs, Wurth
A wide range of visible light LEDs from Würth Elektronik available in both SMT and through-hole packages. Both water-clear and diffused types are available and all devices feature high luminous efficacy with low energy consumption. The LEDs are suitable for a very wide range of applications which include backlighting for LCDs, indicator and switch illumination, indoor and outdoor message displays, industrial control system and traffic signals, marker lights, directional indicators and decorative lighting.
