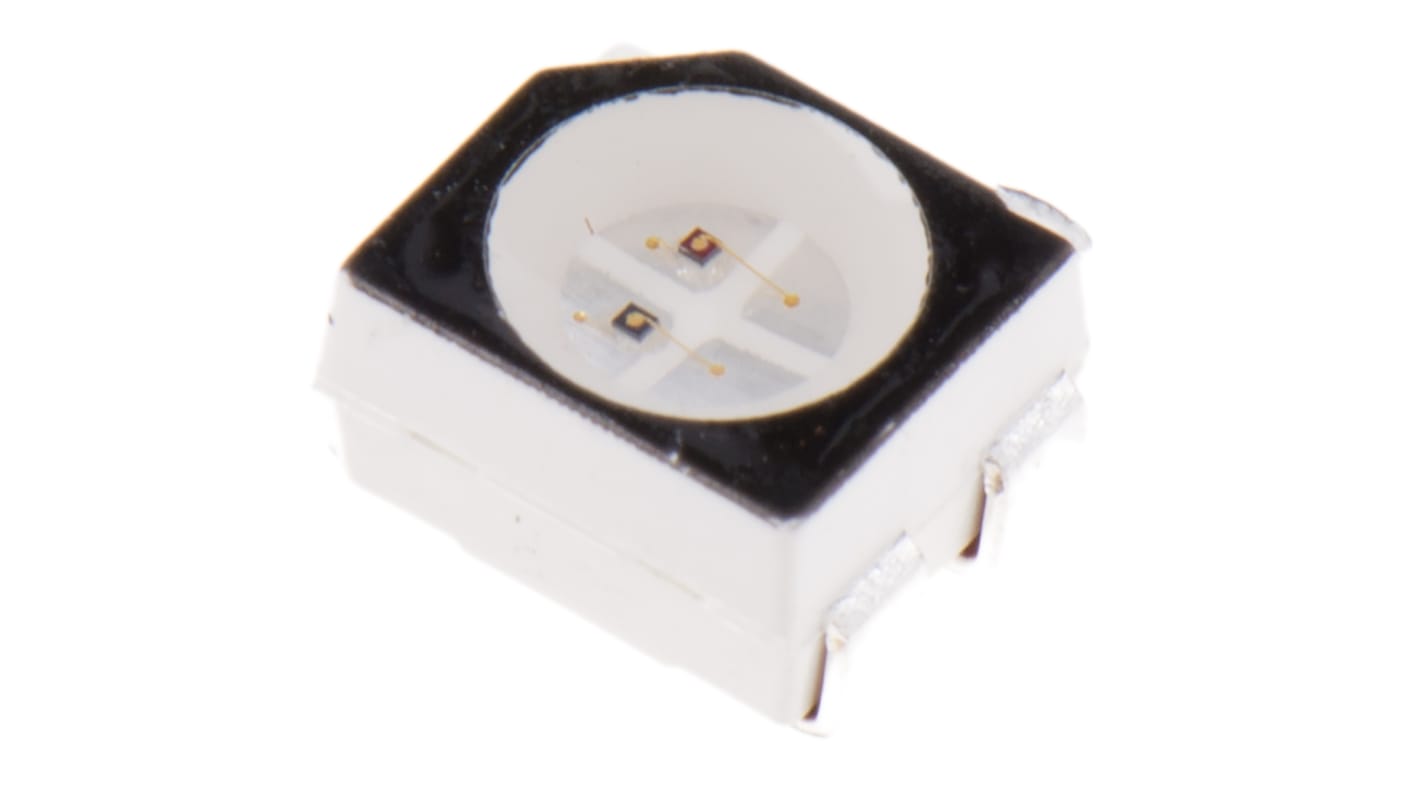

Wurth Elektronik2 V Green & Red LED 3528 (1411) SMD, WL-SBTW 150141RV73100
- RS Stock No.:
- 815-4335
- Mfr. Part No.:
- 150141RV73100
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 pack of 50 units)*
£13.75
(exc. VAT)
£16.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,150 unit(s) ready to ship
- Plus 2,150 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
50 - 200 | £0.275 | £13.75 |
250 - 450 | £0.187 | £9.35 |
500 - 950 | £0.167 | £8.35 |
1000 - 1950 | £0.158 | £7.90 |
2000 + | £0.15 | £7.50 |
*price indicative
- RS Stock No.:
- 815-4335
- Mfr. Part No.:
- 150141RV73100
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
LED Colours | Green, Red | |
Package Type | 3528 (1411) | |
Mounting Type | Surface Mount | |
Number of LEDs | 2 | |
Forward Voltage | 2 V | |
Luminous Intensity | 60 mcd, 250 mcd | |
Number of Pins | 4 | |
Viewing Angle | 120 ° | |
Lens Shape | Round | |
Dominant Wavelength | 572 / 625 nm | |
Lens Finish | Clear | |
Lens Colour | Clear | |
Forward Current | 30mA | |
Dimensions | 3.2 x 2.8 x 1.75mm | |
Series | WL-SBTW | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
LED Colours Green, Red | ||
Package Type 3528 (1411) | ||
Mounting Type Surface Mount | ||
Number of LEDs 2 | ||
Forward Voltage 2 V | ||
Luminous Intensity 60 mcd, 250 mcd | ||
Number of Pins 4 | ||
Viewing Angle 120 ° | ||
Lens Shape Round | ||
Dominant Wavelength 572 / 625 nm | ||
Lens Finish Clear | ||
Lens Colour Clear | ||
Forward Current 30mA | ||
Dimensions 3.2 x 2.8 x 1.75mm | ||
Series WL-SBTW | ||
- COO (Country of Origin):
- CN
WL-SBTW SMD Bi-Colour LEDs
The WL-SBTW series from Wurth Elektronik are a family of bi-colour LEDs in a surface mounted (SMD) package. They have an industry standard 3528 footprint and a waterclear lens. A black face offers a higher on-off contrast for the WL-SBTW LEDs.
The WL-SBTW have been designed for applications such as flat back lighting for LCDs, decorative lighting, switches and symbols.
The WL-SBTW have been designed for applications such as flat back lighting for LCDs, decorative lighting, switches and symbols.
Features of the WL-SBTW bi-colour LEDs:
SMD 3528 compact package
Black face
Low energy consumption
High reliability
SMD 3528 compact package
Black face
Low energy consumption
High reliability
Visible Light LEDs, Wurth
A wide range of visible light LEDs from Würth Elektronik available in both SMT and through-hole packages. Both water-clear and diffused types are available and all devices feature high luminous efficacy with low energy consumption. The LEDs are suitable for a very wide range of applications which include backlighting for LCDs, indicator and switch illumination, indoor and outdoor message displays, industrial control system and traffic signals, marker lights, directional indicators and decorative lighting.
