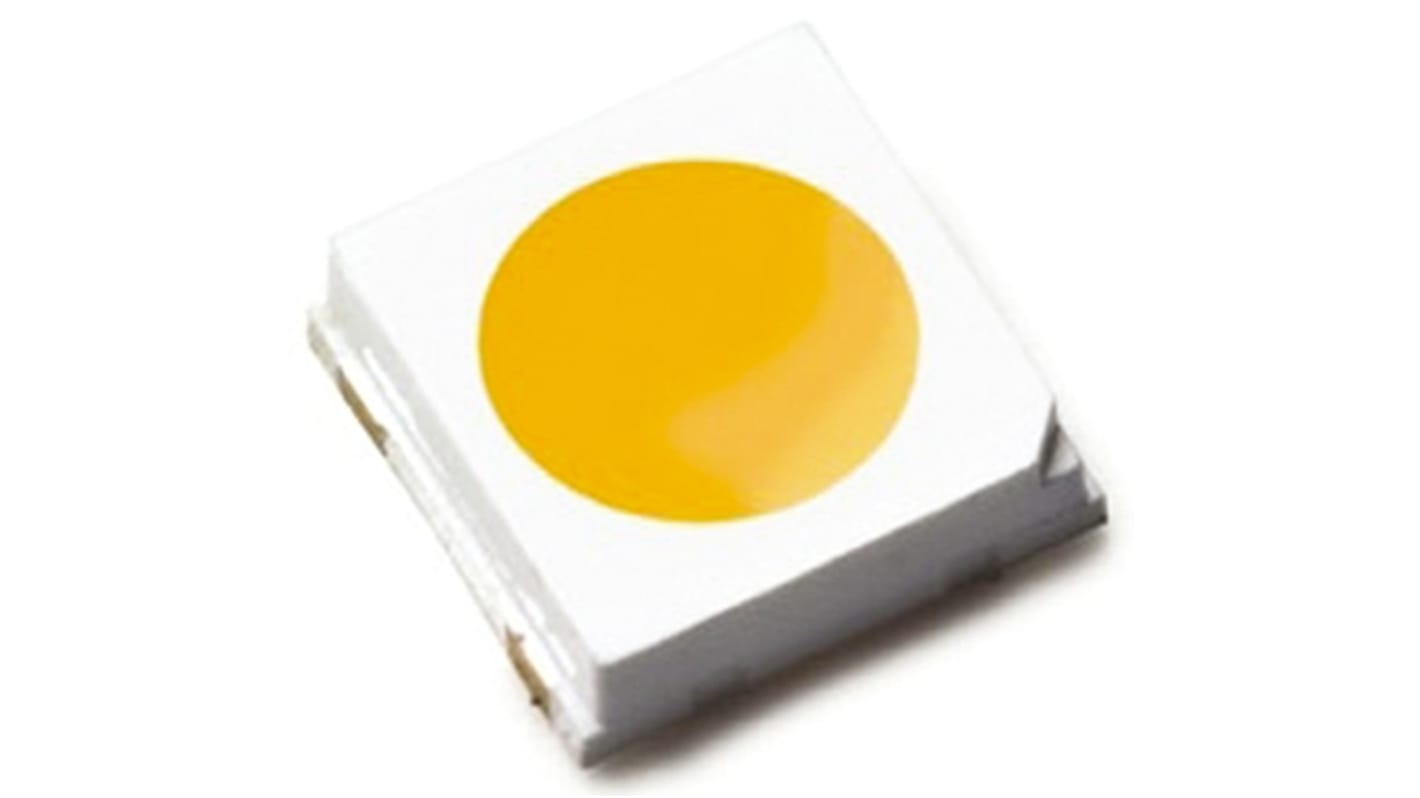

Lumileds26 V White LED 3535 SMD, LUXEON 3535 HV L135-30800BHV00001

View all LEDs
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
814-0901
Mfr. Part No.:
L135-30800BHV00001
Brand:
Lumileds
Find similar products by selecting one or more attributes.
Select all

Brand

Lumileds

LED Colours

White

Package Type

3535

Mounting Type

Surface Mount

Number of LEDs

1

Forward Voltage

26 V

Number of Pins

2

Luminous Flux

55 lm

Lens Shape

Round

Colour Temperature

3000K

Series

LUXEON 3535 HV

Dimensions

3.5 x 3.4 x 0.8mm

COO (Country of Origin):
MY

Lumileds LUXEON 3535 HV Series LEDs


The LUXEON 3535 HV Mid-Power series of LEDs, from Lumileds, are in the 3535 package. With both 24V and 48V configurations available, the LUXEON 3535 HV series are high voltage, lower current LED devices. The 3535 SMD package enables interchangeability with other 3535 products and their high light output per package enables a reduction in LED count. The LUXEON 3535 HV LED’s high voltage architecture allows for freedom of design when an LED project requires less bulky, more efficient drivers and an ultimate cost down on the LED systems. Ideal applications for the LUXEON 3535 HV include downlights, indoor area lighting and lamps.

Features of the LUXEON 3535 HV LEDs:
High voltage
High light output
Lower current, more efficient and cost effective driver
Leads to better light extraction
Allows reduction in LED count
Enables tight color control
1/9th micro color binning
