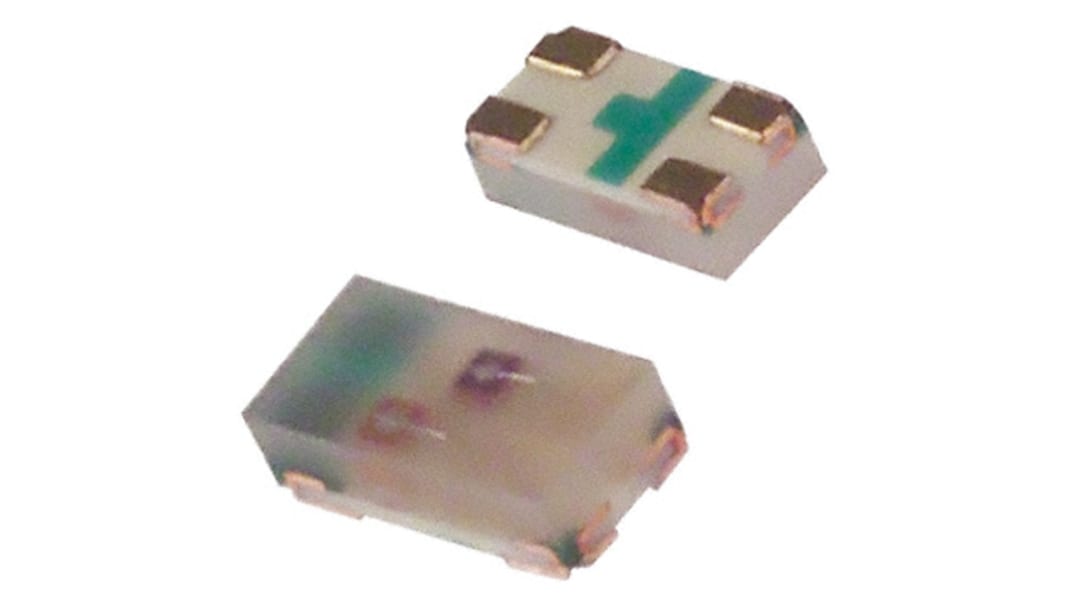

Broadcom1.9 V, 3.4 V Green & Red LED 1608 (0603) SMD, HSMF-C163
- RS Stock No.:
- 813-4946
- Mfr. Part No.:
- HSMF-C163
- Brand:
- Broadcom
Bulk discount available
Subtotal (1 tape of 8 units)*
£14.64
(exc. VAT)
£17.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 8 - 32 | £1.83 | £14.64 |
| 40 - 152 | £1.305 | £10.44 |
| 160 - 392 | £1.013 | £8.10 |
| 400 - 792 | £0.959 | £7.67 |
| 800 + | £0.873 | £6.98 |
*price indicative
- RS Stock No.:
- 813-4946
- Mfr. Part No.:
- HSMF-C163
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| LED Colours | Green, Red | |
| Package Type | 1608 (0603) | |
| Mounting Type | Surface Mount | |
| Number of LEDs | 2 | |
| Forward Voltage | 1.9 V, 3.4 V | |
| Luminous Intensity | 45 mcd | |
| Number of Pins | 4 | |
| Viewing Angle | 120 ° | |
| Lens Shape | Rectangle | |
| Dominant Wavelength | 525 nm | |
| Dimensions | 1.6 x 0.8 x 0.5mm | |
| Lens Colour | Clear | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
LED Colours Green, Red | ||
Package Type 1608 (0603) | ||
Mounting Type Surface Mount | ||
Number of LEDs 2 | ||
Forward Voltage 1.9 V, 3.4 V | ||
Luminous Intensity 45 mcd | ||
Number of Pins 4 | ||
Viewing Angle 120 ° | ||
Lens Shape Rectangle | ||
Dominant Wavelength 525 nm | ||
Dimensions 1.6 x 0.8 x 0.5mm | ||
Lens Colour Clear | ||
Avago HSMF-C16x Series ChipLEDs
The HSMF-C16x series, from Avago Technologies, are a series of miniature bi-colour surface mount (SMT) ChipLEDs. The HSMF-C16x LEDs are in the compact 0603 footprint to allow for a high density of components on a board. Available in a wide variety of colour options, these LEDs have diffused optics. Suitable applications for the HSMF-C16x series include; keypad backlighting, symbol indicator, LCD backlighting, pushbutton backlighting and front panel indicators.
Features of the HSMF-C16x LEDs:
- Small package: 1.6 x 0.8 x 0.5 mm (0603 package)
- Operating temperature: -40°C to +85°C
- Compatible with reflow soldering
- Small package: 1.6 x 0.8 x 0.5 mm (0603 package)
- Operating temperature: -40°C to +85°C
- Compatible with reflow soldering
Visible Light LEDs, Avago Technologies
