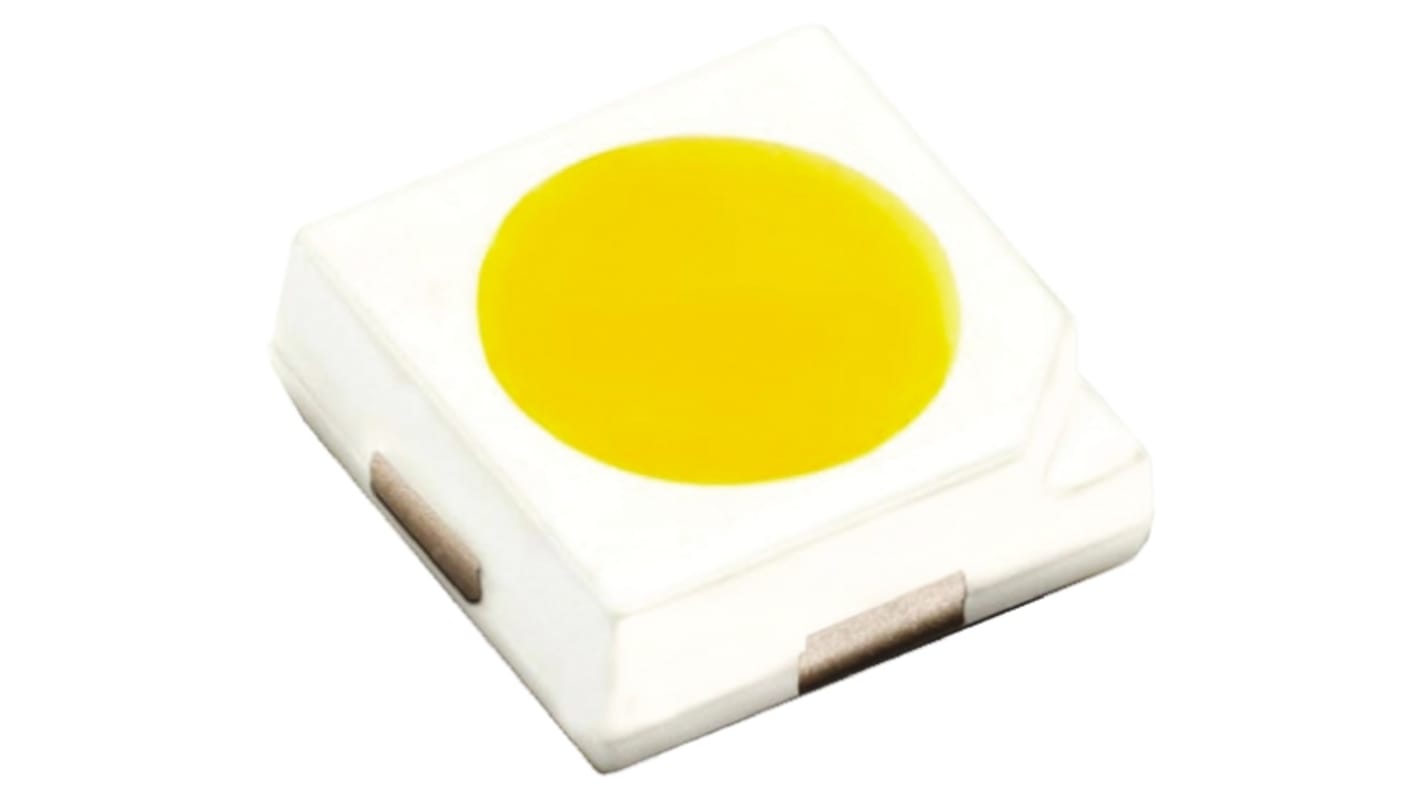

Lumileds3.1 V White LED 3535 SMD, LUXEON 3535 MXM8-PW50
- RS Stock No.:
- 768-2457
- Mfr. Part No.:
- MXM8-PW50
- Brand:
- Lumileds
Available to back order for despatch when stock is available
Price Each (In a Pack of 10)
£0.30
(exc. VAT)
£0.36
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £0.30 | £3.00 |
| 50 - 90 | £0.211 | £2.11 |
| 100 - 490 | £0.207 | £2.07 |
| 500 - 990 | £0.205 | £2.05 |
| 1000 + | £0.203 | £2.03 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 768-2457
- Mfr. Part No.:
- MXM8-PW50
- Brand:
- Lumileds
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Lumileds LUXEON 3535 Series LEDs
The LUXEON Mid-Power 3535 series of LEDs, from Lumileds, provides excellent performance and reliability ideal for both consumer and professional distributed LED lighting applications. The LUXEON 3535 LED incorporates tried and tested technology, allowing these light sources to meet the most demanding of colour quality requirements, with the CCT, CRI and R9 is specified for each LED emitter. Featuring the small 3535 (3.5x3.5mm) form factor the LUXEON 3535 LED can be closely packed to acheive higher lumen density.
Suitable applications for the LUXEON 3535 series include; lamps, indoor area lighting, downlights and architecture.
Suitable applications for the LUXEON 3535 series include; lamps, indoor area lighting, downlights and architecture.
Features of the LUXEON 3535 LEDs:
High efficacy for sustainable design
Compact 3535 package 3.5x3.5mm form factor
Minimum CRI (Colour Rendering Index): 80 typical: 82
ANSI compliant 1/6th colour binning.
Wide viewing angle: 115°
High efficacy for sustainable design
Compact 3535 package 3.5x3.5mm form factor
Minimum CRI (Colour Rendering Index): 80 typical: 82
ANSI compliant 1/6th colour binning.
Wide viewing angle: 115°
Visible Light LEDs, Lumileds
Specifications
Attribute | Value |
|---|---|
| LED Colours | White |
| Package Type | 3535 |
| Mounting Type | Surface Mount |
| Number of LEDs | 1 |
| Forward Voltage | 3.1 V |
| Number of Pins | 2 |
| Viewing Angle | 115 ° |
| Luminous Flux | 35 lm |
| Lens Shape | Round |
| Dimensions | 3.5 x 3.5 x 1.2mm |
| Series | LUXEON 3535 |
| Colour Temperature | 5000K |
