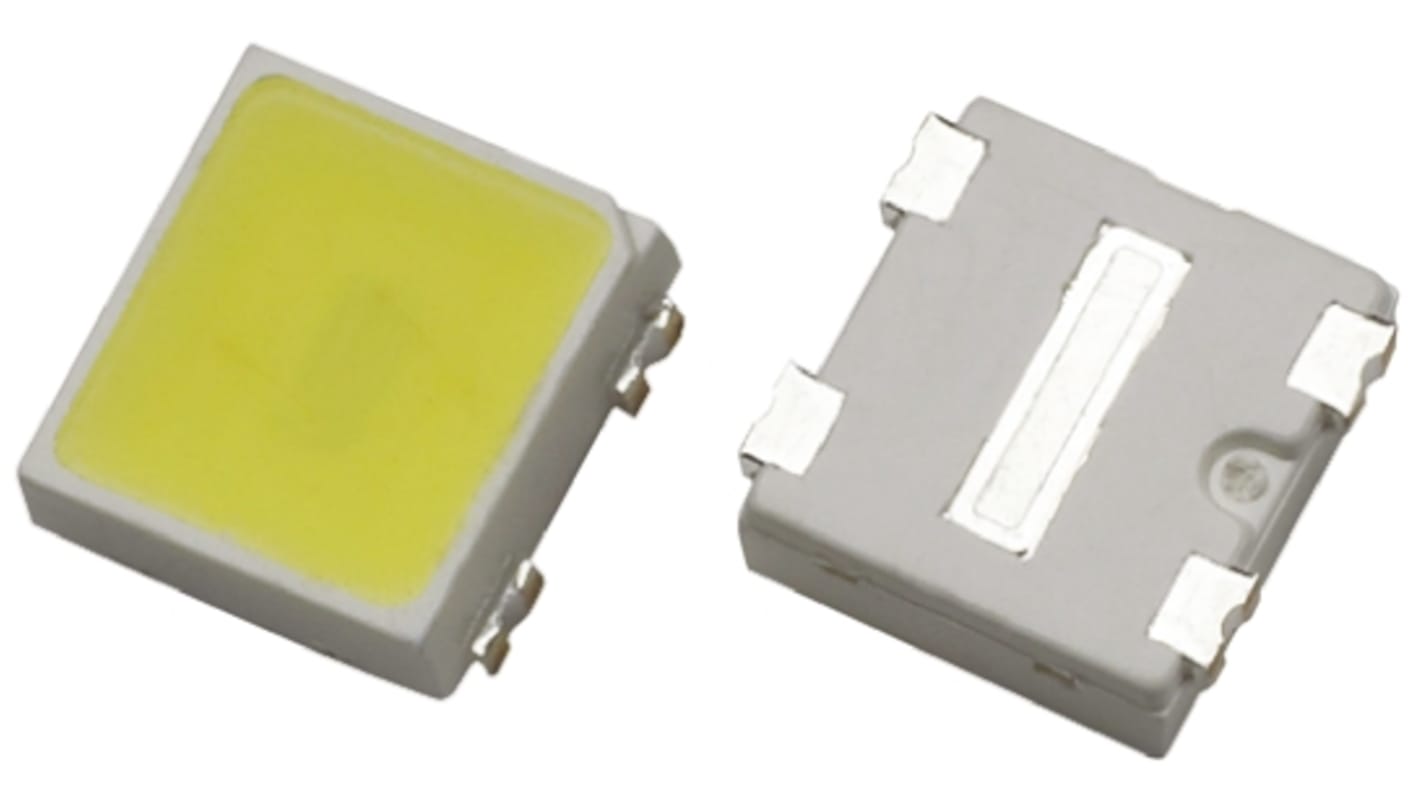

Broadcom3.2 V White LED PLCC 4 SMD, ASMT-UWBG-NACF8
- RS Stock No.:
- 758-9137
- Mfr. Part No.:
- ASMT-UWBG-NACF8
- Brand:
- Broadcom
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 758-9137
- Mfr. Part No.:
- ASMT-UWBG-NACF8
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| LED Colours | White | |
| Package Type | PLCC 4 | |
| Mounting Type | Surface Mount | |
| Number of LEDs | 1 | |
| Forward Voltage | 3.2 V | |
| Radiant Flux | 250mW | |
| Number of Pins | 4 | |
| Viewing Angle | 120 ° | |
| Luminous Flux | 19 lm | |
| Lens Shape | Square | |
| Colour Temperature | 4000K | |
| Dimensions | 3.5 x 3.2 x 1.1mm | |
Select all | ||
|---|---|---|
Brand Broadcom | ||
LED Colours White | ||
Package Type PLCC 4 | ||
Mounting Type Surface Mount | ||
Number of LEDs 1 | ||
Forward Voltage 3.2 V | ||
Radiant Flux 250mW | ||
Number of Pins 4 | ||
Viewing Angle 120 ° | ||
Luminous Flux 19 lm | ||
Lens Shape Square | ||
Colour Temperature 4000K | ||
Dimensions 3.5 x 3.2 x 1.1mm | ||
Avago ASMT-UYBG/ASMT-UYBH/ASMT-UYBJ Series LEDs
The ASMT-UYBG / ASMT-UYBH / ASMT-UYBJ series, from Avago Technologies, are 0.25W warm white Power LEDs. They come in the standard PLCC-4 surface mount (SMT) package. The ASMT-UYBx LEDs use InGaN chip technology and can be driven at a high current due to the LED package design. They are also able to efficiently dissipate heat from the package.
The ASMT-UYBx LEDs produce a high light output with improved flux performance. Designed for higher reliability and better performance, the ASMT-UYBx series are able to operate under a wide variety of environmental conditions. Suitable applications for the ASMT-UYBx LEDs include; fluorescent replacement, under cabinet lighting, panel lights and retail display lighting.
The ASMT-UYBx LEDs produce a high light output with improved flux performance. Designed for higher reliability and better performance, the ASMT-UYBx series are able to operate under a wide variety of environmental conditions. Suitable applications for the ASMT-UYBx LEDs include; fluorescent replacement, under cabinet lighting, panel lights and retail display lighting.
Features of the ASMT-UYBG / ASMT-UYBH / ASMT-UYBJ LEDs:
- 2700K to 3500K CCT
- ANSI bin
- Wide viewing angle: 120°
- High reliability
- Silicone resin encapsulation
- 2700K to 3500K CCT
- ANSI bin
- Wide viewing angle: 120°
- High reliability
- Silicone resin encapsulation
Visible Light LEDs, Avago Technologies
