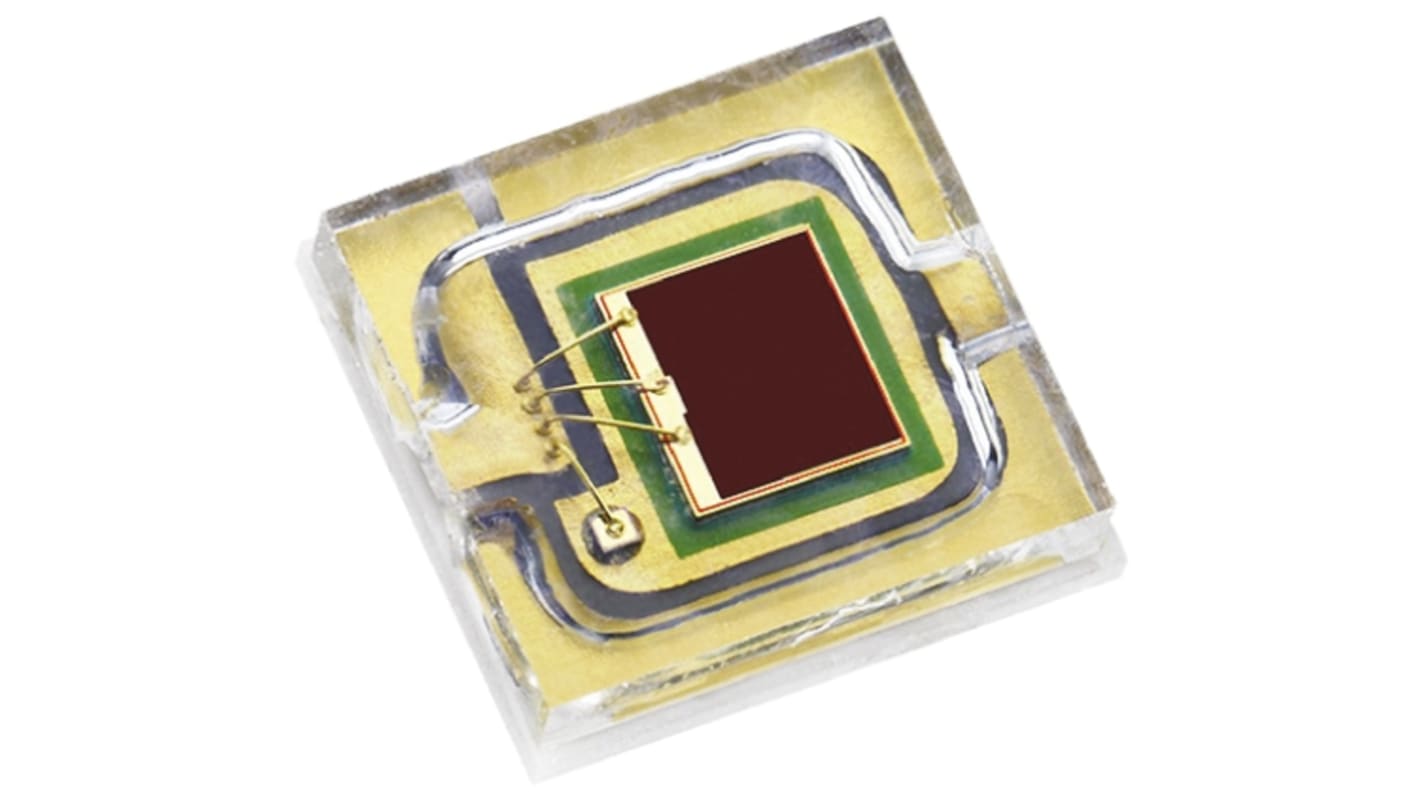

ams OSRAM2.5 V Amber LED SMD, OSTAR Projection Compact LE A Q9WP
- RS Stock No.:
- 717-3830
- Mfr. Part No.:
- LE A Q9WP
- Brand:
- ams OSRAM
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 717-3830
- Mfr. Part No.:
- LE A Q9WP
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ams OSRAM | |
LED Colours | Amber | |
Mounting Type | Surface Mount | |
Forward Voltage | 2.5 V | |
Viewing Angle | 120 ° | |
Luminous Flux | 97 lm | |
Lens Shape | Round | |
Dominant Wavelength | 617 nm | |
Series | OSTAR Projection Compact | |
Dimensions | 3.5 x 3.75 x 1.2mm | |
Lens Colour | Clear | |
Select all | ||
---|---|---|
Brand ams OSRAM | ||
LED Colours Amber | ||
Mounting Type Surface Mount | ||
Forward Voltage 2.5 V | ||
Viewing Angle 120 ° | ||
Luminous Flux 97 lm | ||
Lens Shape Round | ||
Dominant Wavelength 617 nm | ||
Series OSTAR Projection Compact | ||
Dimensions 3.5 x 3.75 x 1.2mm | ||
Lens Colour Clear | ||
- COO (Country of Origin):
- MY
OSRAM OSTAR Compact Series LEDs
OSRAM Opto Semiconductors OSTAR LED series have a variety of benefits with design flexibility for projection and lighting applications. The OSRAM OSTAR Compact has been developed to suit applications which require a high luminance output due to their pure surface emission. The OSTAR LEDs can be used for standard point-like LED lighting solutions and linear or two-dimensional designs can be produced with just a small number of the devices. Their multi-chip technology gives the OSRAM OSTAR LEDs a high brightness at the white point. With no moving parts, these devices deliver a wide colour range within a compact, robust package. The OSRAM OSTAR Compact LEDs also offer a long lifetime and a very low thermal resistance (Rth). Potential applications include Pico projectors, projection TVs, general lighting and effect lighting.
Fast switching times
Dimmable
Instant on/off function available
Adjustable colour temperature
Large colour range (>105 % NTSC)
Small form factor
Special optics can be adapted
Mercury-free, meets the latest environmental regulations
Dimmable
Instant on/off function available
Adjustable colour temperature
Large colour range (>105 % NTSC)
Small form factor
Special optics can be adapted
Mercury-free, meets the latest environmental regulations
Note
Amber LEDs – Originally designed for use in automotive brake-light applications, OSRAM amber LEDs can appear red due to a high dominant wavelength value. Refer to a dominant wavelength colour chart to find your chosen LED colour.
