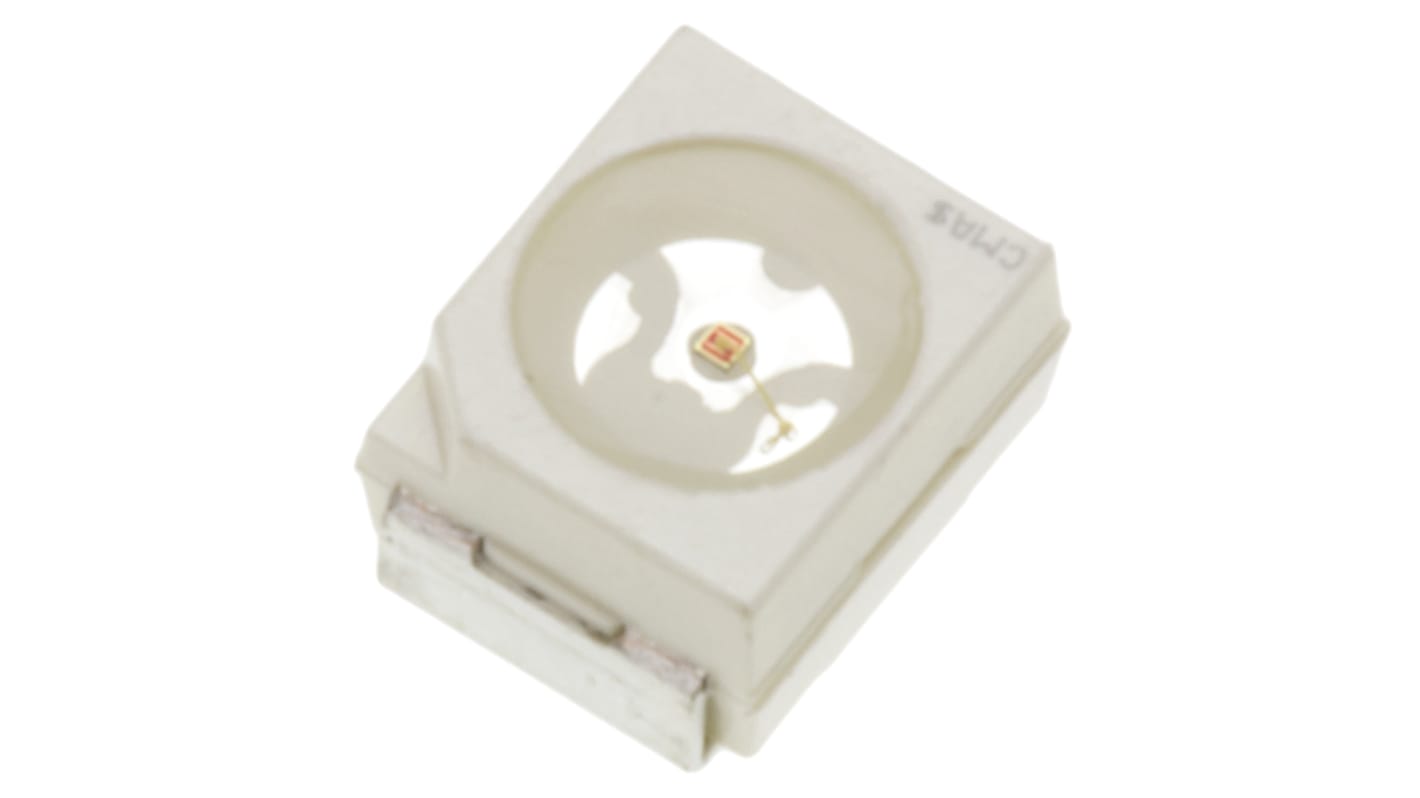

ams OSRAM2.2 V Yellow LED PLCC 2 SMD, TOPLED LY T67F-U1AA-36
- RS Stock No.:
- 708-0781
- Mfr. Part No.:
- LY T67F-U1AA-36
- Brand:
- ams OSRAM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 708-0781
- Mfr. Part No.:
- LY T67F-U1AA-36
- Brand:
- ams OSRAM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ams OSRAM | |
LED Colours | Yellow | |
Package Type | PLCC 2 | |
Mounting Type | Surface Mount | |
Number of LEDs | 1 | |
Forward Voltage | 2.2 V | |
Luminous Intensity | 925 mcd | |
Number of Pins | 2 | |
Viewing Angle | 120 ° | |
Luminous Flux | 2.65 lm | |
Lens Shape | Round | |
Dominant Wavelength | 590 nm | |
Series | TOPLED | |
Dimensions | 3.4 x 3 x 2.1mm | |
Lens Colour | Clear | |
Select all | ||
---|---|---|
Brand ams OSRAM | ||
LED Colours Yellow | ||
Package Type PLCC 2 | ||
Mounting Type Surface Mount | ||
Number of LEDs 1 | ||
Forward Voltage 2.2 V | ||
Luminous Intensity 925 mcd | ||
Number of Pins 2 | ||
Viewing Angle 120 ° | ||
Luminous Flux 2.65 lm | ||
Lens Shape Round | ||
Dominant Wavelength 590 nm | ||
Series TOPLED | ||
Dimensions 3.4 x 3 x 2.1mm | ||
Lens Colour Clear | ||
- COO (Country of Origin):
- CN
OSRAM TOPLED Series LEDs - Single Colour
The TOPLED series of LEDs, from Osram Opto Semiconductors, are compact and highly reliable LED devices. As Osrams first SMT LED with an integrated reflector, the TOPLED family of LEDs are ideal for applications such as: indoor/outdoor displays, display backlighting, signal and symbol illumination. The TOPLEDs are also a suitable replacement for micro incandescent bulbs or floor marker lighting.
3.4 x 3.0 x 2.1 mm PLCC-2 package size
Viewing angle 120°
Viewing angle 120°
Note
Amber LEDs – Originally designed for use in automotive brake-light applications, OSRAM amber LEDs can appear red due to a high dominant wavelength value. Refer to a dominant wavelength colour chart to find your chosen LED colour.
