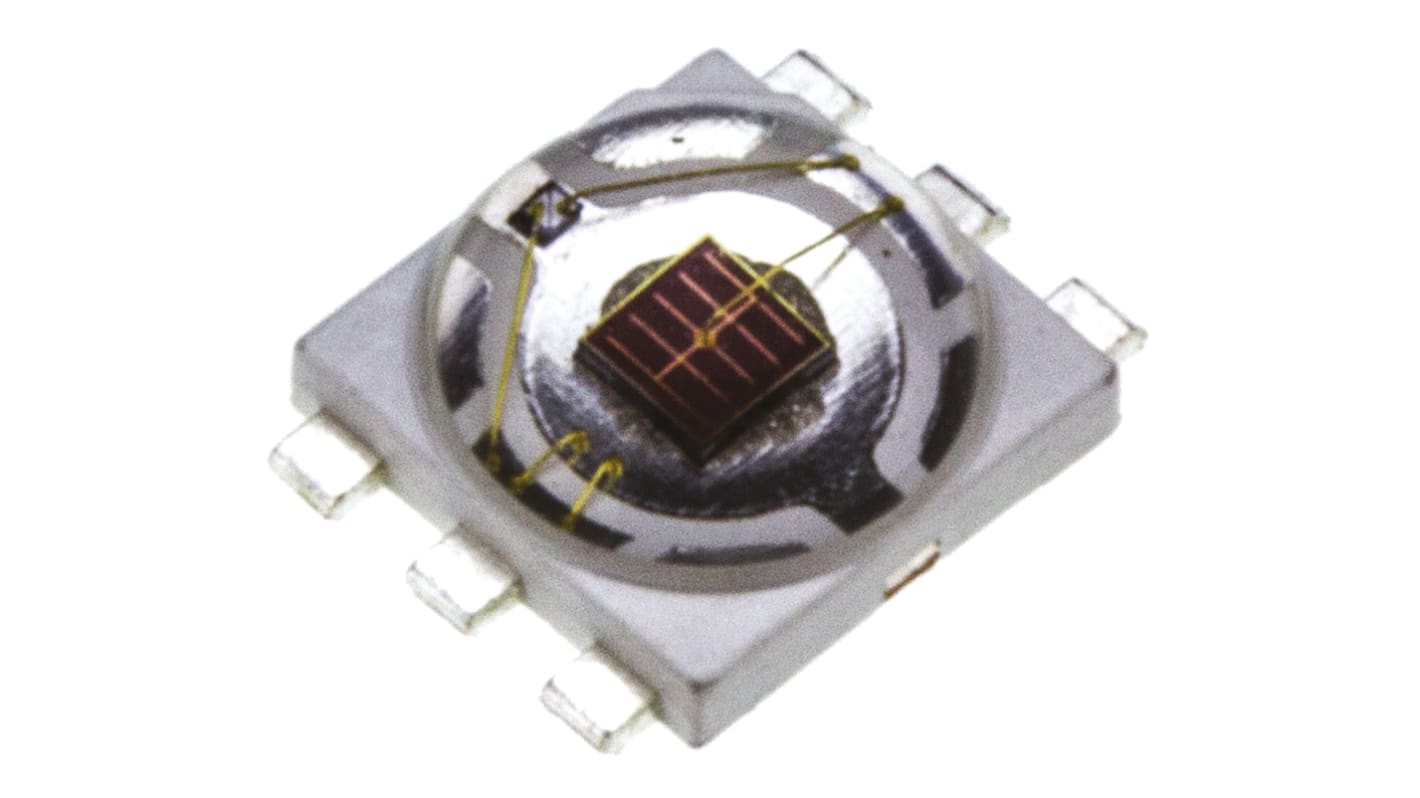

Broadcom2.1 V Red LED SMD, ASMT-JR30-ARS01
- RS Stock No.:
- 693-5864
- Mfr. Part No.:
- ASMT-JR30-ARS01
- Brand:
- Broadcom
Discontinued
- RS Stock No.:
- 693-5864
- Mfr. Part No.:
- ASMT-JR30-ARS01
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| LED Colours | Red | |
| Mounting Type | Surface Mount | |
| Number of LEDs | 1 | |
| Forward Voltage | 2.1 V | |
| Radiant Flux | 3000mW | |
| Number of Pins | 6 | |
| Viewing Angle | 165 ° | |
| Luminous Flux | 104 lm | |
| Lens Shape | Round | |
| Dominant Wavelength | 625 nm | |
| Dimensions | 4 x 4 x 1.85mm | |
| Lens Colour | Clear | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
LED Colours Red | ||
Mounting Type Surface Mount | ||
Number of LEDs 1 | ||
Forward Voltage 2.1 V | ||
Radiant Flux 3000mW | ||
Number of Pins 6 | ||
Viewing Angle 165 ° | ||
Luminous Flux 104 lm | ||
Lens Shape Round | ||
Dominant Wavelength 625 nm | ||
Dimensions 4 x 4 x 1.85mm | ||
Lens Colour Clear | ||
- COO (Country of Origin):
- TW
Avago ASMT-Jx3x Series LEDs
The Avago 3W Mini Power SMT LED is a high performance energy efficient light source with high thermal capacity and capable of handling high drive currents. The low-profile package design and ultra-small footprint makes it suitable for a wide variety of applications, especially where available space and height is a limited.
The ASMT-Jx31 & ASMT-Jx32 types have an electrically isolated metal slug; in the ASMT-Jx33 series the slug is electrically connected to the LED anode.
The White Mini Power LED has a good CRI (Colour Rendering Index) and is available in a range of correlated colour temperatures from 2700K to 10000K.
The ASMT-Jx31 & ASMT-Jx32 types have an electrically isolated metal slug; in the ASMT-Jx33 series the slug is electrically connected to the LED anode.
The White Mini Power LED has a good CRI (Colour Rendering Index) and is available in a range of correlated colour temperatures from 2700K to 10000K.
Small footprint with symmetrical outline and low profile
High current operation
High reliability with long operating life
Wide viewing angle > 140°
Silicone encapsulated MSL 1 product
Non-ESD sensitive (threshold > 16kV)
High current operation
High reliability with long operating life
Wide viewing angle > 140°
Silicone encapsulated MSL 1 product
Non-ESD sensitive (threshold > 16kV)
The Broadcom 3W Mini Power LED Light Source is a high performance energy efficient device which can handle high thermal and high driving current. Option with electrically isolated metal slug is also available. The White Mini Power LED is available in the range of colour temperature from 2700K to 10000K. The low profile package design and ultra small footprint is suitable for a wide variety of applications especially where space and height is a constraint.
Available in full colours, i.e. Red, Red Orange, Amber, Green, Blue, Royal Blue, Cool White, Neutral White and Warm White
Small footprint and low profile
Symmetrical outline
Energy efficient
Direct heat transfer from metal slug to mother board
Compatible with reflow soldering process
High current operation
Long operation life
Wide viewing angle
Silicone encapsulation
Non-ESD sensitive (threshold >16kV)
MSL 1 products
Small footprint and low profile
Symmetrical outline
Energy efficient
Direct heat transfer from metal slug to mother board
Compatible with reflow soldering process
High current operation
Long operation life
Wide viewing angle
Silicone encapsulation
Non-ESD sensitive (threshold >16kV)
MSL 1 products
Visible Light LEDs, Avago Technologies
