- RS Stock No.:
- 691-0405
- Mfr. Part No.:
- HSMF-C114
- Brand:
- Broadcom
Available to back order for despatch 06/08/2024
Added
Price Each (In a Pack of 2)
£1.46
(exc. VAT)
£1.75
(inc. VAT)
Units | Per unit | Per Pack* |
2 - 8 | £1.46 | £2.92 |
10 - 38 | £0.975 | £1.95 |
40 - 98 | £0.865 | £1.73 |
100 - 198 | £0.84 | £1.68 |
200 + | £0.82 | £1.64 |
*price indicative |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 691-0405
- Mfr. Part No.:
- HSMF-C114
- Brand:
- Broadcom
Technical Reference
Legislation and Compliance
Product Details

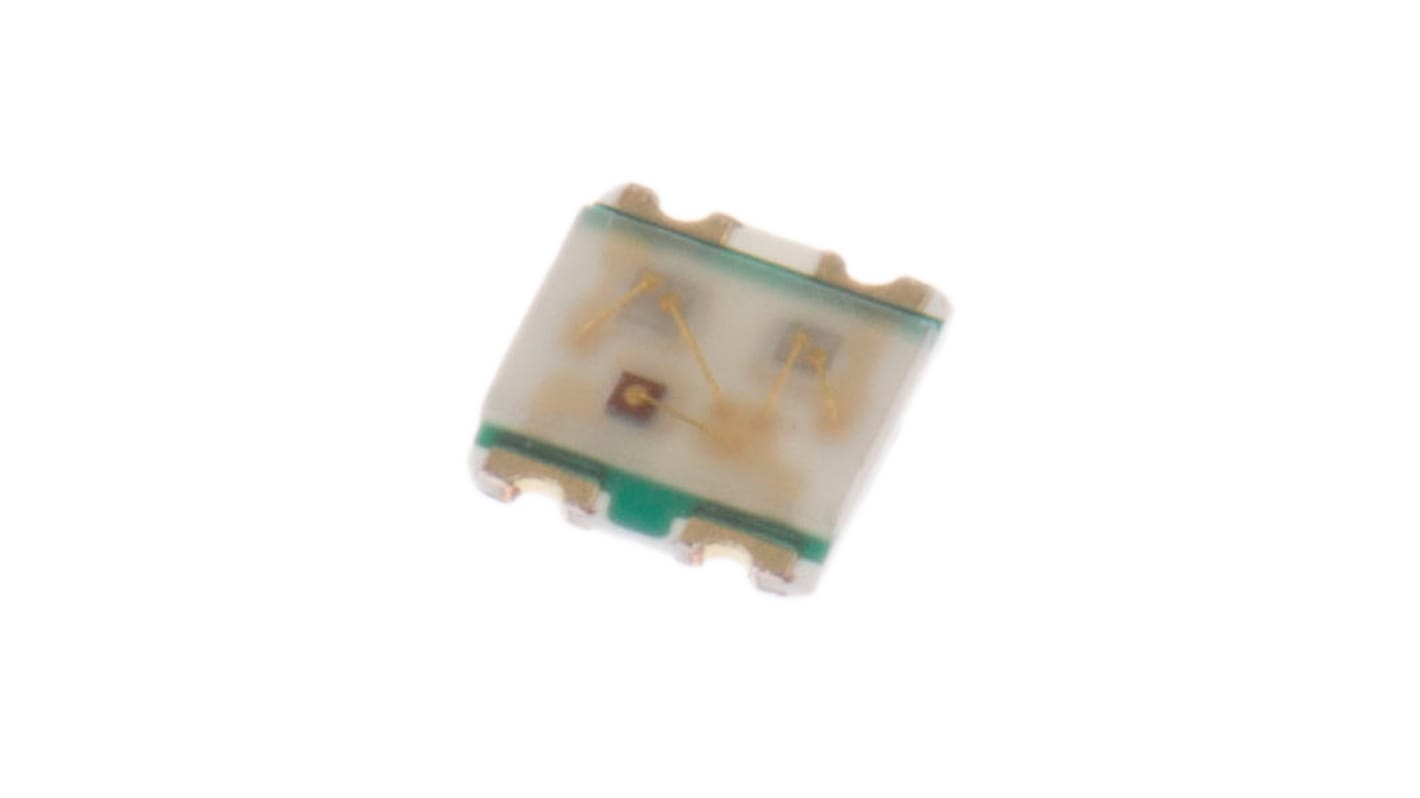

Avago HSMF-C113/4/5/8 Series LEDs
The HSMF-C113/4/5/8 series, from Avago Technologies, are right angle tri-colour ChipLEDs. This family of LEDs are designed in a compact, right angle package containing 3 dies. With the option of any colour combination from mixing the 3 primary colours. This allows the user to creat a wide variety of colours to suit all applications and product themes.
Due to the small package size and low profile, the HSMF-C113/4/5/8 LEDs are ideal for back-lighting, status indication and front panel illumination applications. Other suitable applications include office automation, home appliances and industrial equipment.
Due to the small package size and low profile, the HSMF-C113/4/5/8 LEDs are ideal for back-lighting, status indication and front panel illumination applications. Other suitable applications include office automation, home appliances and industrial equipment.
Features of the HSMF-C113/4/5/8 LEDs:
- Three dies in one small package
- Red/green/blue colour combination
- Common anode
- Diffused optics
- Compatible with reflow soldering
- Low profile package suitable for backlighting applications
- Untinted, diffused
- Three dies in one small package
- Red/green/blue colour combination
- Common anode
- Diffused optics
- Compatible with reflow soldering
- Low profile package suitable for backlighting applications
- Untinted, diffused
Visible Light LEDs, Avago Technologies
Specifications
Attribute | Value |
---|---|
LED Colours | RGB |
Package Type | 1615 |
Mounting Type | Surface Mount |
Number of LEDs | 3 |
Forward Voltage | 1.9 V, 3.4 V |
Luminous Intensity | 70 mcd, 85 mcd |
Number of Pins | 4 |
Viewing Angle | 145/145/100 ° |
Lens Shape | Rectangle |
Dominant Wavelength | 470 / 525 / 626 nm |
Dimensions | 1.6 x 1.5 x 0.35mm |
Lens Colour | Clear |
