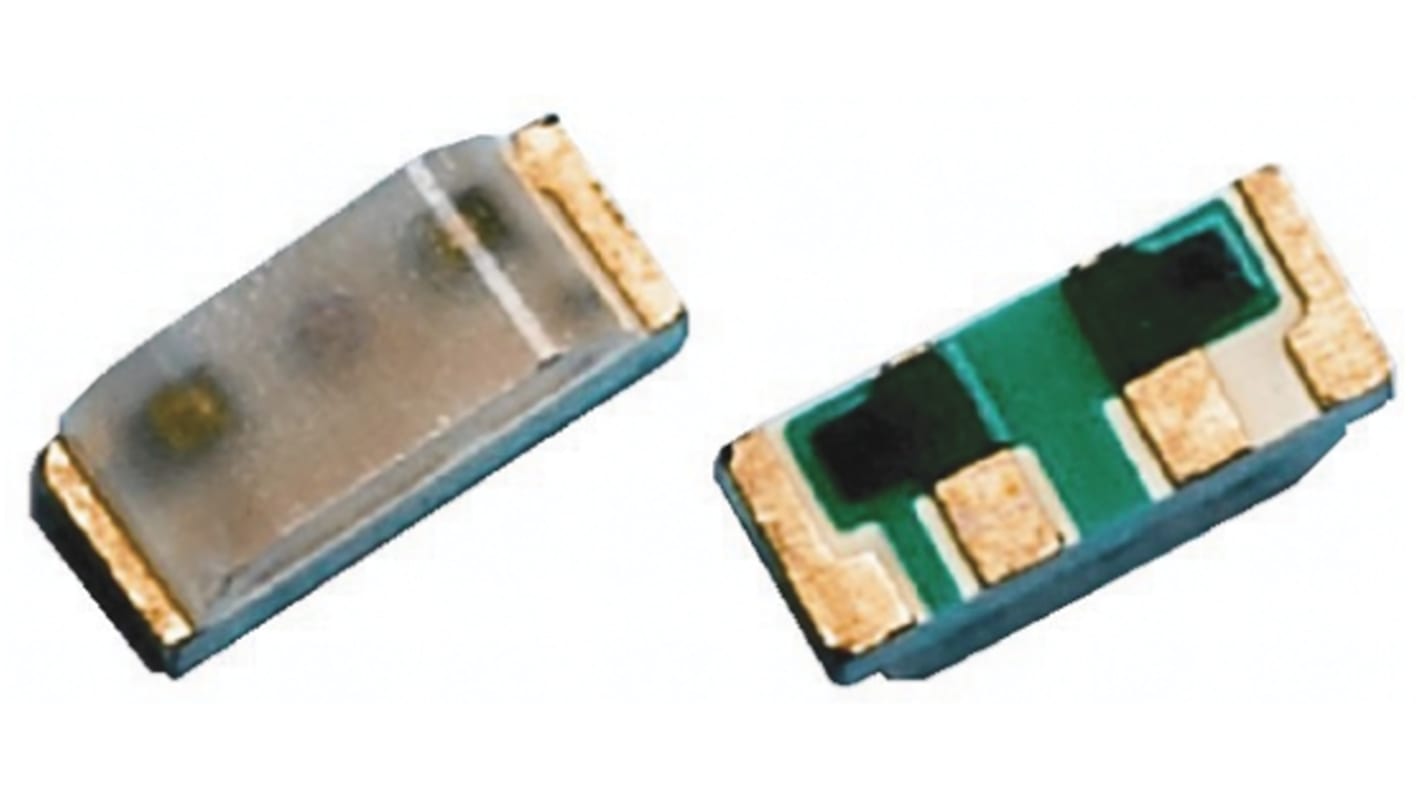

Broadcom 1.9 V RGB LED Chip LED Surface Mount HSMF-C11 HSMF-C113

View all LEDs
Bulk discount available

Subtotal (1 pack of 2 units)*

£2.20

(exc. VAT)

£2.64

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 4 unit(s) shipping from 23 April 2026
  • Plus 9,000 unit(s) shipping from 21 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
2 - 18£1.10£2.20
20 - 98£0.73£1.46
100 - 198£0.56£1.12
200 - 998£0.53£1.06
1000 +£0.415£0.83

*price indicative

Packaging Options:
RS Stock No.:
691-0401
Mfr. Part No.:
HSMF-C113
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

LED Colour

RGB

Product Type

LED

Package Type

Chip LED

Maximum Forward Current

20mA

Packaging

Tape & Reel

Mount Type

Surface Mount

Number of LEDs

3

Maximum Power Dissipation

52mW

Forward Voltage

1.9V

Number of Pins

4

Viewing Angle

125 °, 120 °

Lens Dimensions

2.5 x 1.0 x 1.0 mm

Lens Shape

Rectangular

Standards/Approvals

No

Dominant Wavelength

470, 572, 626nm

Lens Colour

Clear

Lens Finish

Clear

Series

HSMF-C11

Automotive Standard

No

Avago HSMF-C113/4/5/8 Series LEDs


The HSMF-C113/4/5/8 series, from Avago Technologies, are right angle tri-colour ChipLEDs. This family of LEDs are designed in a compact, right angle package containing 3 dies. With the option of any colour combination from mixing the 3 primary colours. This allows the user to creat a wide variety of colours to suit all applications and product themes.

Due to the small package size and low profile, the HSMF-C113/4/5/8 LEDs are Ideal for back-lighting, status indication and front panel illumination applications. Other suitable applications include office automation, home appliances and industrial equipment.

Features of the HSMF-C113/4/5/8 LEDs:

- Three dies in one small package

- Red/green/blue colour combination

- Common anode

- Diffused optics

- Compatible with reflow soldering

- Low profile package suitable for backlighting applications

- Untinted, diffused

Visible Light LEDs, Avago Technologies
