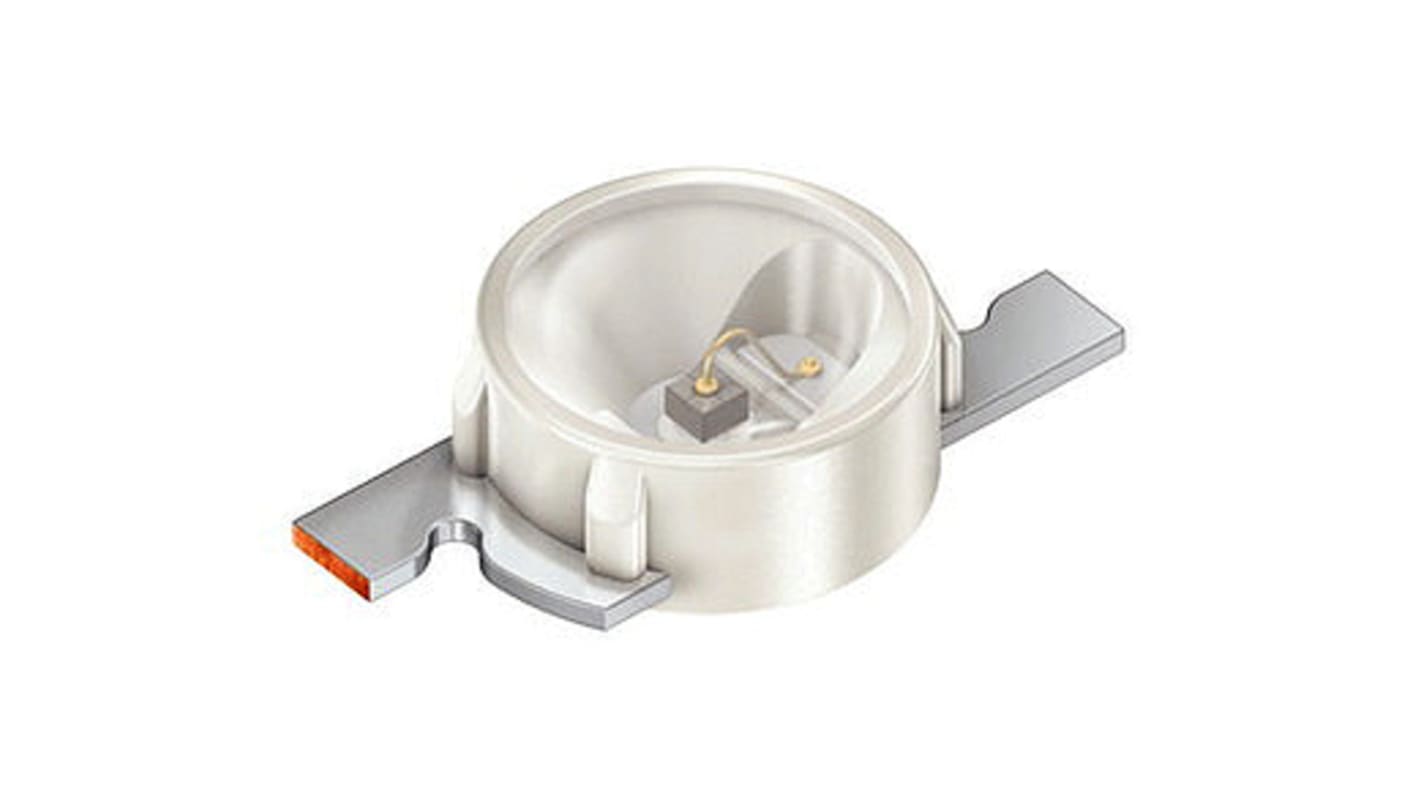

ams OSRAM 1.8 V Red, Red LED SMT Surface, Surface Mount PointLED LS P47K-H1J2-1

View all LEDs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Packaging Options:
RS Stock No.:
664-8100
Mfr. Part No.:
LS P47K-H1J2-1
Brand:
ams OSRAM
Find similar products by selecting one or more attributes.
Select all

Brand

ams OSRAM

Product Type

LED

LED Colour

Red, Red

Package Type

SMT

Maximum Forward Current

20mA

Mount Type

Surface, Surface Mount

Packaging

Tape & Reel

Forward Voltage

1.8V

Number of Pins

2

Viewing Angle

120 °, 120 °

Lens Dimensions

1.6 x 0.875 mm

LED Luminous Flux

0.02 lm

LED Luminosity

7.1 mcd

Lens Shape

Round

Dominant Wavelength

630 nm

Standards/Approvals

RoHS

Lens Colour

Clear, Clear

Lens Finish

Clear

Series

PointLED

Automotive Standard

No

COO (Country of Origin):
MY

OSRAM PointLED Series LEDs


The POINTLED series of LEDs, from Osram Opto Semiconductors, has a diameter of only 2mm so fits easily into a simple drill hole to sit flat against the PCB. Featuring a symmetrical radiation pattern, these versatile LEDs are ideal for applications such as: keypad illumination, display backlighting, coupling to light guides or automotive interior lighting.

2mm diameter package size

Viewing angle 120°

Reverse through-hole mount ideal for flat backlight (stock no. 654-6164 is Top mount)

Note

Amber LEDs – Originally designed for use in automotive brake-light applications, OSRAM amber LEDs can appear red due to a high dominant wavelength value. Refer to a dominant wavelength colour chart to find your chosen LED colour.
